acid fracturing truck for versatile oilfield operations

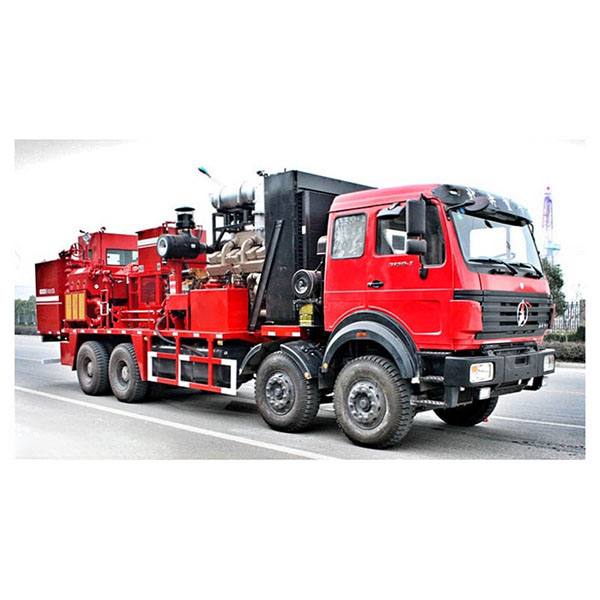

Acid Fracturing Truck Overview

An acid fracturing truck is a multifunctional mobile unit specially designed for surface operations in oilfields. It can efficiently perform a wide range of tasks, including acidizing, fracturing, well flushing, blockage removal, and fluid preparation. Built on a heavy-duty truck chassis and equipped with a high-performance diesel engine, the acid fracturing truck uses a hydraulic torque converter to drive a three-cylinder plunger pump, ensuring operational stability and high efficiency. The vehicle integrates multiple systems such as power, transmission, pumping, control, lubrication, hydraulics, cooling, and electrical systems, featuring a high degree of integration and convenient mobility. It is highly adaptable and suitable for various complex working conditions.

Main Features of Acid Fracturing Truck

• The BC105-1200 acid fracturing truck is equipped with a super high-power configuration, making it suitable for large-scale acid fracturing operations in oilfields, especially in areas with high operational intensity. It supports both single-unit and multi-unit collaborative operations, saving space on site and improving operational efficiency. The unit is also fitted with a dedicated acid metering tank and acid-resistant manifold, allowing it to operate for long periods in high-concentration acid environments.
• The BC70-265 acid fracturing truck features a highly efficient pumping system with a pressure capacity of up to 70 MPa, supporting high-pressure injection of various fluids. The vehicle is equipped with an independent control cabin, making it suitable for operation in extremely cold environments and improving operator comfort and safety. Dual remote and local control schemes make operation flexible and safe.
• The BC70-450 acid fracturing truck is outfitted with an upgraded power unit and pumping system, raising the pressure capacity to 105 MPa and is specially designed for high-pressure applications. It is compatible with multiple media, and its integrated control cabin ensures smooth operations during winter. Enhanced remote-control capabilities make it easy to manage from a distance in complex well sites.

Application Fields

Acid fracturing trucks are widely used for production enhancement, formation blockage removal, well flushing, sand washing, and high-pressure fluid pumping in oilfields. Whether for conventional oil wells, unconventional resources such as shale gas and tight oil, or remote well sites in harsh environments, acid fracturing trucks excel in efficiency, flexibility, and safety, making them essential equipment for oilfield operations.
