asa duplex sprocket 35B-2 with electrophoresis etc. optional

35B denotes the sprocket size, indicating the number of teeth and pitch circle diameter. Similar to other plate wheel sprockets, 35B sprockets are typically manufactured using durable materials such as steel or stainless steel for strength and long life under demanding conditions. Their primary use is to transfer rotary motion between the driving and driven components of a system.
-2 means duplex.

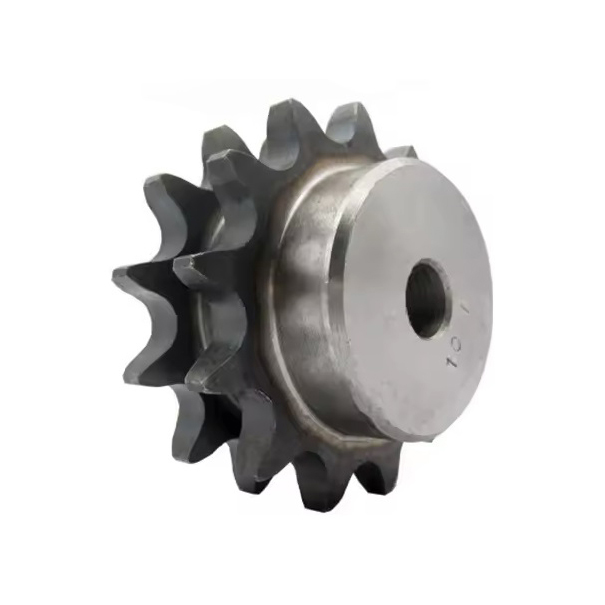

Model: asa duplex sprocket 35B-2
Material: C45, stainless steel, hardened steel, etc.
Surface treatment: Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc.

ASA 35-2 Sprocket is engineered to provide smooth and efficient power transmission, minimizing energy loss and boosting overall system performance. Built with high-quality materials and a precise tooth profile, this sprocket delivers long service life and reliable operation for a variety of industrial and mechanical applications.

Key Features

Efficient Power Transmission: Ensures optimal chain engagement for reduced friction, less noise, and smoother operation.
Long Service Life: High durability helps reduce frequent replacement and maintenance, saving time and costs.
High Quality Materials:
- C45 Steel: Balances strength with economy for general industrial use.
- Stainless Steel: Offers excellent corrosion resistance, ideal for harsh environments.
- Hardened Steel: Heat-treated for increased wear resistance and longevity.
Precise Tooth Profile: Guarantees excellent chain contact, reducing friction and wear while improving efficiency.
Customizable Dimensions: Tooth pitch, bore diameter, and overall dimensions can be tailored to specific industry requirements. Consult your manufacturer or supplier to ensure the best fit for your needs.

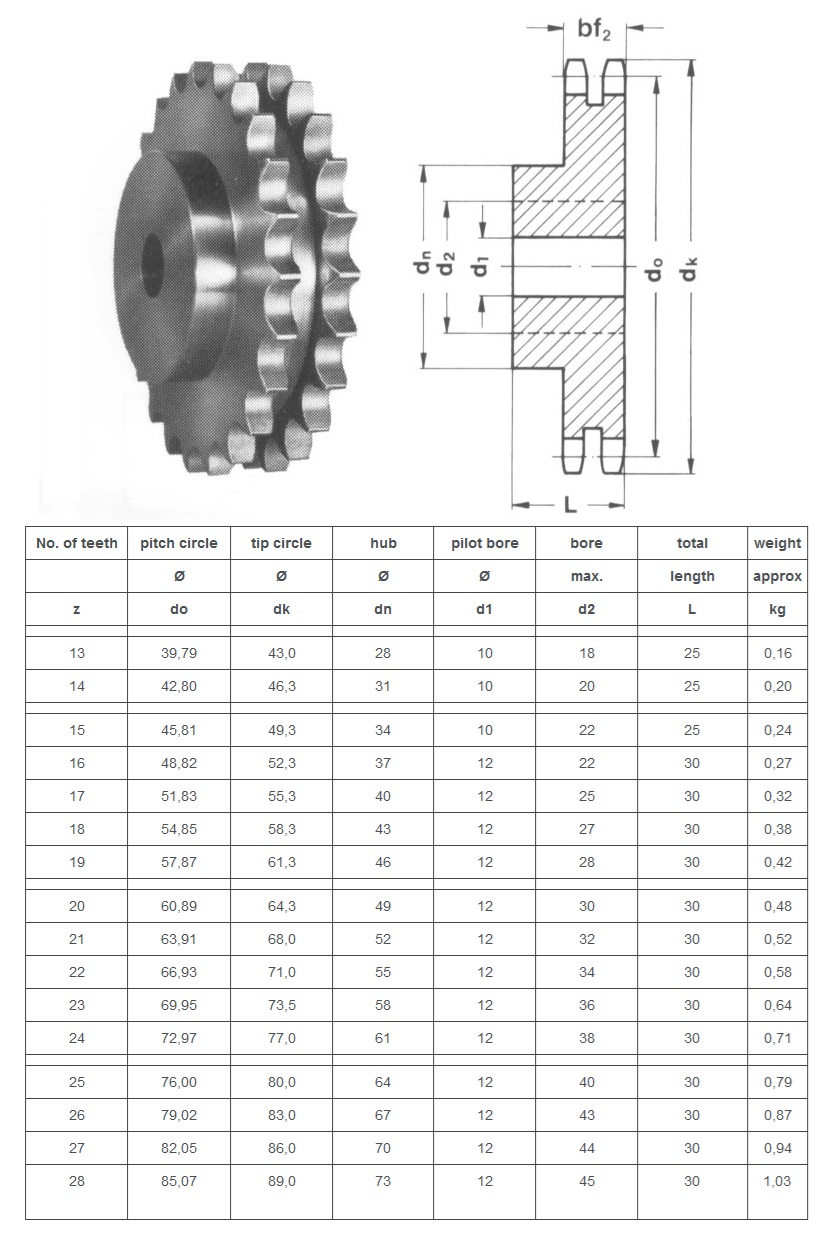

Technical Specifications

ISO-No.: ASA 35-2 (3/8“ x 3/16“)
Pitch: 9.525 mm
Inner Width: 4.77 mm
Roller Diameter: 5.08 mm
Tooth Width (bf2): 14.4 mm
Radius Width (ba): 1.2 mm
Min. Tooth Radius (rx): 10 mm

Benefits

Extends sprocket and chain lifespan
Reduces downtime and maintenance costs
Superior performance in demanding environments
Minimizes operational noise and friction

Choose ASA 35-2 Sprockets for efficient, durable, and reliable power transmission. For customized solutions, consult with your manufacturer or supplier to meet your specific requirements.
