asa triplex sprocket 80B-3

asa triplex sprocket 80B-3 with black oxide zinc plated

80B denotes the sprocket size, indicating the number of teeth and pitch circle diameter. Similar to other plate wheel sprockets, 80B sprockets are typically manufactured using durable materials such as steel or stainless steel for strength and long life under demanding conditions. Their primary use is to transfer rotary motion between the driving and driven components of a system.
-3 means triplex.
Model: asa triplex sprocket 80B-3
Material: C45, stainless steel, hardened steel, etc.
Surface treatment: Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc.

Contact Us
Description

ASA 80-3 / ISO 16A-3 Sprocket is designed for smooth, efficient, and reliable power transmission in a wide range of industrial applications. Built to precise standards, these sprockets minimize energy loss, reduce friction and noise, and ensure optimal chain engagement, all while offering long service life and reduced maintenance costs.

Key Features

  • Efficient Power Transmission: Maintains excellent chain contact for minimal friction and noise, resulting in smoother operation and improved system efficiency.
  • Long Service Life: Durable materials and precise tooth profiles extend the life of both sprockets and chains, reducing downtime and maintenance costs.
  • Material Options:
    • C45 Steel: Offers a balance of strength and economy.
    • Stainless Steel: Provides outstanding corrosion resistance for harsh environments.
    • Hardened Steel: Heat-treated for superior wear resistance and durability.
  • Customizable Specifications: Tooth pitch, bore diameter, and overall dimensions can be tailored for specific applications and industry requirements. Consult with your manufacturer or supplier for optimal selection.

Technical Specifications

  • ISO-No.: ASA 80-3 = 16A-3 (1“ x 5/8″)
  • Pitch: 25.4 mm
  • Inner Width: 15.88 mm
  • Roller Diameter: 15.88 mm
  • Tooth Width (bf3): 73.3 mm
  • Radius Width (ba): 3.2 mm
  • Min. Tooth Radius (rx): 27 mm

Benefits

  • Reduces frequent replacement and maintenance
  • Extends the lifespan of sprockets and chains
  • Minimizes downtime and overall operating costs
  • Superior performance in demanding environments

Choose ASA 80-3 / ISO 16A-3 Sprockets for high-performance, long-lasting, and efficient power transmission. For customized solutions, consult with your manufacturer or supplier to meet your specific requirements.

Technical Parameters

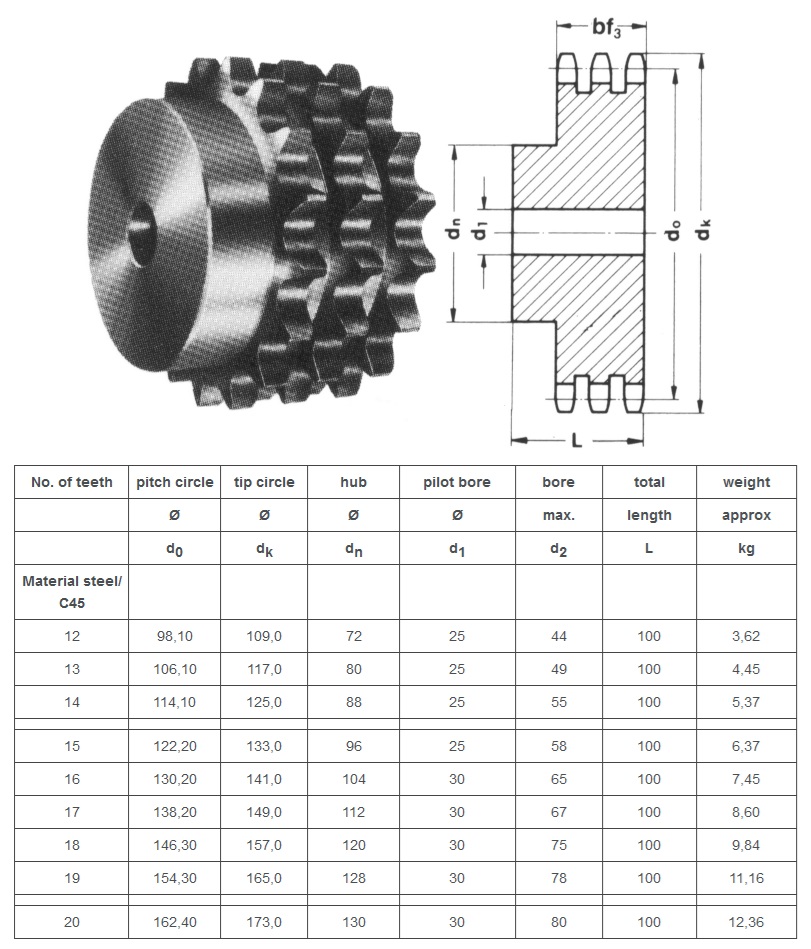

asa triplex sprocket 80B-3 technical table

asa triplex sprocket 80B-3 technical table
