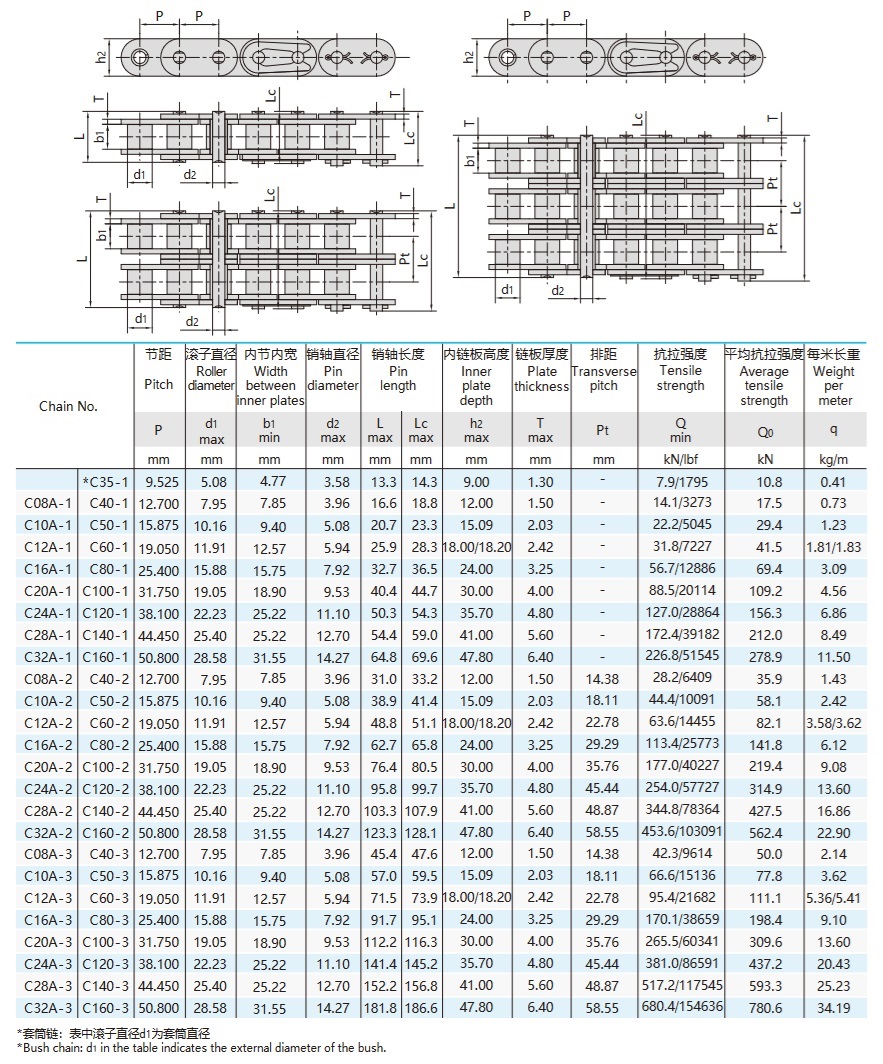

A series roller chains with straight side plates simplex

A series roller chains with straight side plates simplex or multiplex optional

The A-Series Straight Link Plate Roller Chain is a drive chain widely used in domestic, industrial and agricultural machinery and is designed to provide simple, reliable and efficient power transmission. This chain consists of a series of short cylindrical rollers linked together and driven by a gear known as a sprocket, and is suitable for low power transmission.

A Series Straight Link Plate Roller Chains are precision short pitch roller chains, renowned for their wide application in power transmission across various mechanical equipment. Available in single and multiple row configurations, these chains deliver efficient, reliable performance in industrial environments.

Design Features

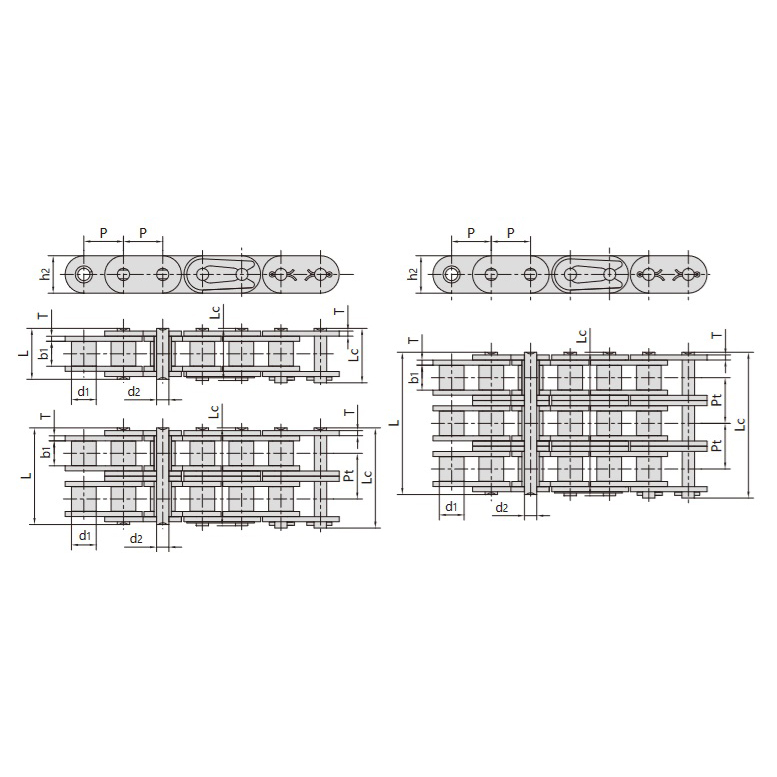

Main components: inner link plate, outer link plate, pin, sleeve, and roller.
Interference fit between inner link plate & sleeve and outer link plate & pin; clearance fit between roller & sleeve and sleeve & pin allows for smooth flexing and reduced wear.
Chain pitch is determined by the formula: roller chain number × 25.4/16 (mm).
Links are typically connected in even numbers to enhance stability and durability.
Chain plate features “8” shape design for balanced tensile strength and reduced mass and inertia during motion.

Material & Durability

Manufactured from carbon steel or alloy steel, heat-treated for optimal strength and hardness.
Excellent wear resistance and long-lasting durability for continuous, efficient operation.

Applications

Widely used in power transmission for mechanical equipment in diverse industries.
Ideal for environments demanding efficiency, reliability, and robust performance.

In summary, the A Series Straight Link Plate Roller Chain offers a versatile and dependable solution for power transmission, featuring precision design, durable materials, and efficient operation for a wide range of mechanical applications.
