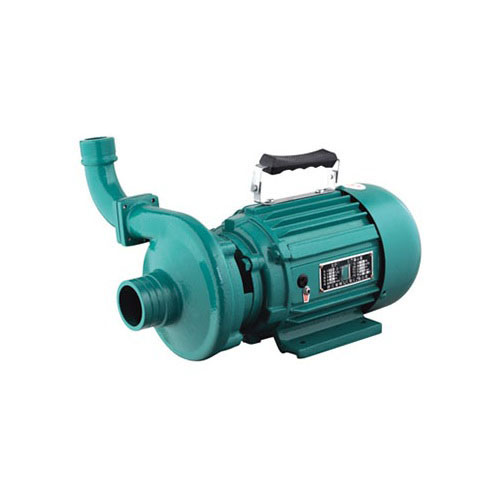

centrifugal clear water pump for agricultural irrigation

Centrifugal clean water pump consists of an electric motor, sealing system and pump, designed for the extraction and delivery of clean water.

Description

The centrifugal clear water pump utilizes the principle of centrifugal force to pump water efficiently and is suitable for a variety of environments, including agricultural irrigation, landscaping, and household water use.

Centrifugal clean water pumps are widely used for pumping and transferring water from rivers, lakes, wells, etc. and are suitable for:

  1. Household water: to provide clean water for household water supply system.
  2. Agricultural irrigation: used for irrigation of farmland, greenhouse and other areas.
  3. Aquaculture: Provide water source to support aquaculture.
  4. Landscaping: provide stable water source for garden and landscape irrigation.
  5. Public facilities: such as hotels, canteens, water supply for high-rise buildings.

The electric pump can run continuously and stably under the following conditions:

  1. media requirements: for non-corrosive clear water, and the media sand content does not exceed 0.10%, solid particle size is not greater than 0.2mm.
  2. temperature range: the working medium temperature does not exceed +40 °C.
  3. pH range: the pH value of the medium should be between 6.5 and 8.5.
  4. power supply specifications: for 50Hz frequency power supply, single-phase voltage 220Vac, voltage fluctuation range of 0.9 to 1.1 times the rated value.
  5. Precaution before use: the air inside the pump must be drained before use, otherwise it may not be able to pump water normally.
Technical Parameters
centrifugal clear water pump
Model Power(W) Max.Q(m³/h) Max.H(m) Max Suction Head(m) Synchronous Speed(rpm) Voltage(V) Suction caliber(mm) Outlet caliber(mm)
40kd5-12da 370 10 13.5 9 2860 220 52 39
40kd6-15da 550 11 18 9 2860 220 52 39
40kd8-16db 750 12 19.5 9 2860 220 52 39
40kd30-16db 1100 32 15 8 2860 220 65 65
