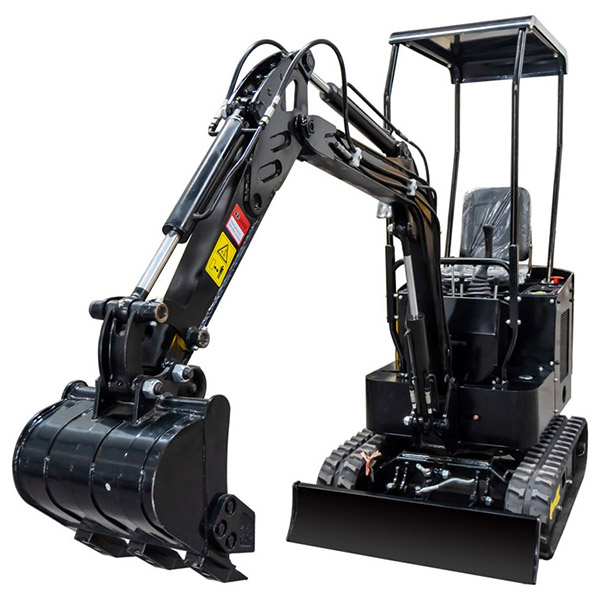

compact excavator with crawler hydraulic 1.2 ton BD12

A compact excavator features a small footprint and agile operation, making it ideal for digging, trenching, and landscaping tasks in confined spaces such as urban areas, gardens, and small construction sites.

Description

Crawler Hydraulic Compact Excavator CE CHEAP PRICE

The 1.2 ton compact excavator has a unique advantage because of its low price, light weight, convenient maintenance and repair. Due to its compact size, flexibility, versatility and high efficiency, it is very popular among users. Wide applicability. The digging volume is small and flexible, which is very suitable for various pipeline excavation, foundation construction, public utilities and house maintenance operations in towns and cities. Small size and special design make it possible to work in an environment where large excavators cannot be constructed.

Main Features

  • Because 1.2 ton compact excavator volume is reduced compared with the traditional excavator, it is also reduced in terms of fuel consumption, so the improvement of energy saving is the optimization of environmental protection projects.
  • High usage rate, wide range of use environment, high efficiency, these are also the advantages of compact excavators, in the construction team, efficiency and quality is undoubtedly in the first place.
  • Noise pollution is also a source of pollution, compact excavators also do a good job in reducing noise, which is conducive to promoting the safety and efficiency of workers.
Technical Parameters
Technical parameters of excavator BD12
Model BD12
Weight 1200kg
Digging bucket capacity 0.025cbm, 120kg
Bucket width 380mm
Engine Kubota D722/482
Bore stroke Three cylinders, water cool
Rated power 10.2kw/2500r/min
Displacement 6.8mlr
Main pump G5-6
Swing motor China brand
Travelling motor China brand
USA EATON motor(optional)
Travel speed 1.5kmh
Battery 12V 60A
Main Dimensions
Overall dimension (LxWxH) 2775x930x2219 mm
Wheelbase 910 mm
Total length of track 1230mm
Platform ground clearance 380 mm
Platform back turning radius 784 mm
Chassis width 896 mm
Track width 180 mm
Chassis ground clearance 132 mm
Track height 320 mm
Operating Range
Maximum Digging depth 1750 mm
Maximum Vertical digging depth 1375 mm
Maximum Digging height 2610 mm
Maximum Dumping height 1850 mm
Maximum Digging radius on ground 2850 mm
Minimum Rotation radius 1330 mm
Maximum Upgrade height of bulldozer blade 345 mm
Maximum Digging depth of bulldozer blade 255 mm
