conveyor chain for spraying equipment raising spray quality

The features and principles of conveyor chains for spraying equipment are mainly reflected in their structural design and working mechanism to ensure even coating of paint and stable operation of the equipment. It is widely used in painting production lines in automobile manufacturing, home appliances, furniture and other industries.

The main function of the spraying equipment conveyor chain is to convey workpieces between processes, enhancing both production efficiency and coating quality.

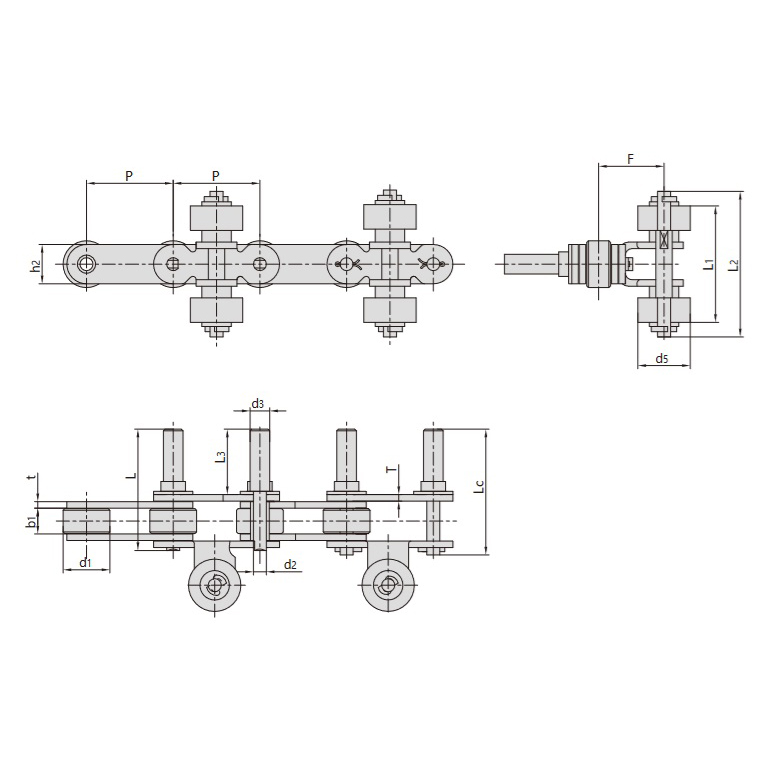

Structural Design

Features a double articulation design for smooth operation within closed tracks, enabling turning in both horizontal and vertical directions.
Each joint includes hinges and rollers (travel wheels and guide wheels) arranged in two mutually perpendicular directions, ensuring free movement and reliable turning on curved tracks.
Composed of chain plates, pins, articulated block cross joints, and roller assemblies (rollers, bearings, pins), providing flexibility, durability, and high efficiency.

Working Principle

Driven by a speed-regulated motor, with sprocket gears meshing with the transmission device to rotate the rollers and complete the coating process cycle.
The entire process is monitored by electric eye sensors for stable and reliable operation.

Applications

Widely used in the coating industry, as well as conveyor machinery, food, garment, automotive, and logistics industries.
Meets the high standards required for product quality and service in various demanding environments.

In summary, the conveyor chain for spraying equipment is designed for flexibility, durability, and efficiency, ensuring smooth operation and superior production quality in diverse industrial applications.
