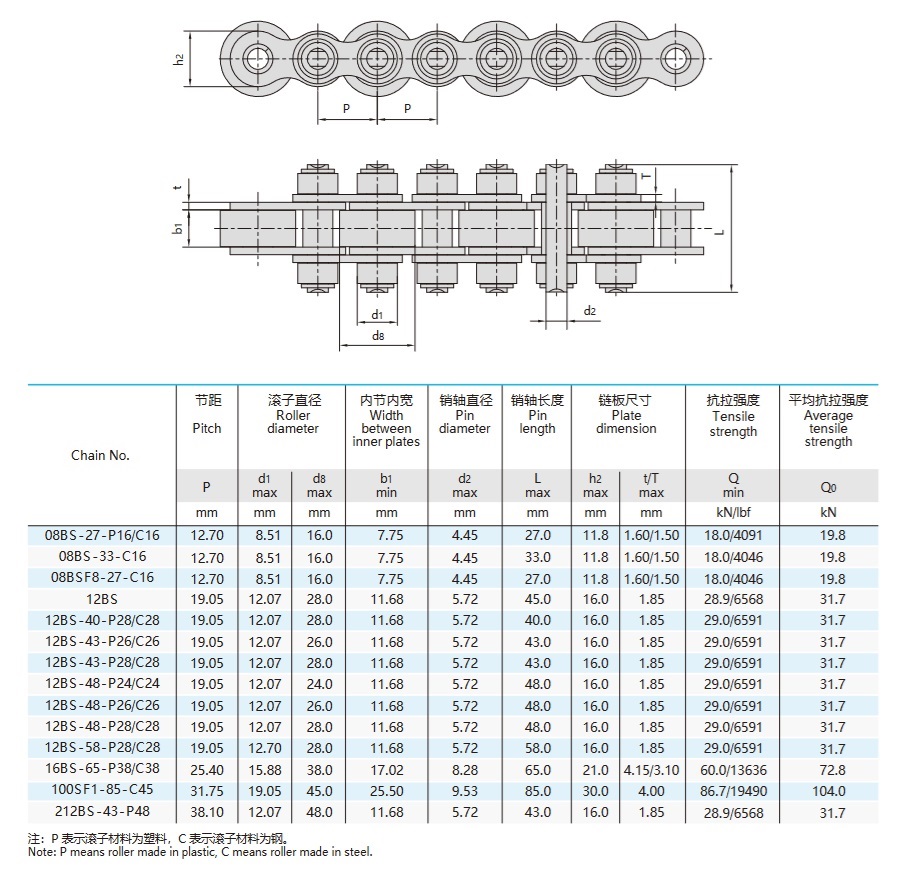

conveyor chains with large rollers improved efficiency

The conveyor chain with large rollers consists of a number of unit chains with the same structure connected in series in the form of motion vice, each unit chain consists of an inner chain unit and an outer chain plate which is set between two neighboring inner chain units and plays the role of connection.

The inner chain unit mainly comprises two inner chain plates disposed opposite to each other and rollers transversely disposed on the two inner chain plates, which rollers include a first roller and a second roller rotationally disposed on the inner chain plates by means of a sleeve.

Large and small roller design: The first roller has a diameter greater than the height of the inner chain plate, exposing its outer surface beyond the end of the chain plate. The second roller is smaller, with a diameter less than the height of the inner chain plate.
Reduced wear and improved durability: The large, exposed first roller rotates freely during operation, reducing wear between the chain and sprocket, and increasing the overall durability and efficiency of the conveyor chain.
Optimized load carrying capacity: The large roller design not only improves motion performance, but also enhances load capacity, making the chain suitable for high-strength, high-efficiency conveyor systems.
Stable and efficient transfer: The structural design allows for greater support and less friction when transferring items, ensuring stability and safety during operation.
Low maintenance and cost: Maintains good performance under long periods of high load, reducing maintenance frequency and operating costs.

Application: Ideal for conveyor systems that require high strength, efficiency, and reliability in long-term, heavy-duty operations.
