conveyor chain with attachments for meat processing line

The conveyor chain with attachment plate features a downwardly opening cover that fits tightly over the upper surface of the chain, complemented by wavy side plates matching the contour of the conveyor chain body. This stable conveying surface effectively prevents material from falling off during transportation.

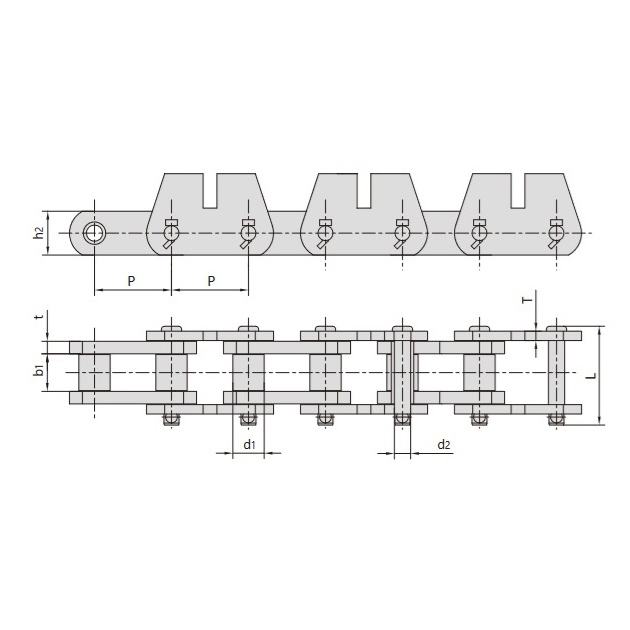

Structure & Anti-Fall Design

• Attachment plate acts as a secure cover, forming a stable and reliable material conveying surface.
• Wavy side plates are designed to match the chain body for a tight fit, reducing the risk of material loss.

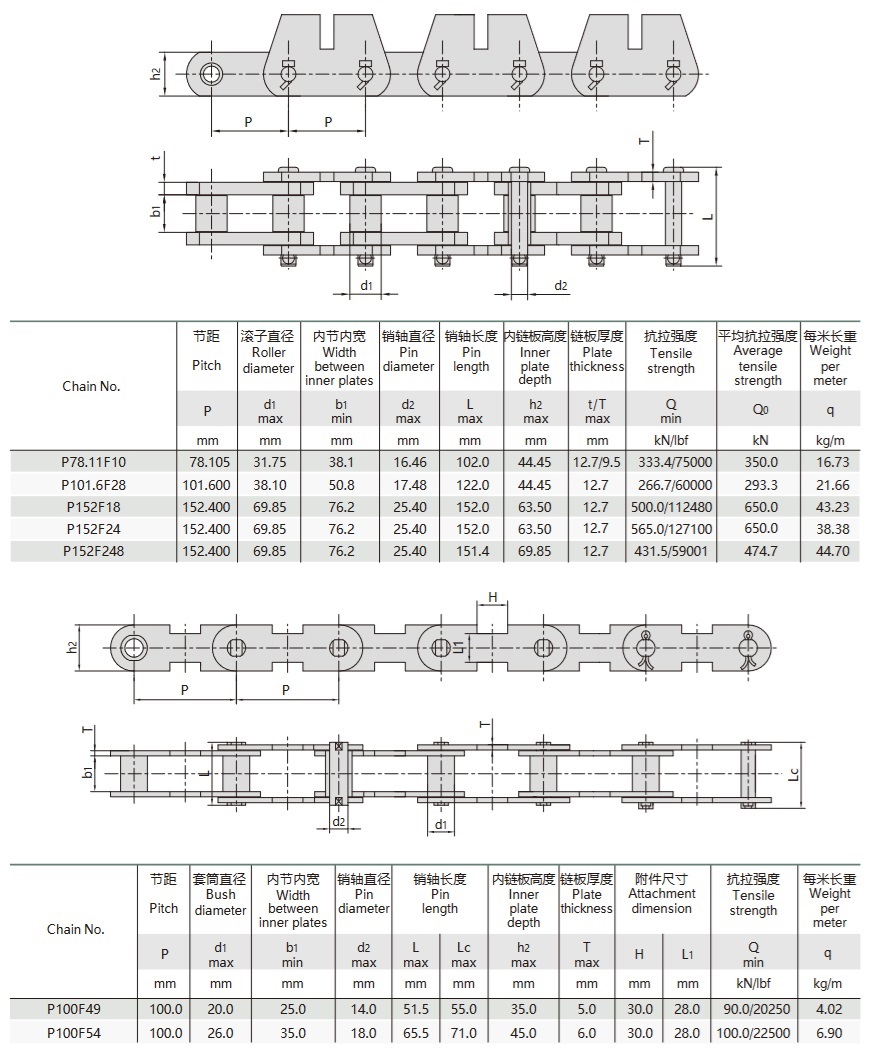

Specifications

• Roller diameters available: 36, 42, 50, 60, 70, 85, 100, 120 mm for various load and environment requirements.
• Pin diameters available: 10, 12, 15, 18, 21, 25 mm for customizable durability and efficiency.

Performance & Applications

• The anti-fall design and wide specification choices enhance the chain’s adaptability and service life.
• Delivers efficient and stable performance in a variety of industrial material conveying applications.

In summary, the conveyor chain with attachment plate provides improved stability, adaptability, and durability, ensuring efficient and reliable material handling across diverse industrial environments.
