Name: core drill rig for mineral deposits and engineering use
Brand: beentools

core drill rig for mineral deposits and engineering use

The core drill rig is a specialized device for mineral and engineering exploration. It efficiently obtains underground core samples, providing reliable data for analysis and resource assessment. The equipment features a compact structure, easy operation, and is suitable for various geological environments.

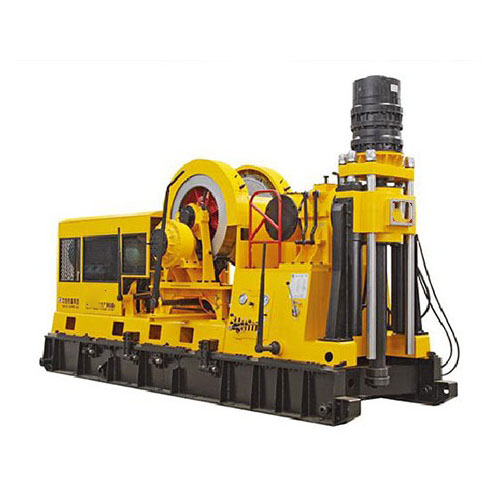

core drill rig

core drill rig is a highly efficient deep-hole drilling device, primarily using diamond or carbide drill bits for rock coring. This equipment is specially designed for underground mineral resource exploration, energy development, and geological research, enabling high-quality core sample collection under various complex geological conditions.

Features of core drill rig

The rig boasts powerful performance and high torque output, with a wide range of adjustable drilling speeds to meet the requirements of different depths and geological strata.

Its lateral winch structure, sensitive and reliable hoisting and braking systems, and water brake ensure safe operation.

The rig is easy to operate and maintain, guaranteeing both work efficiency and personnel safety.

Application Fields of core drill rig

core drill rigs are widely used in geological surveys, mineral exploration, coal prospecting, hydrogeology studies, water well construction, shallow oil and gas field development, geothermal well exploration, as well as mine ventilation and drainage projects.

They are also suitable for large-diameter foundation pile construction and various engineering drilling tasks.

core drill rig for mineral deposits and engineering use
Model		BXY-9
BXY-9 Basic Parameters
Drilling Depth		3200m (Φ73mm standard drill rod)
		2600m (Φ89mm standard drill rod)
		4200m (NQ drill rod)
		3200m (HQ drill rod)
Rotary Head Rotation Angle		0 to 360 degree
Dimensions (L x W x H)		5730 x 2040 x 3400mm (with motor)
Dimensions (L x W x H)		6088 x 2040 x 3400mm (with diesel engine)
Rig Weight		17000kg (with motor)
Rig Weight		17600kg (with diesel engine)
2. Rotary Head (with 160kW, 1480r/min power unit)
Spindle Speed	Forward Low Speed	82, 119, 170, 234, 333 r/min
	Forward High Speed	240, 338, 484, 683, 949 r/min
	Reverse Low Speed	29 r/min
	Reverse High Speed	84 r/min
Spindle Stroke		1200mm
Max Spindle Hoisting Force		643kN
Max Spindle Pressure		339kN
Max Spindle Torque		18610N·m
Spindle Thru-hole Diameter		118mm
3. Hoist (with 160kW, 1480r/min power unit)
Max Single Rope Lifting Capacity (third layer)		165kN
Lifting Speed (third layer)		0.84, 1.21, 1.74, 2.45, 3.40 m/s
Wire Rope Diameter		26mm
Drum Rope Capacity		400m
4. Rig Moving Device
Moving Cylinder Stroke		800mm
5. Hydraulic System
System Set Working Pressure		16MPa
Gear Oil Pump Displacement		50+25ml/r
6. Rig Power
Model	Y2-315L1-4 Motor		YC6M265L-D20 Diesel Engine
Power	160kW		170kW
Speed	1480 r/min		1500 r/min
BXY-9B Basic Parameters
Drilling Depth		3400m (Φ73mm standard drill rod)
		2800m (Φ89mm standard drill rod)
		4200m (NQ drill rod)
		3200m (HQ drill rod)
Dimensions (L x W x H)		7005 x 2040 x 3400mm (with motor)
Dimensions (L x W x H)		7362 x 2040 x 3400mm (with diesel engine)
Rig Weight		19900kg (with motor)
Rig Weight		20500kg (with diesel engine)
2. Spindle (with 160kW, 1480r/min power unit)
Spindle Speed	Forward Low Speed	82, 119, 170, 234, 333 r/min
	Forward High Speed	240, 338, 484, 683, 949 r/min
	Reverse Low Speed	29 r/min
	Reverse High Speed	84 r/min
Spindle Stroke		950mm
Max Spindle Hoisting Force		643kN
Max Spindle Pressure		339kN
Max Spindle Torque		18610N·m
Max Spindle Reverse Torque		52024N·m
Spindle Thru-hole Diameter		118mm
3. Rotary Table (with 160kW, 1480r/min power unit)
Rotary Table Speed	Forward Low Speed	28, 41, 58, 80, 114 r/min
	Forward High Speed	82, 116, 166, 234, 326 r/min
	Reverse Low Speed	10 r/min
	Reverse High Speed	28 r/min
Max Rotary Table Static Load		1335kN
Max Rotary Table Dynamic Load		720kN
Max Rotary Table Torque		54155N·m
Max Rotary Table Reverse Torque		151390N·m
Rotary Table Thru-hole Diameter		494mm
4. Hoist (with 160kW, 1480r/min power unit)
Max Single Rope Lifting Capacity (third layer)		165kN
Lifting Speed (third layer)		0.84, 1.21, 1.74, 2.45, 3.40 m/s
Wire Rope Diameter		26mm
Drum Rope Capacity		400m
5. Rig Moving Device
Moving Cylinder Stroke		800mm
6. Hydraulic System
System Set Working Pressure		16MPa
Gear Oil Pump Displacement		50+25ml/r
7. Rig Power
Model	Y2-315L1-4 Motor		YC6M265L-D20 Diesel Engine
Power	160kW		170kW
Speed	1480 r/min		1500 r/min
