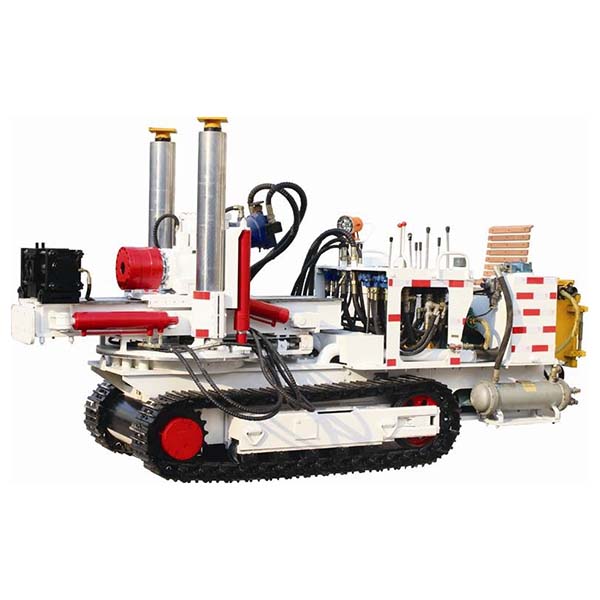

Deep Hole Drilling Rig for Coal Mines

The deep hole drilling rig for coal mines is an efficient drilling machine specially developed for complex underground mining environments. This equipment features a crawler-type chassis, enabling flexible movement in various terrains such as horizontal and inclined roadways. It supports 180-degree horizontal rotation, 700mm vertical lifting, and -20° to +45° pitch adjustment, allowing for multi-angle, all-direction drilling operations. It is widely used for intensive drilling projects in coal mines, including water exploration, gas detection, fault detection, roof cutting, and water injection. The rig is especially suitable for soft rock and coal seam environments with outburst prevention requirements, and is also capable of handling drilling tasks in various complex strata.

Main Features of the Deep Hole Drilling Rig for Coal Mines

• Compact structure and small size, making it easy to operate and relocate in narrow underground spaces.
• Full hydraulic control system provides convenient operation and quick response, greatly enhancing operational flexibility.
• Crawler chassis ensures stable and efficient movement, strong maneuverability, and adaptability to different working environments.
• The power head delivers large torque and long stroke, meeting the needs of long-distance and high-efficiency drilling.
• The hydraulic system is equipped with a rapid advance function, significantly reducing the time required for loading and unloading drill rods, with a dedicated device to further reduce workers’ physical workload.
• The variable hydraulic system automatically adjusts speed and torque according to working conditions, achieving energy efficiency and optimal drilling performance.
• Compatible with a variety of drilling tools, offering strong expandability to meet different drilling process requirements.

Application Fields

This deep hole drilling rig is mainly used for underground coal mine safety projects such as water exploration, gas detection, outburst prevention, fault detection, roof cutting, and water injection, and is suitable for work faces requiring high drilling density and precision. Additionally, it can be widely applied to other mines, geological exploration, and drilling construction in complex strata, making it essential equipment for improving underground operational efficiency and safety.
