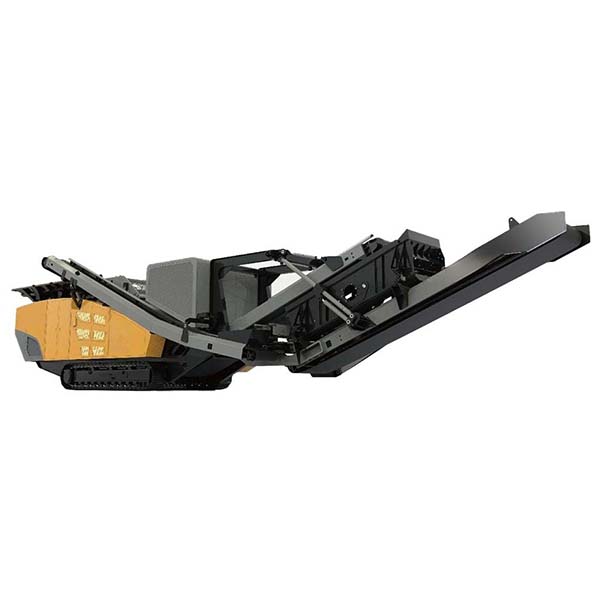

crawler impact crusher plant which is hybrid drive type

The crawler impact crusher plant requires no fixed foundation or support legs, enabling it to be quickly deployed at different construction sites and be in production in less than 30 minutes. The power drive system of the equipment supports oil-electric hybrid type, featuring the design of self-contained diesel generator set, which makes the equipment capable of being powered by external power grid as well as operating independently without power grid supply.

Model: CF260D

Features of crawler impact crusher plant:

1. high processing capacity: processing capacity up to 260 tons / hour, to meet the needs of large-scale production.
2. Lightweight structural design: compact design, easy transportation and rapid deployment, suitable for projects that frequently change operation locations.
3. oil-electric hybrid drive: support oil-electric hybrid drive, equipped with diesel generator set, can be switched to external power grid, adapt to different operating environments.
4. High wear-resistant alloy hammer: adopts high wear-resistant alloy hammer, which has longer service life and lower maintenance cost.
5. high crushing ratio: the crushing ratio can be up to 1:15, or even higher, to ensure that the crushed materials have uniform particle size and excellent grain shape.
6. Hydraulic adjustment of the angle of the bottom of the crushing bin: the bottom of the crushing bin can be adjusted hydraulically, which is convenient for maintenance and transportation, and improves the working efficiency of the equipment.
7. deep cavity design: optimized crushing cavity design can increase capacity by 10%, improve productivity.
8. Fuel Utilization Improvement: Fuel utilization is increased by 26%, which effectively reduces operating costs and improves operational efficiency.
9. Intelligent operation: one-key start and stop operation, and equipped with wireless remote control, reducing the need for auxiliary operators and simplifying the operation process.

Advantages of crawler impact crusher plant:

1. flexibility and mobility: the crawler design does not require support legs or fixed foundation, which facilitates the rapid deployment of the equipment in different construction sites, and can adapt to the harsh operating environment and frequent transfer needs.
2. high stability: equipment performance is stable, without complex installation and commissioning. The hybrid design of oil and electricity enables the equipment to operate stably in different environments, and the diesel generator set ensures that the equipment can work efficiently even in places without power grid supply.
3. High-efficiency crushing: The large-capacity crushing chamber and high wear-resistant alloy hammer can handle ores with compressive strength not exceeding 150 MPa, adapting to a variety of crushing needs. The high crushing ratio can make the material size uniform, and the products with good grain shape can meet the requirements of various processes.
4. easy to operate: the equipment is equipped with one-key start and stop function, easy to operate, and through the wireless remote control for remote control, reducing the complexity of the operation, reducing the site auxiliary operators.
5. high fuel efficiency: fuel utilization rate increased by 26%, effectively reducing energy consumption, reducing operating costs and improving economic efficiency.
6. easy transportation and maintenance: light structure design is easy for equipment transportation, and the function of hydraulic adjustment at the bottom of the crushing bin is convenient for daily maintenance and equipment transportation.

The working principle of crawler impact crusher plant:

It is mainly based on the technology of impact crusher. The material enters into the crushing chamber evenly through the vibrating feeder, and under the action of the high-speed rotating plate hammer, the material is accelerated to hit the impact plate for crushing. In this process, the collision between the material and the impact plate continuously crushes and further reduces the particle size. The crushed material is graded by the screening machine to ensure that the product reaches the required particle size. The design of the crushing chamber is optimized, and the deep cavity structure improves the material passing ability and enhances the production capacity of the equipment.

Application areas of crawler impact crusher plant:

1. mining rock crushing: widely used in various mines rock crushing, especially suitable for compressive strength of not more than 150 MPa ore, such as granite, limestone, cobblestones and so on.
2. Construction waste treatment: It is used in the recycling and crushing of building demolition, road concrete and waste, which helps to reuse the construction waste and meets the requirements of environmental protection.
3. Coal Mining Industry: In coal mining, the crawler impact crusher plant can crush the raw materials in coal mines, and process the coal and other minerals into a particle size suitable for transportation and further processing.
4. Road and Railway Construction: It is suitable for crushing sand and gravel materials in large-scale road and railroad construction, providing a stable supply of raw materials for the project.
5. Environmental protection and waste treatment: It is suitable for crushing and processing of urban garbage and mineral waste, promoting resource recycling and reuse, and helping environmental protection.
6. Metallurgy and chemical industry: It can efficiently crush ores and provide suitable raw materials for metallurgy and chemical industry to meet the production demand.
