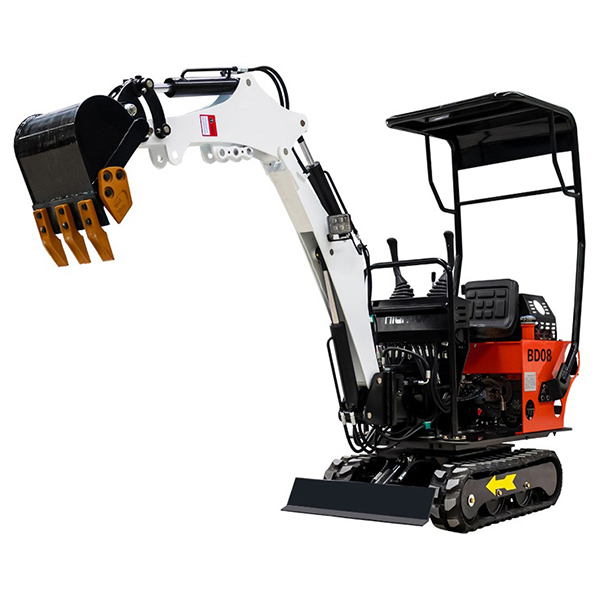

crawler mini excavator 0.8 ton

crawler mini excavator 0.8 ton with compact design

The crawler mini excavator is compact and highly maneuverable, suitable for earthwork in narrow spaces and small projects. It is easy to operate and maintain, and is ideal for use in landscaping, farmland, and municipal engineering.

Contact Us
Description

0.8 Ton Crawler Mini Excavator, 0.8 Ton Micro Excavator

Customer can choose Color Red, Yellow, or Blue, we also accept to be customized.

The boom cylinder adopts the well-known brand. The cylinder is designed integrated, which is more advanced than the welding technology.

Advantage Below:

  • Unique big arm structure design
  • The operation front pipeline is clear.
    The protective cover protects the pipeline from being destroyed.
  • The boom cylinder adopts the well-known brand.
    The cylinder is designed integrated, which is more advanced than the welding technology.
  • All structural parts are finely processed.
    Shot blasting, pickling, and baking finish process are adopted.
    The surface has high gloss and high paint adhesion.
Technical Parameters
crawler mini excavator 0.8 ton with compact design
Model BD08
Rated power 7Kw to 7.5kw
Bucket Capacity 0.025 cubic meters
Bucket width 340 mm
Engine Model Koop 192F
Optional Engine Briggs and Stratton
Operating Weight 800 kg
Pump form Single gear pump
Set working pressure 14 Mpa
Swing speed 12 rpm
Travel speed 2.2 Km/h
Grade ability 30 degree
Ground pressure 19 Kpa
Maximum digging force 7.5 KN
Working Range
Maximum digging distance 2450 mm
Maximum digging depth 1200 mm
Maximum diging height 2350 mm
Maximum dumping height 1600 mm
Minimum Swing radius 1100 mm
Maximum Upgrade height of bulldozer blade 120 mm
Maximum Digging depth of bulldozer blade 200 mm
Dimensions
Total width 720-780 mm
Total height 1300 mm
Total length 2430 mm
Minimum ground clearance 80 mm
Track ground length 1140 mm
Track width 150 mm
