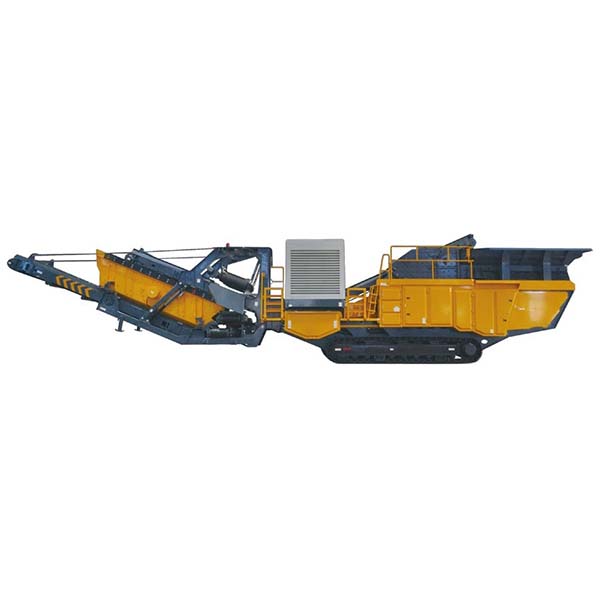

crawler mobile impact crusher with vibrating screen

Crawler mobile impact crusher has high crushing ratio, low operating cost and good environmental protection performance, which is widely used in many fields such as highway, railroad, construction, mining, etc. It is suitable for crushing medium-hard materials such as limestone, granite and construction waste.

Model: TF260B

Crawler type mobile impact crusher configuration:

1. Power system: equipped with Deutz V8 diesel engine and imported generator set, providing strong power to meet the operational needs of harsh environments.
2. Impact crusher: adopts deeply optimized impact crushing mainframe with enhanced rotor structure to improve crushing efficiency and material handling capacity.
3. Vibrating Screen Machine: It is used to screen the crushed materials to ensure the accurate output of qualified granularity materials.
4. Walking motor: Crawler walking system ensures that the equipment can move freely and adapt to various construction environments.
5. Vibrating feeder: automatically and evenly feed the materials into the crusher cavity to realize stable and continuous production process.

Advantages of crawler type mobile impact crusher:

1. Power supply: built-in diesel generator power supply or power supply from external grid.
2. High-efficiency power system: the equipment is equipped with high-efficiency Deutz V8 diesel engine and imported generator, which ensures the efficient operation of the equipment, and at the same time, it has low fuel consumption and low noise, which is adaptable to the needs of different sites. For construction sites without external power supply, the diesel engine provides completely independent power support, improving operational flexibility.
3. Environmentally friendly design: the use of professional power unit mute box design, effectively reduce the noise of the equipment in operation, and reduce vibration, in line with modern environmental requirements. In addition, the air intake of the diesel engine is equipped with a heavy-duty desert filter, which can effectively filter sand and dust, ensuring stable operation of the engine in harsh environments.
4. Intelligent control system: the equipment is equipped with a mature and stable integrated industrial controller, which can realize one-key start-stop operation. Through the multifunctional display, the operator can monitor the status of the equipment in real time and get the fault alarm information in time, which is convenient for the adjustment and maintenance of the equipment.
5. Intelligent anti-jamming technology: the equipment adopts industrial controller to automatically monitor the overload current of the feeding system, when jamming or uneven feeding occurs, the system will automatically pause and resume operation, avoiding the crusher jamming or shutting down, improving the overall stability of the equipment.
6. Dustproof and heatproof design: the inverter cabinet adopts labyrinth ventilation design with dustproof filtering function, which can effectively avoid the inverter from being blocked by dust or overheating and causing failure and shutdown, and improve the reliability of the equipment.

The working principle of crawler type mobile impact crusher:

1. Material input: through the vibrating feeder, raw materials are evenly fed into the crushing chamber of the impact crusher.
2. High-speed impact: The rotor in the impact crusher rotates at high speed, and the plate hammer strikes the material onto the impact plate to form secondary crushing. The rotor structure is deeply optimized to provide strong impact force and moment of inertia to achieve more efficient crushing.
3. Material reprocessing: The crushed material continues to collide with the impact plate and is further crushed. According to the optimized design of the number of crushing sections, the material can reach a good particle size through a few times of crushing.
4. Screening and Output: The crushed materials are classified and output by particle size through vibrating screen, and the large-size materials are returned to the crushing chamber for further processing, which ensures the efficient sorting and accurate output of materials.

Crawler mobile impact crusher application fields:

1. Mining: It is suitable for crushing granite, limestone, basalt and other medium-hard materials, widely used in mining and stone production.
2. Construction waste recycling: capable of efficiently processing construction waste, including concrete blocks, masonry, etc., to produce recycled aggregates.
3. Road construction: In highway and railroad construction, natural stone materials are crushed and processed to be used as road base filler or aggregate for cement concrete.
4. Urban construction: It is suitable for crushing materials in urban demolition or infrastructure construction projects, and recycling of construction waste.
5. Sand and gravel production: it can be used to produce construction sand and gravel with high efficiency, which is widely used in cement and concrete production.
