crawler mobile impact crushing plant with 3 vibrating screen

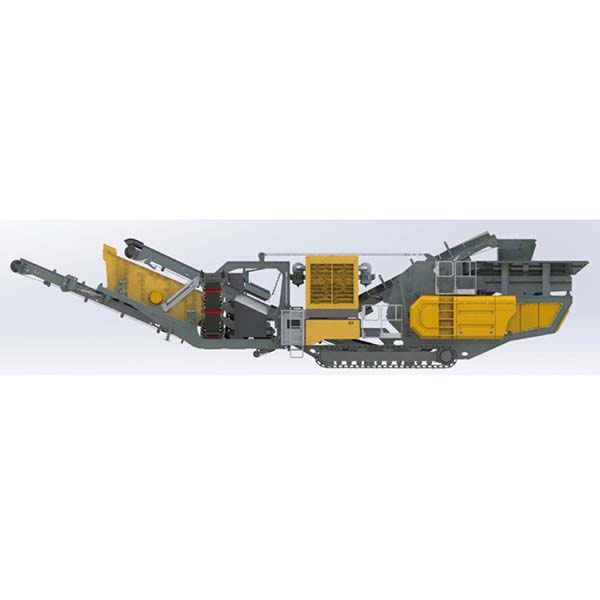

Crawler Mobile Impact Crushing Plant (Model: TF260D) features a deeply optimized rotor structure, providing stronger rotational inertia and hammer impact force. This ensures a higher crushing ratio with fewer crushing sections, significantly reducing investment costs. Equipped with diesel generator sets and frequency converters, the plant minimizes on-site installation and debugging time, enables convenient movement and transfer, and improves overall construction efficiency. The three-layer vibrating screen mesh supports one-time crushing and offers three discharge methods to meet different production needs.

Configuration:

1. Diesel generator sets and frequency converters: Ensure efficient operation and adaptability to various environments.
2. Impact crusher: Delivers efficient crushing for different material types.
3. Vibrating screen machine: Screens crushed materials for efficient grading.
4. Walking motor: Enables rapid site movement to improve production efficiency.
5. Vibrating feeder motor: Provides stable feed to the crusher, ensuring smooth operation.

Advantages:

1. Power supply: Built-in diesel generator or external grid power supported.
2. High-efficiency and reliable power unit: Uses Deutz V8 diesel engine and imported generator, compact, low fuel consumption, low noise, and supports external industrial power supply.
3. Engine air intake design: Heavy-duty desert filter extends engine life by filtering impurities.
4. Integrated control technology: Industrial controller allows one-key machine start/stop for simple, fast operation.
5. Human-computer interaction system: Multifunctional display shows equipment status and alarms for real-time monitoring and easy adjustment.
6. Intelligent anti-jamming technology: Automatically monitors overload current, intelligently pausing/resuming feeding to prevent jamming and ensure stable production.
7. Frequency conversion cabinet dust ventilation: Labyrinth ventilation and dust filtration prevent dust clogging and overheating.
8. Rotatable re-feeding belt: Rotates 90°-180°, unloading oversized material for re-feeding and improved output.
9. Three-deck vibrating screen: Offers three kinds of graded discharges for efficient sorting and economic benefits.

Working Principle:

The core equipment, an impact crusher, operates by using high-speed rotating plate hammers that impact and crush material into smaller particle sizes. Material is evenly fed into the crushing chamber via a vibrating feeder. After being impacted by the plate hammer and the impact plate, the material is further graded and screened by the bottom screen or the vibrating screen. The plant’s compact structure suits various mobile working conditions, allowing quick deployment across different job sites.

Application Areas:

1. Construction waste treatment: Crushes construction waste to recover reusable materials and reduce resource waste.
2. Mining crushing: Processes stone materials for construction industry needs.
3. Highway and railroad construction: Crushes sand and gravel for large infrastructure projects.
4. Cement production: Crushes large limestone for cement manufacturing.
5. Coal mining industry: Prepares raw coal materials for subsequent processing.
6. Other industrial crushing: Handles minerals and materials for metallurgy, chemical, environmental protection, and more.
