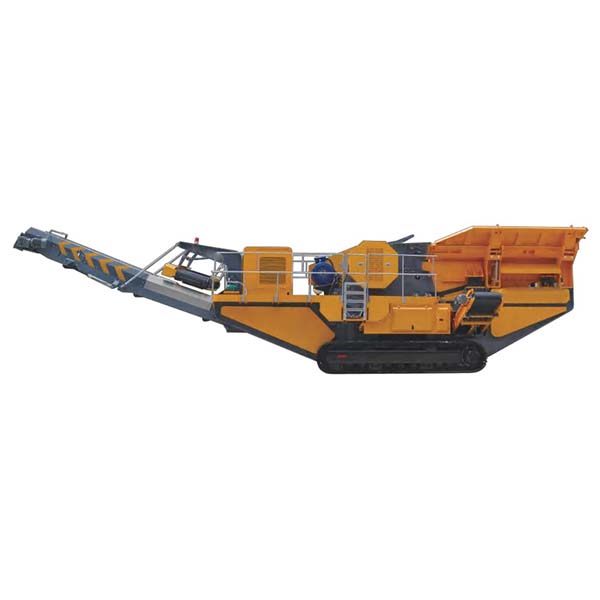

crawler mobile jaw crusher with anti-jamming material

Crawler design enables it to move flexibly in complex terrain and working conditions, with high productivity and low operating costs.

Model: JE400C

Crawler mobile jaw crusher configuration:

1. Frequency conversion cabinet: it is used to adjust the rotational speed of each motor, like vibrating feeder, vibrating screen machine and other equipment, which can flexibly adjust the processing capacity in the production process according to the demand, and improve the energy efficiency and the service life of the equipment.
2. Cone crusher: this is a common ore crushing equipment, capable of crushing large ores into smaller particles. Cone crusher is suitable for secondary or tertiary crushing, usually used to deal with harder ores.
3. Vibrating Screening Machine: It is used to screen the crushed materials and separate the ores with different particle sizes. The materials are usually categorized according to their sizes for subsequent processing.
4. traveling diesel engine: provide power for the whole production line, if this is a mobile crushing and screening system, such an engine can drive the equipment to move around the mine.
5. Vibrating feeder motor: responsible for feeding raw materials into the crusher evenly, ensuring the stable operation of the crusher and avoiding overloading or uneven feeding of materials.

Features of Crawler Jaw Crusher:

1. High-efficiency and reliable power unit: Crawler Jaw Crusher adopts domestic famous brand traveling diesel engine, together with high-efficiency hydraulic system and modularized power unit design, which ensures high efficiency, energy-saving, environmental protection, and easy maintenance.
2. a variety of power supply options: the equipment supports the utility or external generator set power supply, the power combination is flexible and adaptable to different site power conditions. Equipped with frequency conversion cabinet can avoid the impact of vibration and dust on electrical equipment, reduce the failure rate and maintenance costs.
3. integrated control technology: the equipment adopts advanced industrial controller integrated control technology, to achieve one-key start and stop function, easy to operate and humanized, reducing the difficulty of the operator’s work.
4. a new generation of human-computer interaction system: equipped with multifunctional display screen, real-time display of equipment status, alarm information and parameters, so that the operator can understand the working condition of the equipment in a timely manner, to facilitate the adjustment and maintenance.
5. Intelligent anti-jamming technology: Built-in intelligent control system can automatically monitor and control the feeding overload current to avoid equipment jamming and shutdown. This function can be controlled manually or automatically to effectively improve production efficiency.
6. a variety of control methods: the main broken motor has a variety of start-stop control methods to adapt to different working conditions. The frequency conversion cabinet provides near control and remote control options, making the operation safer and more flexible.

Advantages of Crawler Jaw Crusher:

1. energy-saving and environmental protection: through the efficient cooperation of hydraulic system and diesel engine, as well as the intelligent control of the frequency conversion cabinet, the equipment can effectively reduce the energy consumption and carbon emission during the work, which is in line with the requirements of modern environmental protection.
2. easy to move: the crawler design makes the equipment has good mobility, adapt to different working environments, especially suitable for use in complex terrain conditions.
3. easy maintenance: modular power unit and integrated control system design, making the daily maintenance and troubleshooting more convenient, reducing operating costs.

Principle of Crawler Jaw Crusher:

It is mainly composed of crusher mainframe, feeding device, conveying system, hydraulic system, power system and other parts. Its working principle is based on the traditional jaw crusher, which crushes materials through the gap between the movable jaw and the fixed jaw. The materials are fed into the crushing chamber through the feeding device, and are crushed by the repeated impact, extrusion and shearing of the jaw plates, and discharged through the discharge opening. The crawler design makes the whole machine able to move quickly between different working sites, and the crawler chassis provides strong ground adaptability and stability.

1. Power system: The power is provided by internal combustion engine, which drives the hydraulic system to operate the tracks and other mechanical parts, which is suitable for the environment without fixed power supply.
2. Hydraulic system: The hydraulic system is not only used to drive the crawler to move, but also used for the adjustment of crushing chamber, the control of feeding material and the automatic recovery to prevent jamming.
3. Intelligent control system: The industrial controller monitors the functions of the equipment, analyzes and feeds back the status of the equipment in real time, and controls the feeding and crushing processes automatically.

Crawler Jaw Crusher Application Fields:

1. Mining: It is suitable for crushing all kinds of ores, coal mines, building stones and other materials, especially in the mining site where flexible movement and efficient crushing are required.
2. Construction waste treatment: With the acceleration of urbanization, the demand for construction waste treatment is growing, the crawler jaw crusher can efficiently deal with waste construction materials, recycle resources and reduce environmental pollution.
3. Road construction: In the construction of highways, railroads, airports and other infrastructures, a large amount of crushed stone is needed as the base material, and the crawler jaw crusher can be quickly moved to different construction sites to provide convenient on-site crushing services.
4. Stone Processing: Stone mining and processing requires preliminary crushing of large pieces of stone, crawler jaw crusher is widely used in all kinds of stone processing enterprises by virtue of its high efficiency and flexible advantages.
