crawler small excavator

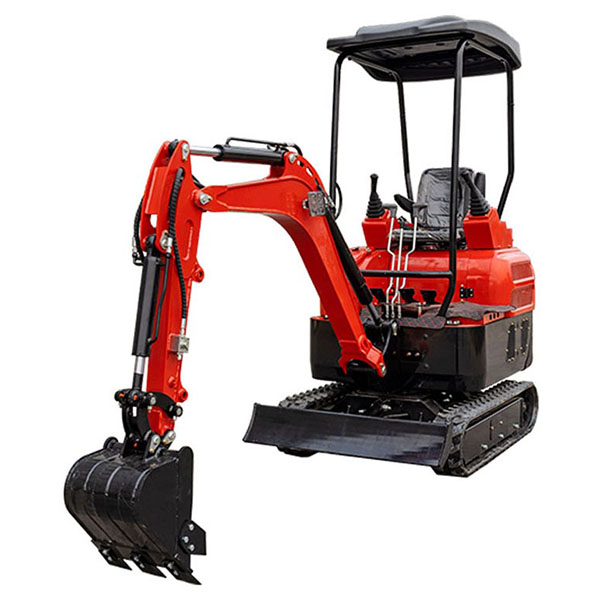

crawler small excavator with cabin 2 ton BD20-1 reliable

The crawler small excavator features a compact size and flexible operation, making it suitable for earthmoving work in confined spaces, landscaping projects, and municipal engineering. It is highly maneuverable and easy to maintain.

Contact Us
Description

Crawler Small Excavator

The crawler small excavator is a compact excavator, which matched china Laidong engine, the boom of excavator can swing to left or right, suitable for different.

Hydraulic Small Excavator with Competitive Prices

Main Features

  • Simple structure in linear type, easy in installation and maintation.
  • Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
  • High pressure double crank to control the die opening and closing.
  • Running in a high automatization and intellectualization, no pollution
  • Apply a linker to connect with the air conveyor, which can directly inline with filling machine.
Technical Parameters
crawler small excavator with cabin 2 ton BD20-1 reliable
Model BD20-1
Overall size
Total length, transportation length 3337, 2597 mm
Total width 1100 mm
Upper width 1053 mm
Total height 2325 mm
track width 180 mm
Track Gauge 920 mm
Minimum ground clearance 119 mm
Tail swing radius 1013 mm
Track ground length 1050 mm
Track length 1545 mm
performance parameter
Working weight 2000 Kg
Bucket capacity 0.04 cubic meters
Power 19kw, 2200rpm
swing speed 12RMP
Grade ability 30 degrees
Working Range
Maximum digging height 2580 mm
Maximum unloading height 1637 mm
Maximum digging depth 2060 mm
Maximum digging distance 3130 mm
Minimum swing radius 1575 mm
Maximum height at minimum swing radius 2075 mm
Main parts
Engine Laidong 385 3TN25
Main valve Beifang
