cx jaw crusher for hard and highly abrasive various ores

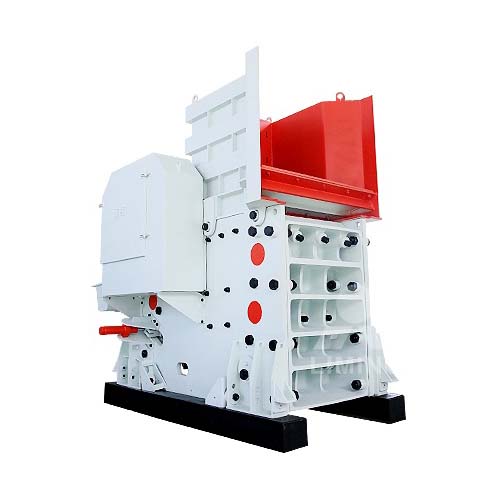

CX Jaw Crusher Overview

CX Jaw Crusher can efficiently perform coarse and medium crushing operations, and is suitable for handling a wide range of materials with compressive strength up to 300 MPa. With advanced design and high quality manufacturing standards, CX series crusher has become one of the popular crushing equipments in the market.

Features of CX Jaw Crusher

1. Optimized crushing chamber structure: Through repeated optimization design, the size of the crushing chamber of CX crusher is increased, with large stroke and steep elbow plate inclination design, which makes the bottom stroke of the crushing chamber larger, the material throughput capacity is enhanced, and the crushing efficiency is greatly improved.
2. Detachable non-welded frame: The frame structure is separated and bolted instead of welded, which avoids the stress concentration generated during the welding process, and the structure is more compact and solid, ensuring the long-term stable operation of the equipment.
3. Double wedge adjusting device: Wedge type discharge opening adjusting device supports mechanical or hydraulic adjustment, which can quickly and accurately adjust the size of discharge opening, simplify the operation and improve the production efficiency.
4. Elastic limit shock absorber: Adopting elastic limit block and rubber shock absorber, it effectively absorbs the peak load of vibration, reduces the impact between the crusher and the foundation, reduces the fatigue damage of the foundation, and prolongs the service life of the equipment at the same time.
5. Integrated motor base: The motor base is integrated into the crusher body, saving installation space; the belt tensioning scheme with pin hinging makes the power transmission more stable and the adjustment easier.
6. High-quality materials and fine machining: Key components such as front wall, back wall, movable jaw body, bearing housing are made of alloy cast steel, and the main shaft is made of forging material that is resistant to high impact load, which improves the durability of the equipment. The main parts are finely machined to ensure high precision and long life.

Working Principle of CX Jaw Crusher

Based on traditional jaw crusher design. The electric motor drives the pulley through the SPC belt, driving the eccentric shaft to rotate, which in turn drives the movable jaw body to swing back and forth up and down. When the movable jaw plate is close to the fixed jaw plate, the volume of the crushing chamber decreases, and the material is squeezed or split to complete the crushing process. When the movable jaw plate moves away from the fixed jaw plate, the volume of the crushing chamber increases and the crushed material is discharged through the discharge opening. In this way, the crusher realizes continuous crushing and discharging of materials to complete the crushing operation.

By optimizing the design of crushing chamber and increasing the stroke, the throughput of material is enhanced and the crushing efficiency is significantly improved. The double wedge adjusting device makes the adjustment of the discharge opening more convenient and quick, and you can choose the mechanical or hydraulic adjusting method according to the actual need, which is convenient for operation and maintenance.

Application Areas of CX Jaw Crusher

• Metallurgical industry: Used for smelting raw materials and ore crushing, suitable for primary crushing of hard ores such as iron ore, copper ore and so on.
• Mining industry: It is used for coarse crushing and medium crushing of ores, and is one of the key equipments in mining.
• Chemical industry: CX jaw crusher can be used to crush various chemical ores and slag in the pretreatment process of chemical raw materials.
• Cement industry: Crushing limestone, quartzite and other raw materials required for cement production.
• Construction industry: In the production of construction materials, CX crusher can handle sand, gravel, crushed stone and many other construction materials.
• Refractory and ceramic industry: It is used for crushing refractory materials, ceramic raw materials, etc. to ensure that the raw materials meet the production requirements.

Advantages of CX Jaw Crusher

1. High-efficiency crushing: Optimized crushing chamber structure and large stroke design significantly improve the crushing efficiency.
2. High durability: The use of high-strength alloy cast steel and forging materials, can effectively resist the high impact load, to extend the service life of the equipment.
3. Convenient maintenance: Simple design, easy to operate, and equipped with efficient discharge opening adjustment device, making equipment maintenance more convenient.
4. Saving space and cost: The integrated motor base design saves installation space and reduces installation and maintenance cost.
