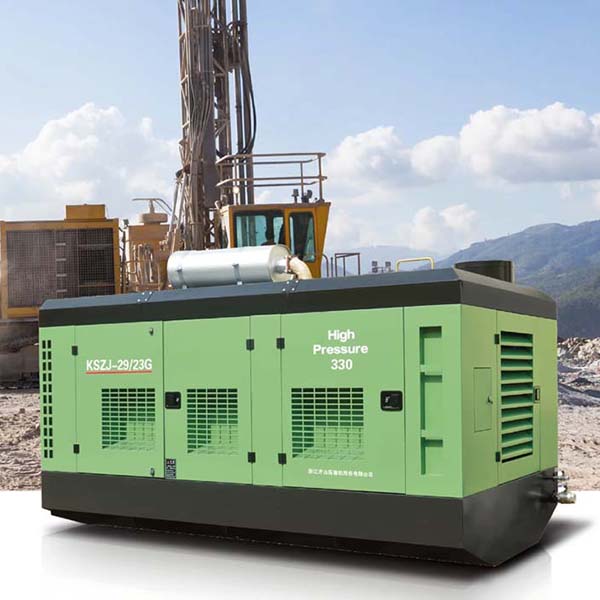

diesel screw air compressor for geothermal exploration

1. high pressure design: the highest design pressure of the equipment can reach 40bar, to meet the demand for high pressure air source for deep well operation.
2. Two-stage compression system: It adopts two-stage compression design with poppet valve to realize flexible design, which improves the compression efficiency and system reliability.
3. Heavy-duty design and high quality bearings: The equipment adopts heavy-duty design and equipped with SKF bearings to ensure long-term stable operation under high loads and harsh environments.
4. High-performance diesel engine: Equipped with Yuchai, Cummins and other heavy-duty diesel engines, it has higher reliability, stronger power and excellent fuel economy, which is suitable for deep wells and other high-load working conditions.
5. Dual working condition switching function: Users can quickly switch between 33 m3/min, 25 bar working condition and 26 m3/min, 35 bar working condition according to the actual demand, which is easy to operate and flexible to adapt to different operational requirements.
6. low-temperature starting system: equipped with fuel heater and water pump, the engine coolant is heated to the appropriate temperature to ensure reliable starting of the diesel engine in cold and plateau environment.
7. after-cooler and vapor separator: ensure the outlet air temperature is not higher than the ambient temperature of 15 °C, suitable for use with equipment with strict requirements on air intake temperature.
8. remote monitoring and control: with remote start-stop, monitoring and positioning system, which is convenient for users to grasp the real-time operating status of the equipment and improve management efficiency.
9. diesel drive: the use of diesel drive, suitable for no external power supply deep well operating environment, to ensure the continuity and reliability of operations.

The working principle of diesel screw air compressor:

Diesel-driven screw air compressor drives the rotor of the screw compressor to rotate through the diesel engine, utilizing the principle of volume change between the rotor teeth and grooves to compress the inhaled air to the set pressure. The specific process includes:

1. suction process: air through the air inlet into the compressor, and the rotor teeth groove contact.
2. compression process: as the rotor rotates, the volume between the teeth and grooves gradually decreases, and the air is compressed.
3. exhaust process: when the air is compressed to the set pressure, it is discharged through the exhaust port for deep well operation.

Application areas of diesel screw air compressor:

1. Deep well operation: Provide high compressed air for deep well drilling, mining and other operations to ensure the normal operation of the equipment.
2. Construction: Provide air source for construction sites, used to drive pneumatic tools and equipment, improve construction efficiency.
3. Mining: Provide power source for mining, drive pneumatic tools, to ensure the safety and efficiency of the operation.
4. Tunneling: Provide compressed air for ventilation, dust removal and equipment drive in tunnel boring process.
5. Agricultural irrigation: Provide power for agricultural irrigation system to ensure the normal operation of irrigation equipment.
6. Industrial production: Provide air source in the process of industrial production, used for control system, automation equipment, etc., to ensure the stable operation of the production line.
