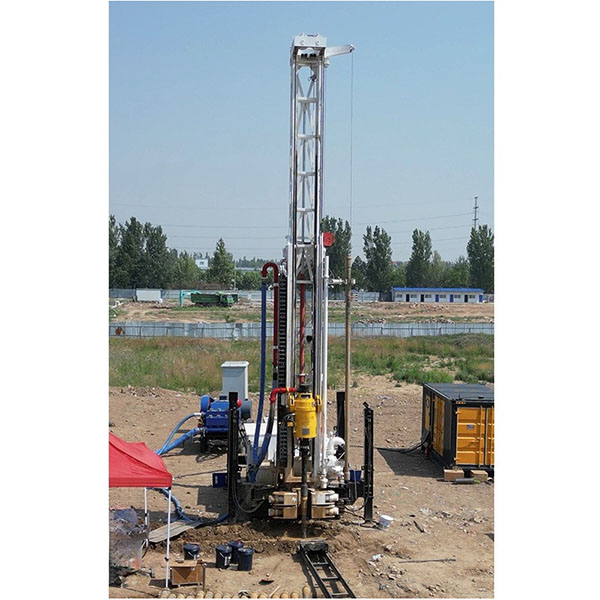

Truck-Mounted Electric Top Drive Drilling Rig for Emergency Rescue

This truck-mounted electric top drive drilling rig is specially developed for emergency rescue scenarios, integrating advanced technologies such as rapid response, powerful performance, and intelligent automation. Through its vehicle-mounted main unit and modular structural design, it significantly enhances on-site emergency response speed and drilling capabilities, flexibly adapting to various complex working conditions and meeting the needs of both rescue operations and multiple engineering drilling tasks.

Main Features of the Electric Top Drive Drilling Vehicle

• Rapid Response and Modular Design: Utilizes a vehicle-mounted main unit combined with independent modules, providing strong rapid response capabilities. From receiving a task to starting drilling on-site takes only a few hours, greatly shortening the rescue initiation time.
• Large Diameter and Strong Power: Supports drilling diameters up to 1.2 meters, with a lifting and bearing capacity of up to 1800kN, easily achieving efficient formation of large-diameter rescue holes.
• High Torque Top Drive Performance: Continuous drilling torque of 22kN.m, maximum torque of 35kN.m, and maximum travelling block speed of 0.667m/s enable fast drilling and hole formation.
• Multi-Process Compatibility: Can be equipped with a drilling pump or air compressor, supporting various drilling processes such as mud circulation, air lift reverse circulation, direct and reverse circulation DTH hammer drilling, and more to suit complex working conditions.
• Precise Feed and Deviation Control: Features “free-fall” drilling and ≤3kN constant pressure automatic feed accuracy, effectively controlling well deviation and achieving fast and accurate penetration.
• Energy Saving and High Efficiency: All core equipment adopts AC variable frequency electric drive and rare-earth permanent magnet synchronous direct-drive technology. Grid power operation can save up to 60% energy, diesel generator operation saves 10% to 30%, making it environmentally friendly and significantly reducing carbon emissions.
• Intelligent Monitoring and Safety Protection: Integrated digital monitoring system and multiple safety protection programs provide real-time monitoring of downhole and critical equipment data, effectively preventing downhole and wellhead operation accidents.
• Efficient Drill Handling: Two-speed winch combined with lifting rings and elevators optimizes the workflow, improves efficiency, and extends the service life of drilling tools.
• Automated and User-Friendly Operation: Dual-position driller’s cabin design and water-cooling noise reduction system, support for constant pressure/speed auto-feed and fully automated drill pipe handling, greatly reduce manual labor intensity, allowing high-efficiency operation with minimal personnel.

Application Areas

The truck-mounted electric top drive drilling rig plays a vital role in mine rescue operations and is also suitable for drilling coal mine grouting holes, geothermal wells, and oil and gas wells within 3,000 meters, as well as large-diameter borehole drilling within 1,000 meters. Its exceptional power and adaptability enable efficient and safe drilling in large-scale projects, complex geological conditions, and emergency rescue situations.
