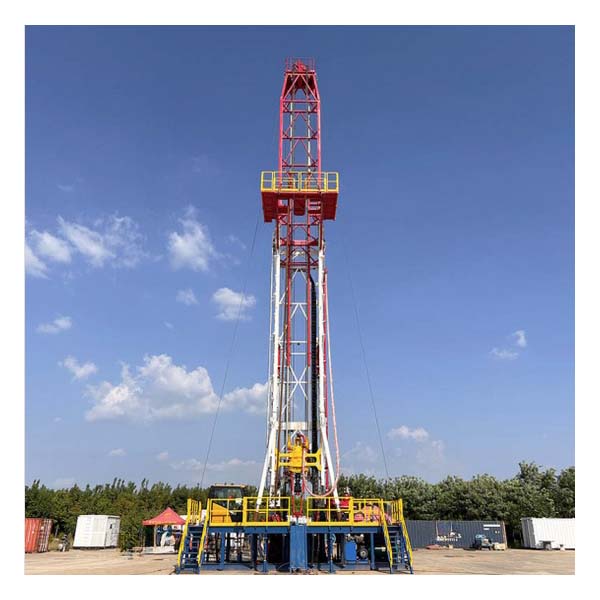

electric water well drilling rig with tower structure

The electric water source drilling rig adopts electric drive, features a compact structure and modular design, and offers advantages such as high efficiency, energy saving, and easy operation. It is suitable for efficient drilling and construction of various water wells and groundwater resources.

Contact Us
Description

Tower-Type Electric Water Source Drilling Rig

The tower-type electric water source drilling rig is a water well drilling device that combines modern design with high performance. This rig uses electric drive and a modular structure, which greatly enhances construction convenience and operational efficiency, making it particularly suitable for water source projects requiring high standards of transportation and installation.

Main Features of the Tower-Type Electric Water Source Drilling Rig

  • Modular Structure Design: The winch and rotary table adopt independent modular designs, resulting in a compact size and structure. This makes disassembly and transportation easy, enabling adaptation to various construction environments.
  • Diverse Configurations: Different models of petroleum rotary tables can be optionally equipped as needed, together with inertia brakes and roller bushings to meet a variety of drilling requirements.
  • High-Performance Winch: Features an extra-wide open drum and Lebus grooving, which significantly extends the service life of the wire rope. It is also equipped with multiple braking and safety devices, emergency lifting systems, and automatic drilling feed functions, enhancing both operational safety and automation.
  • Intelligent Electrical Control System: Internationally renowned electrical components are selected for high system reliability. The control system supports three mutually backup control modes, and multiple safety protection functions can be flexibly set according to actual working conditions.
  • High Efficiency and Energy Saving: Offers high transmission efficiency and low energy consumption, saving much more energy compared to traditional rigs.
  • Low Maintenance Cost: Simple structure, low failure rate, fewer wearing parts, and minimal daily maintenance workload.
  • Stepless Speed Regulation: Uses soft start and stepless speed regulation technology, ensuring minimal impact during equipment start-up and speed adjustment, thus improving operational experience.
  • Digital Centralized Control: Enables digital centralized control, further enhancing operational safety and reliability.

Applications

The tower-type electric water source drilling rig is widely used for domestic water wells, agricultural irrigation, geothermal development, and industrial water extraction projects. Its flexible structure and efficient electrical control system make it capable of handling drilling tasks in urban, rural, mountainous, and various complex working conditions.

Technical Parameters
electric water well drilling rig with tower structure
Model DB-20 DB-25 DB-30 DB-35 DB-40
Max Drilling Depth (φ89 Drill Pipe) (m) 2000 2500 3000 3500 4000
Max Hook Load (kN) 800 960 1350 1700 1800
Max Drill String Weight (t) 55 65 75 90 100
Travelling Block Hook Lifting Speed (m/s) 0-0.5 (Stepless speed regulation) 0-0.5 (Stepless speed regulation) 0-0.7 (Stepless speed regulation) 0-0.7 (Stepless speed regulation) 0-0.9 (Stepless speed regulation)
Number of Ropes in Travelling System 8 (4x5) 8 (4x5) 10 (5x6) 10 (5x6) 10 (5x6)
Drilling Wire Rope Diameter (mm) 22 24 28 28 29
Max Fast Rope Tension (kN) 100 120 135 170 210
Mast Height (m) 27 29 31 31 41
Mast Type A Type K Type K Type K Type K Type
Base Type Box Block Type
Base Height (m) 2/2.8/4/4.5 Optional
Winch Winch Fast Rope Speed (m/s) 0-4 0-4 0-7 0-7 0-9
Winch Fast Rope Max Lifting Force (kN) 100 120 135 170 210
Drum Rope Capacity (m) Total: 350 Total: 380 Total: 500 Total: 500 Total: 600
Drive Mode Frequency Conversion Independent Drive
Other Configurations Hydraulic Disc Brake, Auto Feed Drilling, Emergency Lifting
Rotary Table Rotary Table Speed (Forward/Reverse) 0-200 (Stepless speed regulation)
Max Rotary Table Torque (N.m) 13700 13700 13700-27500 13700-27500 22500-27500
Rotary Table Opening Diameter (mm) Ф445 Ф445 Ф445-Ф698 Ф445-Ф698 Ф520-698
Max Static Load of Rotary Table (kN) 1350 1350 1350-4500 1350-4500 3150-4500
Drive Mode Frequency Conversion Independent Drive
Auto Feed Drilling Feed Drilling Speed (m/s) 0-0.01 (Travelling Block Hook Speed)
Feed Drilling Accuracy (kN) ≤3
Feed Drilling Mode Constant Pressure or Constant Speed
