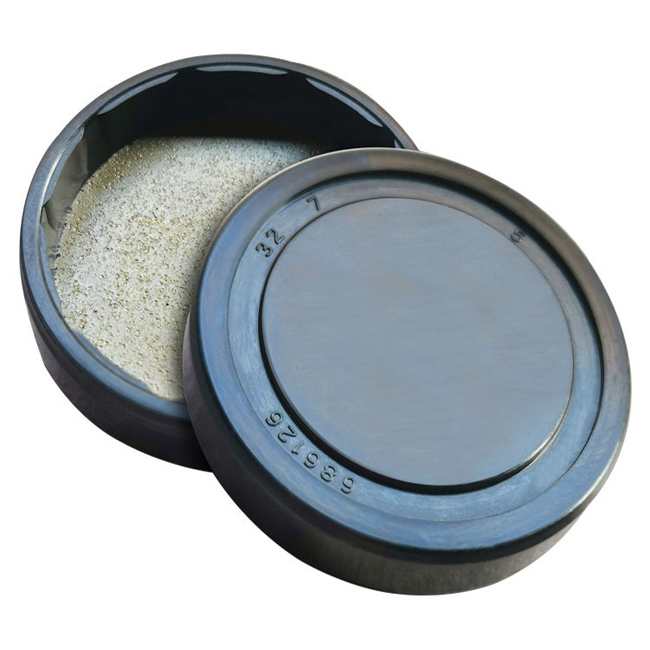

end cap oil seal VK type with metal skeleton for speed changer

VK type skeleton oil seals, often also known as end cap oil seals or cap oil seals, are specially designed sealing elements that are mainly used to prevent lubricant or liquid leakage, as well as to prevent external contaminants from entering the interior of the equipment.

Contact Us
Description

VK cap oil seal, also known as end cap oil seal, is a rubber and metal composition, used for lubricating oil, water, glaze and other media sealing.

1. Structure and Composition

Skeleton:

  • Metal Skeleton: The skeleton of VK type oil seal is usually made of metal material, such as steel or iron. This metal skeleton provides structural support and enhances the durability and strength of the seal, ensuring that it maintains a stable shape during operation.
  • End Cap Construction: The skeleton is designed in the form of an end cap or bonnet, which usually covers the outer edge of the seal.

Seal lip:

  • Material: The sealing lip is usually made of elastic material, such as rubber, Viton, etc. It is in direct contact with the rotating shaft or other moving parts to form a sealing effect.
  • Design: The single lip design makes it simple and efficient for applications requiring a basic seal. The sealing lip can be designed in different shapes to suit various sealing needs.

End caps or caps:

  • Structure: The end cap portion of the oil seal usually covers the outside of the sealing lip, which serves to protect the sealing lip and at the same time enhances the overall structural strength of the oil seal.
  • Function: The end cap design not only improves the mechanical strength of the seal, but also prevents external contaminants, such as dust and dirt, from coming into direct contact with the seal lip.

2. Feature

End cap design:

  • Protection: The design of the end cap or cap protects the sealing lip, prolongs the service life of the oil seal and prevents external contaminants from affecting the sealing performance.
  • Enhanced structure: The metal skeleton and end cap design enhances the structural strength of the oil seal, making it perform better under high pressure and harsh environment.

Sealing Performance:

  • EFFECTIVE SEALING: Despite the single-lip design, proper materials and manufacturing processes ensure that good sealing performance is provided.
  • Protective: The additional protection of the end caps makes Type VK oil seals superior in preventing contamination.
  • Wide range of applications: VK type Simmerring oil seals can be used in a variety of mechanical equipment and automotive components, especially those with high sealing requirements or in harsh working environments.

3. Application Scene

  • Automotive industry: used in engine, transmission, differential and other components to prevent lubricant leakage and protect sealing lips from contaminants.
  • Industrial equipment: such as pumps, compressors, reducers, etc., for mechanical equipment that requires reliable sealing protection.
  • Mechanical equipment: widely used in a variety of mechanical equipment, especially in the more severe working environment, such as high temperature, high pressure or pollutants.
Technical Parameters
Item No. Shape Dimension
686254 VK 12*4
686255 VK 14*4
686419 VK 14*6
686825 VK 20*7
686951 VK 22*7
686958 VK 24*7
686657 VK 28*7
686123 VK 28.2*5
686136 VK 28.2*5
686658 VK 30*7
686126 VK 32*7
686127 VK 38*7
686252 VK 40*8
686972 VK 40*7
688024 VK 45*7
686481 VK 47*7
688728 VK 52*10
686528 VK 52*7
686113 VK 54*10
686155 VK 55*10
680592 VK 62*10
686383 VK 62*8
686465 VK 62*7
686491 VK 68*8
686990 VK 70*11.5
686153 VK 72*10
686518 VK 72*7
686522 VK 72*8
686490 VK 75*8
680706 VK 80*10
686112 VK 80*10
686510 VK 80*8
686183 VK 85*7
686492 VK 85*10
686659 VK 90*8
686468 VK 92*10
686384 VK 110*12
686493 VK 120*10
686489 VK 130*12
