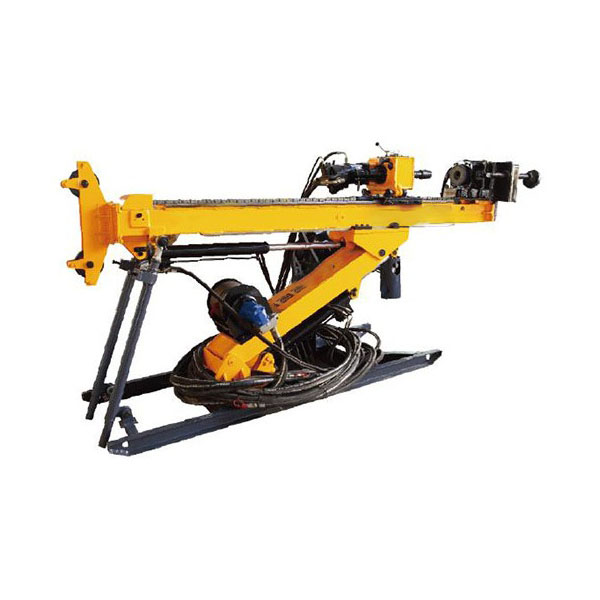

The Fully Hydraulic Tunnel Drilling Rig

The fully hydraulic tunnel drilling rig is a highly efficient drilling device specially designed for mining tunnels and underground engineering. It can operate flexibly in confined spaces, making it suitable for exploration and construction in complex geological environments, and is widely used in various underground engineering projects.

Features of the Fully Hydraulic Tunnel Drilling Rig

  • The rig adopts a split structure, making it lightweight, easy to transport, and convenient for operation in narrow spaces.
  • The power unit uses an explosion-proof motor combined with an advanced hydraulic system to ensure safety and reliability.
  • The hydraulic chuck is designed to enable quick clamping and releasing of the drill rod, and features power-off protection.
  • The mast can slide and extend, closely aligning with the foundation to enhance operational stability and drilling accuracy.
  • It offers multi-angle drilling capability; the mast and swing arm can be flexibly adjusted to meet various drilling requirements.
  • The power head provides a wide speed range and strong torque, suitable for operations in different strata.

Application Fields

  1. Geological exploration of mines and tunnels.
  2. Construction of railway and highway tunnels.
  3. Underground projects for water conservancy and hydropower.
  4. Underground space development and engineering reinforcement.
  5. Gas extraction and safety hole drilling in coal mines.
Technical Parameters
full hydraulic tunnel drilling rig for underground mining
Model BYKD-3B
Item Unit Parameter Remarks
Drilling Capacity Drilling Direction / Vertical Downward Vertical Upward
BQ Drill Rod (1.5m) m 400 200 φ55.6mm
NQ Drill Rod (1.5m) 300 150 Φ69.9mm
HQ Drill Rod (1.5m) 200 100 φ88.9mm
Motor Model / YE3-225M
Rated Power kW 45
Rated Speed r/min 1480
Power Head Max Rotation Speed r/min 1200
Max Torque N·m 855
Speed Range r/min 430 to 858 Ⅰ Gear
595 to 1200 Ⅱ Gear
Corresponding Torque N·m 855 to 438 Ⅰ Gear
630 to 316 Ⅱ Gear
Main Shaft Through Hole Diameter mm Top Drive Type
Travel Distance mm 275
Feeding Mechanism Feeding Stroke mm 1800
Max Lifting Force kN 60
Max Feeding Force kN 30
Mast Drilling Angle degree -90 to +90
Sliding Stroke mm 1300
Wire Rope Hoist Single Rope Lifting Force kN 8 First Layer
Lifting Speed m/min 160 First Layer
Wire Rope Length m 350
Wire Rope Diameter mm 6
Orifice Holder Applicable Drill Rod / BQ, NQ, HQ, PQ
Through Hole mm Φ124
Dimensions (L x W x H) Main Machine mm 3456x1290x1620
Power Station mm 1910x1080x1180
Control Cabinet mm 860x400x1080
Weight Main Machine kg 1450
Power Station kg 1140
Control Cabinet kg 130
