gasoline mini excavator

gasoline mini excavator with koop192 engine BD10B 1000 kg

The gasoline mini excavator features a compact design and flexible operation, making it ideal for small-scale earthmoving tasks in gardens, farms, and urban construction projects. It is easy to start, maintain, and maneuver in narrow spaces.

Contact Us
Description

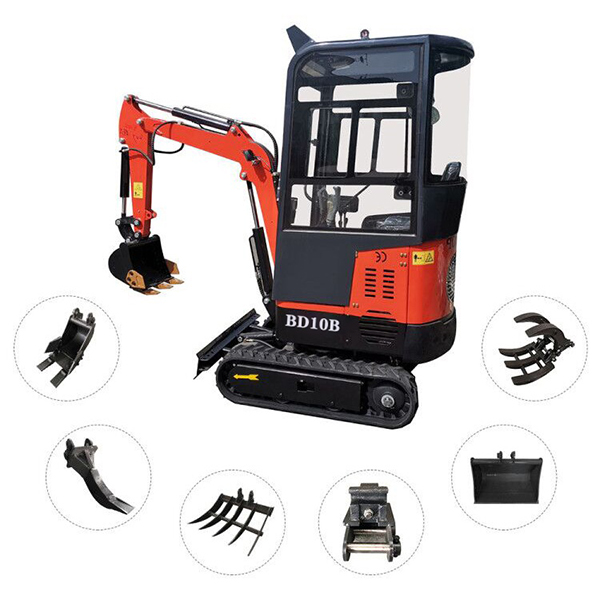

Gasoline Mini Excavator BD10B 1000kg (EPA, CE Certified)

Customer can choose Red, Yellow or Blue color. We also accept to be customized.

Gasoline Mini Excavator is widely used in works, such as small projects, gardens, farmland, municipal works, and vegetable greenhouse. It features a compact design, low oil consumption, and is easy to maintain.

Mini Excavator Advantages:

  • Hydraulic pump is easy to maintain, long life
  • The retractable undercarriage lets you access and work in the tightest areas.
  • Rubber track, no damage to cement or tile floor.
  • Dig-to-blade and dozer float features allow for easy to be cleaned up.
Technical Parameters
gasoline mini excavator with koop192 engine BD10B 1000 kg
Model BD10B
Operating Weight 1000 kg
Digging Bucket Capacity 0.025 cbm, 120kg
Bucket width 380 mm
Engine Model Koop 192F
Optional Engine Briggs and Stratton KUBOTA
Bore stroke Single cylinder, fan cool
Rated power 7Kw, 30000r/min
Displacement 6.8 ml/r
Travel speed 1.5 Km/h
Dimensions
Overall dimensions 2900 x 930 x 2180 mm
Wheelbase 910 mm
Total length of track 1230 mm
Platform ground clearance 380 mm
Platform back turning radius 784 mm
Chassis width 896 mm
Track width 180 mm
Chassis ground clearance 132 mm
Track height 320 mm
Working Range
Maximum digging depth 1750 mm
Maximum Vertical digging depth 1550 mm
Maximum diging height 2610 mm
Maximum dumping height 1850 mm
Maximum digging radius on ground 1330 mm
Maximum rotation radius 1330 mm
Maximum Upgrade height of bulldozer blade 345 mm
Maximum Digging depth of bulldozer blade 255 mm
