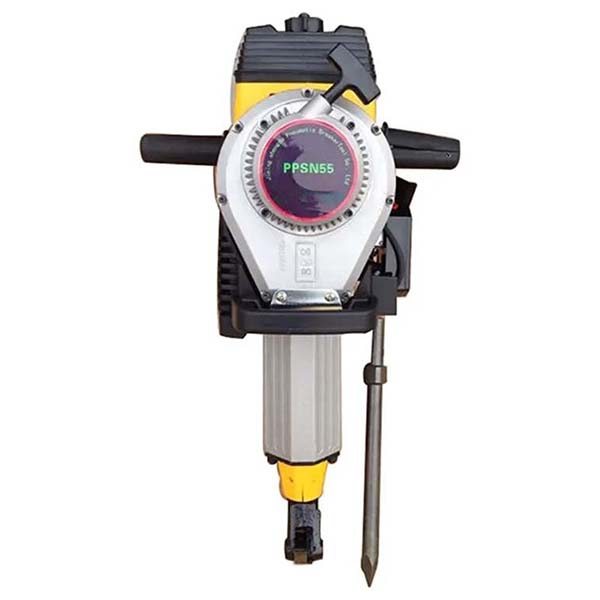

gasoline powered breaker for concrete demolition PSN55

A gasoline powered breaker is a portable and efficient demolition tool suitable for locations without electricity or compressed air. It can easily break concrete, asphalt, and other hard surfaces, and is widely used for roadwork, construction, and emergency operations in outdoor environments.

Description

gasoline powered breaker

gasoline powered breaker is a kind of impact type vibration small, lightweight, can be used during the train running interval time, specially for each type of track line and turnout under the sleeper sub-ballast tamping machinery and equipment. It can satisfy in the train running interval time to each type of track line and the turnout under the pillow ballast tamping operation use request. Can also be used for highway construction and civil engineering by replacing different tools, all kinds of crushing, shoveling, digging, tamping and other work.

Features of gasoline powered breaker

  • Small size andlightweight: The whole machine is small in size and light in weight, and it is convenient to get on and off the road, which can effectively guarantee the safety of traveling in the process of operation.
  • High reliability: A variety of special design to ensure the high reliability of the whole machine, the working parts of the air hammer stroke system, excitation force, pounding effect is good, can meet the scene under various conditions on the line and turnout pillow under the ballast pounding operation use requirements.
  • Powerful engine: Adopts special high shock resistance performance, high power electronic automatic speed limit engine, excellent performance, reliable.
  • Excellent damping performance: It has the excellent damping performance of the spring damping type bracket damping mechanism, damping effect is good, can effectively protect the health of the use of personnel.
  • Improved efficiency andreduced labor: To avoid the pickaxe tamping operations pickaxe nest, backfill roadbed and other operations, can greatly improve operational efficiency, reduce the labor intensity of field workers.
Technical Parameters
gasoline powered breaker for concrete demolition PSN55
Model PPSN55
Engine Model 1E45F-3A
Engine Type Two-stroke, single cylinder, forced air-cooling
Displacement 80 cc
Max. Output power 2.0/4400 kw /r/min
Fuel Consumption ≤480 g/kw.h
Impact frequency 1300 / min
Impact energy 55 J
Clutch Revolution 2500 r/min
Work Revolution 4250 r/min
Mixing ratio of gasoline and
lubrication oil (in volumes)
25~30:1
Fuel consumption 1.2 L/h
Shank size 27x80 mm
Product size 840*470*350 mm
Packing size 880*500*390 mm
Net Weight 26 kg
Gross Weight 29 kg
Packing carton
Sets/20 container 168
