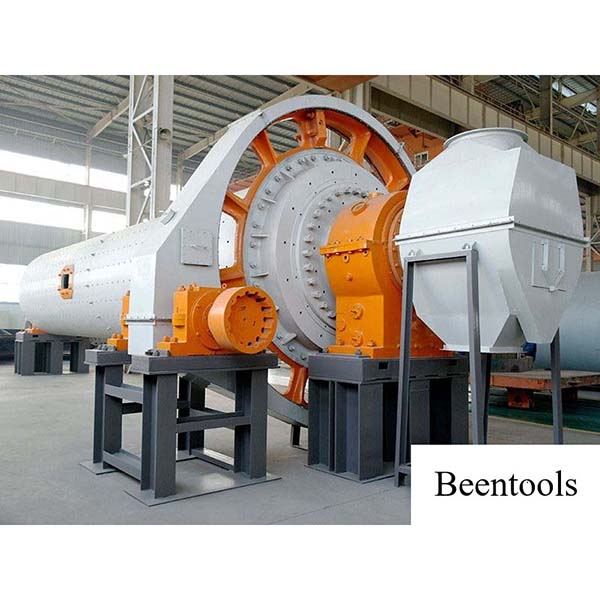

gypsum ball mill for building material making process

Gypsum ball mill is specially designed for the soft texture and easy-to-grind properties of gypsum. By combining traditional energy-saving ball mill technology with advanced engineering improvements, it achieves both high-efficiency grinding and energy-saving, environmentally friendly advantages. It is an essential processing equipment for the production of gypsum products, gypsum mortar, and related applications.

Features of gypsum ball mill:

1. Compact structure, stable operation, easy operation and convenient maintenance.
2. The grinding fineness is adjustable to meet the requirements of gypsum powder of different fineness grades.
3. The inner lining of the cylinder is made of wear-resistant material, which effectively prolongs the service life of the equipment.
4. Auxiliary equipments, such as powder selector and dust collector, can be equipped according to requirements to realize continuous production.

Advantages of gypsum ball mill:

1. High efficiency energy consumption ratio: because gypsum is easy to grind, low energy consumption and high output in the grinding process, the unit energy consumption is lower than the ordinary ball mill.
2. Strong adaptability: not only applicable to the processing of ordinary construction gypsum powder, but also according to different needs, add lime, additives for gypsum modification, the preparation of special-purpose gypsum materials.
3. Flexible process: it can be matched with hot air system to realize drying and grinding at the same time, which is suitable for gypsum raw materials with slightly high moisture content.
4. Equipment maturity and stability: ball mill technology is mature, the equipment has been optimized by years of application, high reliability, easy maintenance, long-term stable operation.

Working principle of gypsum ball mill:

Gypsum ball mill adopts a horizontal rotary cylinder. The motor, through the reducer, drives the large gear to rotate the cylinder at a uniform speed. Gypsum raw material enters the cylinder via a feeding screw device, and the cylinder contains steel balls of reasonable grading. As the cylinder rotates, the steel balls are lifted to a certain height before falling, generating strong impact and grinding force to crush the gypsum particles into fine powder. As grinding continues, the refined gypsum powder moves toward the discharging end and is released through the discharging grate plate. If equipped with a hot air system, drying is completed synchronously, ensuring the finished product moisture is controlled within a reasonable range.

Application fields of gypsum ball mill:

1. Construction material field: production of gypsum board, gypsum block, gypsum mortar, decorative gypsum products.
2. Construction chemicals industry: used for the preparation of self-leveling gypsum mortar, lightweight gypsum, fast hard gypsum and other high-performance products.
3. Cement and concrete additives: processing of gypsum powder as a component of cement retarder.
4. Agriculture and environmental protection field: the use of gypsum powder to improve soil structure, or used in wastewater treatment and other fields.
