hand road roller

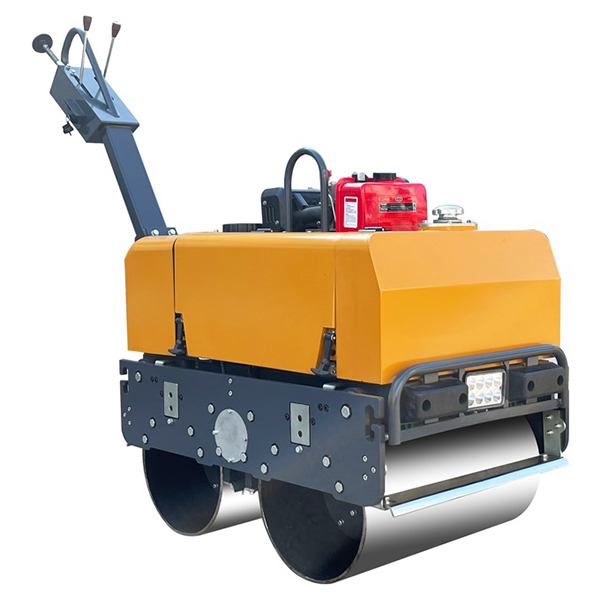

hand road roller with double drum vibratory BH60 640 kg

This 640 kg manual road roller is compact and easy to operate, making it suitable for ground compaction in narrow areas and small projects. With a sturdy structure, it is convenient to transport and simple to maintain, making it an excellent choice for gardens, sidewalks, and similar locations.

Contact Us
Description

hand road roller Features

  • Equipped with famous brand power, quality assurance, superior performance
  • Overall spraying, wide field of vision, beautiful and generous
  • Small working radius, can work in narrow areas
  • Adopt domestic famous brand hydraulic pump, motor, high quality and high stablity
  • Lengthened armrest, easy to turn, labor-saving
  • The transmission adopts Japanese FYH Seiko bearings to ensure the working performance of the whole machine
Technical Parameters
hand road roller with double drum vibratory BH60 640 kg
ModelBH60BH60CBH60CS
Weight
Operating Weight(kg)640
Size
Full width(mm)700
Full length(with armrests flat)(mm)2350
Full height(armrest upright)(mm)1690
Package dimensions(mm)1480x810x1130
Drum width(mm)650
Drum diameter(mm)380
Start upElectric Start
Drive
Engine brandHONDACHANGHAI, KIPORFuzhou Golden Flying Fish
Engine modelGX390186FRD90N-1
Engine TypeGasoline four strokeDiesel four strokeDiesel water cooling
Number of cylinders1
Output Power(hp/kw)13, 9.79, 6.68, 5.88
Rotating speed(rpm)360036002400
Electrical equipment(V)12
Driving methodVariable displacement piston pump variable speed dual wheel drive
Vibration formMechanical transmission electromagnetic clutch
Walking characteristics
Speed(km/h)0 to 5
Theoretical climbing ability(%)30
Brake
Service brakeVariable plunger pump
Vibration system
vibrating drumFront wheel+rear wheel
vibration frequency(hz)55
vibration amplitude(mm)0.5
Exciting force(kn)30
Sprinkler system
FormGravity spray water
Capacity
Fuel capacity(L)6.53.510
Hydraulic tank capacity(L)25
Water tank capacity(L)40
