heavy duty series cottered type roller chain for your system

Heavy Duty Series Cotter Pin Type Roller Chain is engineered to withstand large loads, making it ideal for demanding mechanical transmission systems. Its optimized structure and material selection ensure efficient power transmission and exceptional wear resistance, even under heavy-duty conditions.

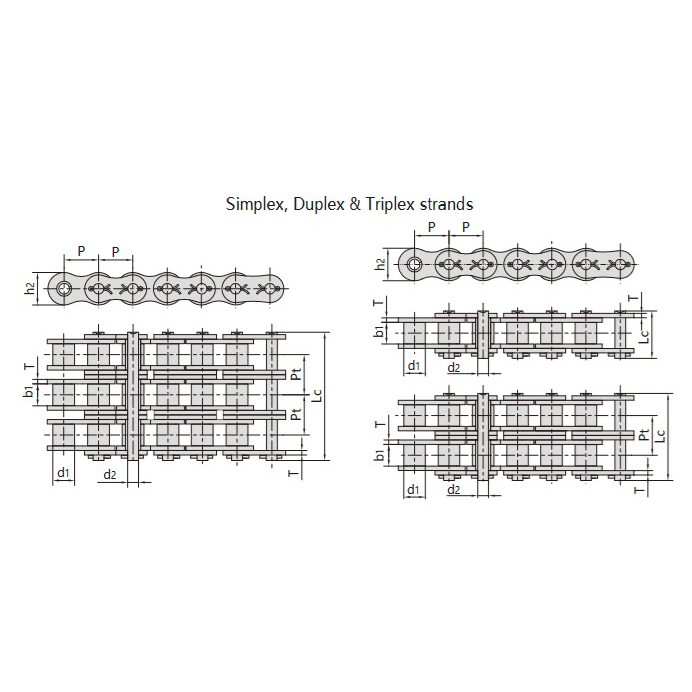

Structural Features

• Inner Chain Plate & Sleeve: Interference fit improves load capacity and stability.
• Outer Chain Plate & Pin: Interference fit ensures secure assembly and high strength.
• Roller & Sleeve, Sleeve & Pin: Clearance fit allows relative deflection and free rotation, minimizing friction and wear.
• Roller: Mounted on the sleeve, rolls along sprocket tooth profile for smoother, more efficient transmission.
• Cotter Pin Design: Allows precise adjustment and secure fixation, enhancing chain safety and reliability.

Design Principle & Performance

• Optimized link geometry and high-quality materials for superior load-bearing capacity.
• Heat treatment processes increase durability and longevity under heavy loads.
• Efficient transmission performance with minimized wear and reduced friction.

Key Advantages

• High Load Capacity: Suitable for heavy machinery and high-load conveyor systems.
• Enhanced Wear Resistance: Maintains performance and service life in tough operating conditions.
• Stability & Safety: Cotter pin design ensures secure assembly and reliable operation.
• Efficient Power Transmission: Rollers reduce friction, improve efficiency, and minimize wear on sprocket teeth.

Applications

• Heavy machinery
• Logistics conveyor systems
• Industrial transmission systems requiring robust, long-lasting chains

The Heavy Duty Series Cotter Pin Type Roller Chain is the preferred solution for challenging transmission tasks, offering unmatched strength, durability, and reliability for industrial applications.
