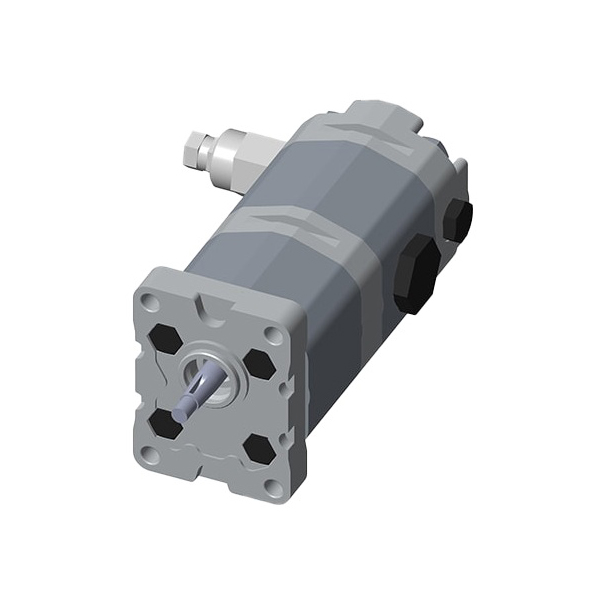

high and low pressure gear pumps

high and low pressure gear pumps for hydraulic systems

High and low pressure gear pumps are a common type of multi-stage hydraulic pumps, which optimize the pressure supply to the hydraulic system by integrating high and low pressure chambers in the same pump body.

Contact Us
Description

High and low pressure gear pumps use an internal gear transmission mechanism to convey liquids, ensuring a simple structure, high reliability, and stable flow. Their flexible design and robust performance make them ideal for a wide variety of industrial, engineering, and agricultural applications.

Technical Parameters

  1. Displacement per revolution: 0.8 – 8 cm³/rev
  2. Direction of rotation: D (clockwise), S (counterclockwise)
  3. Minimum speed: 1000 rpm
  4. Maximum speed: 3500 rpm
  5. Peak pressure: 250 bar

Parameter Details

  1. Displacement per revolution: Indicates small to medium flow rates (0.8 – 8 cm³/rev).

    • Small displacement for high pressure, low flow applications (e.g., fixtures, locking devices).
    • Large displacement for low pressure, high flow scenarios (e.g., rapid hydraulic cylinder extension).
  2. Direction of rotation: D (clockwise) or S (counterclockwise) affects fluid flow direction/output.

    • Forward for normal oil supply.
    • Reverse for circuit switching or reverse oil supply.
    • Ideal for bi-directional hydraulic systems.
  3. Minimum speed: 1000 rpm.

    • Ensures smooth operation in high-speed environments.
    • Supports quick starts, e.g., robotic arms or short-time working equipment.
  4. Maximum speed: 3500 rpm.

    • High-efficiency flow output for fast response systems.
    • Industrial automation, high-pressure washers, emergency hydraulic control.
  5. Peak pressure: 250 bar.

    • Stable performance under high-load conditions.
    • Suited for heavy-duty equipment and high-pressure applications.

Performance Advantages

  1. High efficiency: Up to 3500 rpm for high flow rates and responsiveness.
  2. Versatility: Supports both clockwise and counterclockwise rotation for flexible hydraulic switching.
  3. High pressure capability: Peak pressure up to 250 bar for demanding hydraulic systems.
  4. Flexible displacement: Suitable for both precision control and high-flow operations.

Typical Application Scenarios

  1. Industrial machinery: Hydraulic presses, injection molding, automated assembly lines.
  2. Engineering machinery: Excavators, bulldozers, loaders.
  3. Agricultural machinery: Seeding machines, tillage equipment, hydraulic drive units.
  4. Cleaning equipment: High-pressure cleaners, spray systems.
  5. Marine systems: Hydraulic lifting platforms, helm systems.
