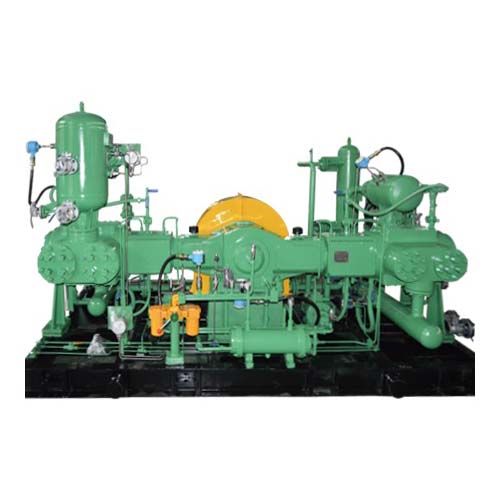

hydrogen fueling compressor for hydrogen cylinders

This equipment can be customized to match specific user requirements and working conditions, making it ideal for hydrogen refueling stations, hydrogen production, hydrogen storage, and hydrogen charging applications.

Hydrogen Fueling Compressor Features

1. Flexible power range: Available with motor powers from 3 kW to 220 kW, meeting needs from small refueling stations to large industrial projects.
2. Customized inlet and exhaust pressures: Inlet and exhaust pressures can be tailored to application requirements, ensuring stable and efficient hydrogen compression for each site.
3. Multi-stage compression design: Supports 1 to 3 compression stages, adapting to different hydrogen flow and pressure requirements for optimal performance.
4. Digital simulation design: Advanced digital simulation and pulsation calculation enable precise control of compression parameters, ensuring stable, efficient, and low-vibration operation.
5. Large displacement capacity: Single compressor displacement up to 2000 Nm³/h, handling large-scale hydrogen delivery and filling tasks efficiently.
6. Skid-mounted design: Modular, skid-mounted structure allows easy installation, transport, and deployment in various environments, especially refueling stations and storage facilities.

Working Principle of Hydrogen Fueling Compressor

The compressor uses multi-stage, volumetric compression to raise hydrogen from low to high pressure. Hydrogen enters and is progressively compressed at each stage by mechanical components (pistons, screws, or diaphragms), reducing the gas volume and increasing pressure.

Digital simulation allows accurate control of parameters like airflow, pressure, and temperature, optimizing efficiency and reducing pulsation and vibration. Pulsation calculations further stabilize the hydrogen supply.

The skid-mounted, modular system is easy to deploy and maintain. The intelligent control system enables real-time adjustment of operating parameters for efficient and reliable operation.

Application Areas of Hydrogen Fueling Compressor

1. Hydrogen refueling stations: Compresses hydrogen to the required pressure for rapid fuel cell vehicle refueling.
2. Hydrogen production industry: Compresses generated hydrogen for high-pressure storage and transportation.
3. Hydrogen storage and transportation: Efficiently compresses hydrogen for long-term, high-pressure storage and long-distance transport.
4. Energy storage and scheduling: Supports hydrogen as an energy storage medium in new energy systems for emergency power supply and grid balancing.
5. Gas filling and packaging: Provides efficient hydrogen cylinder and tank filling for industrial gas suppliers.
6. Aerospace: Delivers high-purity, high-pressure hydrogen for liquid hydrogen storage and aerospace applications.
7. Scientific research and experiments: Supplies precisely controlled hydrogen for laboratory and materials experiments.
