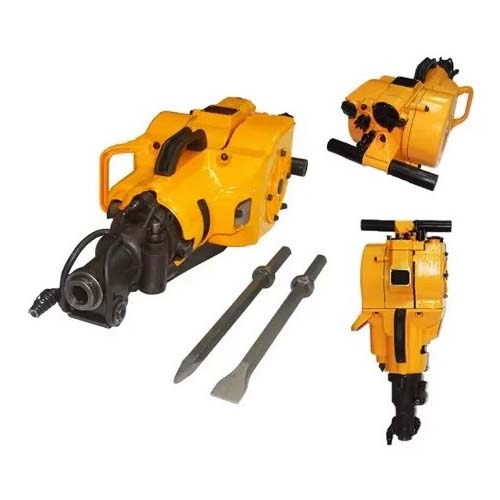

internal combustion breaker for mining tasks YN27P

An internal combustion breaker is a portable breaking device powered by a gasoline engine, suitable for breaking concrete, asphalt, and other hard materials in environments without electricity or compressed air. It is widely used in field construction, emergency rescue, and mining operations.

Description

Introduction

The internal combustion breaker is a highly efficient breaking device powered by gasoline, capable of operating independently without external power or compressed air. Whether used for fieldwork or urban construction, it can flexibly adapt to various complex conditions, providing users with a convenient operating experience.

Main Features of Internal Combustion Breaker

  • With a compact structure and light weight of only 25 kilograms, the internal combustion breaker is extremely easy to carry and transport.
  • Its ergonomic design ensures simple and labor-saving operation, allowing for long-term continuous work and significantly improving efficiency.
  • The components are highly compatible with similar products on the market, making maintenance and servicing more convenient.
  • It is widely adaptable and can operate stably even in environments lacking electricity or compressed air.

Application Fields

The internal combustion breaker is suitable for a variety of scenarios, including infrastructure construction, mining operations, road and railway maintenance, quarry work, defense engineering, demolition of concrete and asphalt pavements, bridge repairs, geological exploration, emergency rescue, piling, tent installation, and grounding rod construction. It is an excellent device for engineering projects and emergency rescue operations.

Technical Parameters
internal combustion breaker for mining tasks YN27P
Model YN27P
Weight of the main machine 25 kg
Overall dimension 746x315x229 mm
Engine power consumption 2 kw
Rotating speed of engine ≥2450 r/min
Type of engine single cylinder, air cooled two strokes
Type of carburetor hand needle valve, no floating type
Ignition system Controllable silicon contactless system
Cylinder Diameter x Stroke of piston 58x70 mm
Displacement of engine piston 185 cm3
End of drill rod dimensions hexagonal 22x108 mm
Tank capacity 1.14 L
Mixing ratio of gasoline and
lubrication oil (in volumes)
7:1
Clearance of Spark plug 1.5 mm
Fuel consumption 1.2 L/h
Shock frequency ≥2450bpm
Impact energy ≥45J
