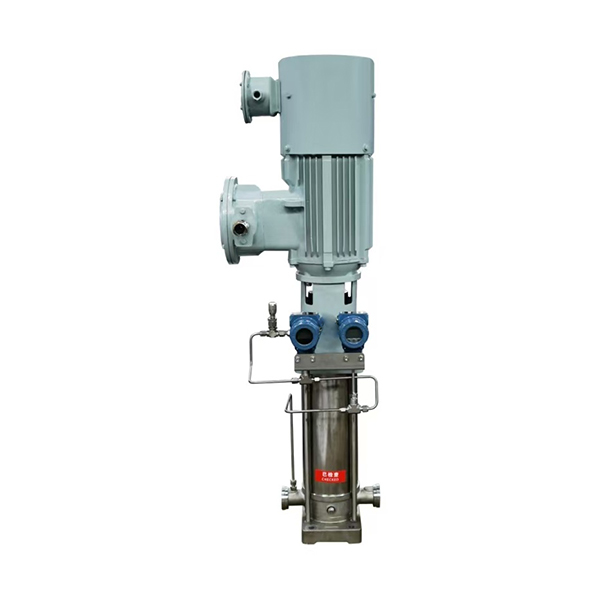

marine multi stage magnetic drive centrifugal pumps

Marine multi-stage magnetic drive centrifugal pumps are engineered for zero-leakage, high-efficiency, and safe operation in environments that demand robust sealing—like methanol-fueled ships and chemical carriers. Their compact design, corrosion-resistant materials, and advanced magnetic coupling make them ideal for modern marine fuel and liquid transfer systems.

1. Main Features

1. Magnetic drive coupling advantages:
   • Zero-leakage design: Isolated power transmission eliminates the risk of media leakage, crucial for methanol and other hazardous fuels.
   • Non-contact transmission: No mechanical contact between main and driven shaft, minimizing wear and extending equipment life.
   • Static seals: Replaces dynamic seals with static seals, boosting reliability and eliminating leak-prone components.
   • Vibration and noise reduction: Magnetic coupling buffers and absorbs vibrations, resulting in quieter operation.
2. Pump features:
   • High head & large flow: Multi-stage impellers deliver high pressure and large flow rates for demanding ship fuel systems.
   • Corrosion-resistant construction: Stainless steel or alloy materials resist methanol and salt spray corrosion.
   • Compact design: Space-saving vertical configuration fits narrow ship machinery spaces.
   • Smooth operation: Optimized impeller and flow path reduce vortex and extend pump life.

2. Scope of Application

1. Methanol-fueled ships and green fuel systems
2. Ships requiring strict leakage control: chemical carriers, fuel supply ships, eco-friendly cargo ships
3. Other ship systems: fuel supply, liquid cooling circulation, and any system needing high sealing performance

3. Structure & Working Principle

1. Magnetic drive coupling:
   • Consists of inner and outer magnets separated by an isolation cover
   • Outer magnet connects to motor, inner magnet to impeller shaft
   • Magnetic force transfers power to rotate the impeller, with no physical shaft contact
2. Multi-stage centrifugal pump:
   • Multiple impellers pressurize medium step by step, achieving required head and flow
   • Completely sealed pump body eliminates leakage risk

4. Performance Advantages

1. Safety: Zero-leakage design guarantees safe operation with hazardous media like methanol
2. Environmental protection: Prevents hazardous media leaks, protecting crew and the environment
3. Reliability: Eliminates failure-prone dynamic seals, boosting equipment lifespan
4. High-efficiency performance: Stable operation under high head and flow demands
5. Noise reduction & energy saving: Quieter operation and lower energy consumption

5. Maintenance & Upkeep

1. Regularly check magnetic coupling strength and integrity
2. Clean isolation cover to prevent impurities from affecting magnetic drive
3. Inspect impeller and pump chamber for wear, especially when transferring methanol
4. Maintain lubrication and cooling systems as needed

6. Typical Application Examples

1. Methanol fuel replenishment systems for ship engines
2. Chemical carriers transporting hazardous media
3. Ship exhaust gas cleaning systems for reliable liquid transfer
