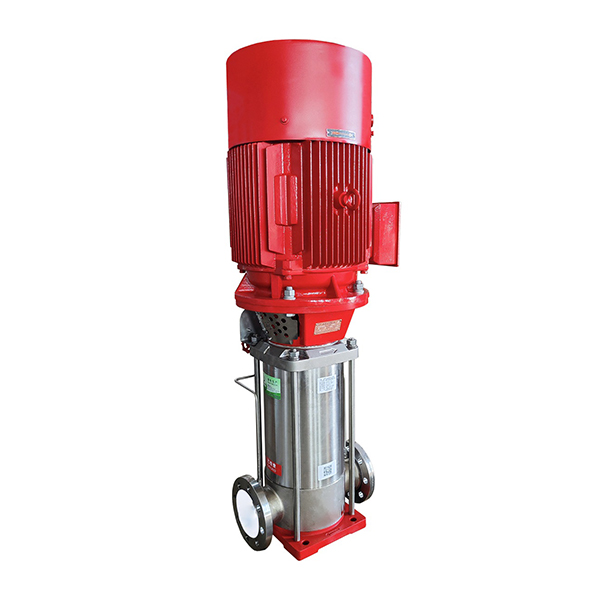

marine fire pump with stainless steel stamped impeller which is vertical multistage centrifugal pump

The marine fire pump is a high-efficiency vertical multi-stage centrifugal pump designed for shipboard and offshore platform fire-fighting systems. Featuring a stainless steel precision-stamped impeller and robust mechanical seals, it delivers strong corrosion resistance, high reliability, and long-term durability in harsh marine environments.

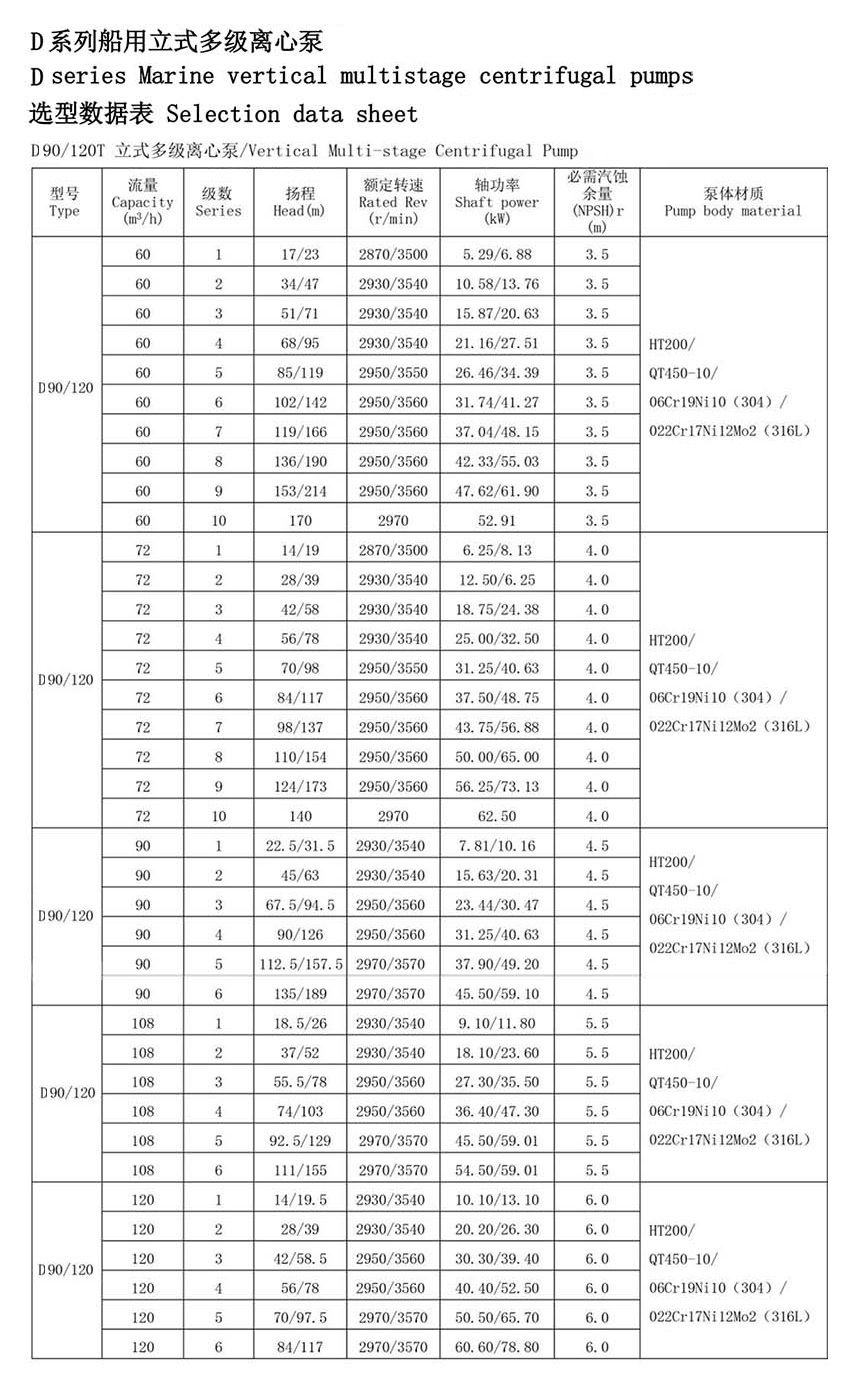

Technical Parameters

1. Flow range: 60 to 120 m³/h
   (refer to technical chart for specific ranges)
2. Head range: 50 to 600 meters
   (refer to technical chart for specific ranges)
3. Number of stages: 1 to 10
   (refer to technical chart for specifics)
4. Rated speed: 2,870 to 3,570 rpm
   (refer to technical chart for specifics)

Main Features

1. Stainless steel stamping impeller:
   • Strong corrosion resistance against seawater and salt spray
   • Precision stamping for smooth water flow and high efficiency
   • Excellent abrasion resistance for long-term operation
2. Vertical multi-stage design:
   • Space-saving, suitable for narrow ship environments
   • Multi-stage pressurization for higher head and long-distance water transport
3. High head, high flow:
   • Ensures sufficient pressure and flow for firefighting, even on large ships
   • Quickly delivers large volumes of water for emergency situations
4. High efficiency and low energy consumption:
   • Optimized impeller design reduces water resistance
   • Significant energy savings for shipboard environments
5. High reliability and durability:
   • Stainless steel and precision manufacturing for long-term, stable operation
   • Mechanical seal system prevents leakage, ensuring emergency readiness
6. Adaptability to harsh marine environments:
   • Resistant to salt spray, corrosion, high pressure, and high temperature
   • Ideal for offshore platforms, ships, and marine engineering applications

Application Areas

1. Ship fire-fighting systems
2. Offshore platforms (oil & gas, exploration)
3. Marine engineering (wind power platforms, cargo ships)

Structure & Working Principle

1. Pump body: Stainless steel construction for corrosion and pressure resistance.
2. Impeller: Precision stamped, sequentially pressurized in multi-stage design for enhanced pressure.
3. Shaft seal: Mechanical sealing with wear-resistant materials for leak-free operation under high pressure.
4. Motor drive: Electric motor provides continuous power for long-duration, high-load operation.

Maintenance & Upkeep

1. Regularly inspect impeller and pump body for wear or corrosion.
2. Keep pump interior clean; prevent salt and impurities from accumulating.
3. Lubricate bearings and seals as needed.
4. Check mechanical seals for leaks and replace if damaged.
5. Inspect motor and electrical systems for reliable operation.

Advantages

1. Exceptional corrosion resistance for marine environments
2. Precision impeller stamping for high efficiency and low maintenance
3. Multi-stage design for low energy consumption and powerful performance
4. Reliable mechanical seals and stainless steel construction for stability and safety
