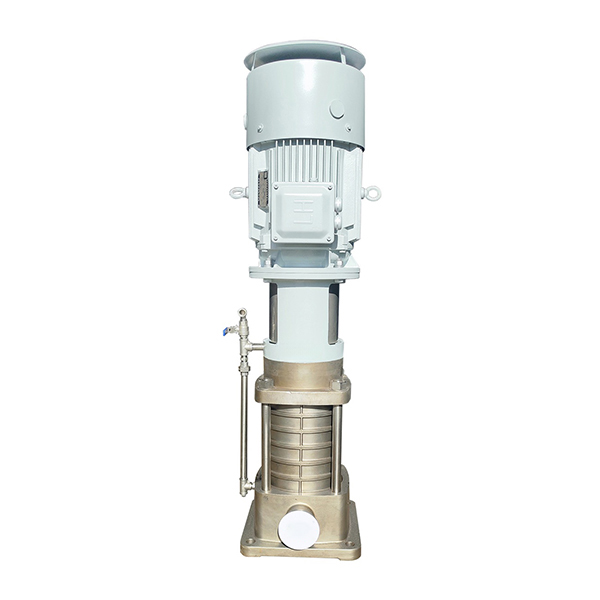

marine vertical multi stage high pressure centrifugal pump

The marine vertical multistage high pressure centrifugal pump features a multi-stage impeller design for higher pressure output, making it ideal for long-distance transport and high-pressure liquid requirements. Its vertical structure is space-saving and suited to the limited installation areas found on ships and offshore platforms.

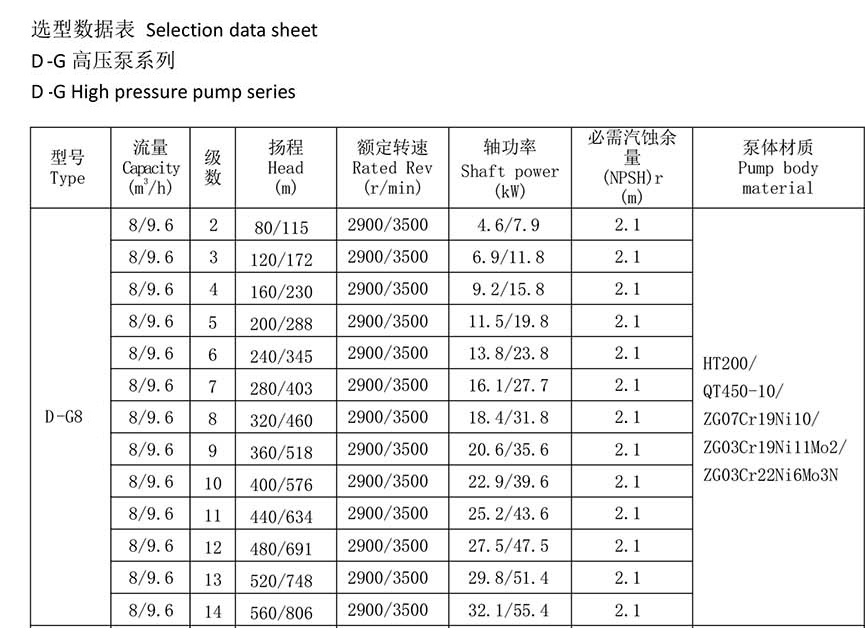

Technical Parameters

1. Pump flow range: 8 to 9.6 m³/h
2. Head range: 80 to 806 meters (see technical chart for details)
3. Number of stages: 2 to 14 (see technical chart for specifics)
4. Rated speed: 2900 to 3500 rpm
5. Main materials: Cast iron or stainless steel
6. Impeller: Stamped stainless steel

Main Features & Working Principle

1. Vertical structure: Saves valuable shipboard space and simplifies installation and maintenance.
2. Multi-stage impeller: Multiple impellers gradually increase fluid pressure, delivering efficient high-pressure output.
3. High-efficiency sealing system: Wear-resistant mechanical seals ensure long-term leak-free operation.
4. Corrosion-resistant materials: Cast iron or stainless steel construction withstands seawater and harsh media.

Application Fields

1. Seawater transportation: Cooling systems, fire water systems, water supply systems
2. Ship water supply: Sanitary water, fire water, and high-pressure supply for all ship systems
3. Oil and gas platforms: High-pressure pumps for fluid transport and cooling

Advantages

1. High efficiency: Multi-stage design efficiently increases fluid pressure for demanding applications.
2. Smooth operation: Multiple impellers produce smooth water flow, reducing noise and vibration.
3. Strong corrosion resistance: Stainless steel and cast iron materials withstand marine environments.
4. Stamped stainless steel impeller:
   • Excellent corrosion resistance, ideal for seawater and harsh chemicals
   • Precision manufacturing for smooth surfaces, reducing flow resistance
   • Uniform strength distribution for longer service life
   • Lightweight and high strength, reducing pump load and energy consumption
   • Efficient fluid transfer and high-pressure output, with stable performance
   • Superior wear resistance for extended operation
5. Strong adaptability: Performs reliably in complex marine environments, ensuring continuous and efficient operation.

Maintenance & Upkeep

1. Regularly inspect impellers and bearings; replace worn or damaged parts promptly.
2. Check sealing components to avoid leakage.
3. Clean filters and pump chamber to prevent clogging and maintain performance.
