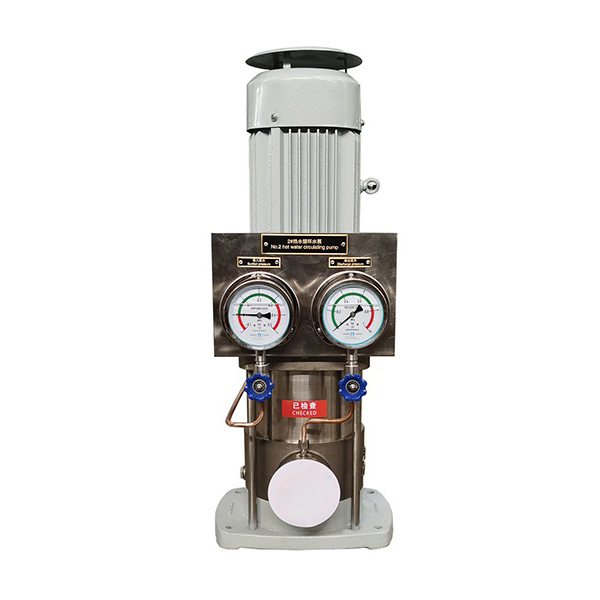

marine vertical multistage centrifugal pump stamping process

The marine vertical multistage centrifugal pump is engineered to deliver high pressure and large flow rates, making it especially suitable for shipboard boiler water supply systems, fire-fighting systems, and cooling systems. Its multi-stage design and vertical structure allow efficient operation in the limited space of a ship, while ensuring reliability and durability.

Working Principle

1. Uses centrifugal force from the rotating impeller to draw water in and accelerate it out of the pump inlet.
2. Multi-stage design: Water is accelerated step by step through multiple impellers, achieving high head and high pressure.
3. Stainless steel stamped impeller ensures smooth flow and reduced energy loss.
4. Wear-resistant mechanical seal provides reliable, long-term leak-free operation.

Technical Parameters

1. Pump flow rate: 2.4, 3, 4 m³/h (varies by model)

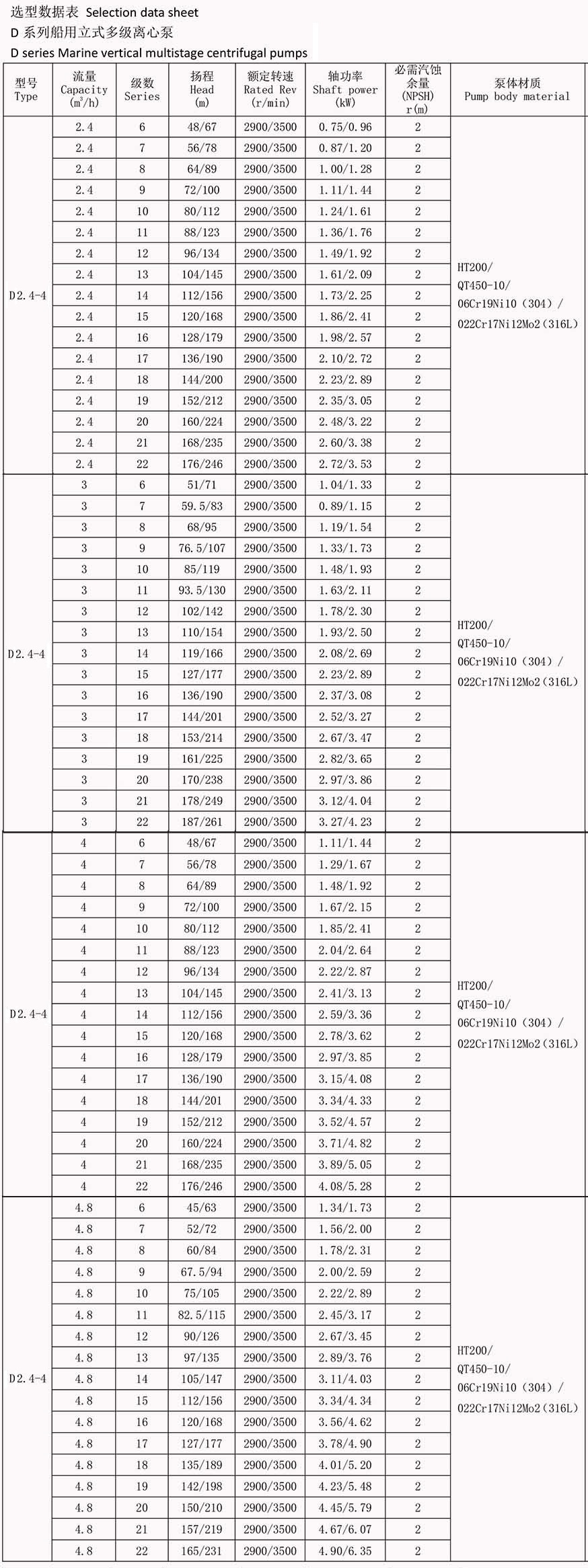

2. Range of stages: 6 to 22 (see chart below for specific values)
3. Range of heads: 48 to 231 meters (see chart below for specific values)
4. Main materials: Cast iron or stainless steel for seawater corrosion resistance
5. Impeller: Stainless steel stamping process for efficiency
6. Seal: Wear-resistant mechanical seal for long-term sealing

Main Features

1. Vertical structure: Space-saving design, flexible installation, and small footprint for shipboard environments.
2. Multi-stage design: Multiple impellers increase head and water pressure for demanding applications.
3. Energy efficient: Optimized design reduces energy consumption and operating costs.
4. Reliable: Stable operation in high temperature, humidity, and marine conditions.
5. Smooth running & low noise: Quiet operation and minimal vibration, easy installation and maintenance.
6. Durable: Resistant to corrosion for long-term use in seawater environments.

Main Application Areas

1. Ship’s water supply system: Provides domestic and industrial water for crew and equipment.
2. Ship fire-fighting system: Delivers high pressure water for emergency fire fighting and rescue.
3. Ship drainage system: Rapid removal of water accumulation for safety and stability.
4. Ship cooling system: Equipment and engine cooling to prevent overheating.
5. Boiler feed pump: Transfers water to boilers under high head and pressure conditions.
6. Marine circulating water system: Supplies cooling water to engines and equipment, often using seawater.
7. Ship’s domestic water system: Drinking, bathing, and sanitation water for crew, maintaining hygiene standards.
8. Ballast water treatment system: Treats ballast water for environmental compliance.
9. Bilge water removal: Removes accumulated bilge water for ship safety.

Selection Points

1. Head and flow requirements: Select the appropriate head and flow rate for efficient operation in all conditions.
2. Material selection: Use corrosion-resistant materials (stainless steel or cast iron) for long-term durability at sea.
3. Pump maintenance and repair: Choose easy-to-maintain designs to reduce crew workload, simplify maintenance, minimize failures, and extend equipment life.
