mini road roller Product Description

Equipped with famous brand power: quality assurance, superior performance

Eagle-eye body design: wide field of vision, beautiful and generous

Imported hydraulic variable pump and quantitative motor: stepless speed change, walking forward and backward

The control panel is fully functional: one-key operation

Front and rear lighting and warning lights: can be constructed at night

Ergonomic driving

The product has passed the CE certification: and the design of the Red Star Award

The steel wheel is equipped with an outline light: which is easy to operate, safe and efficient

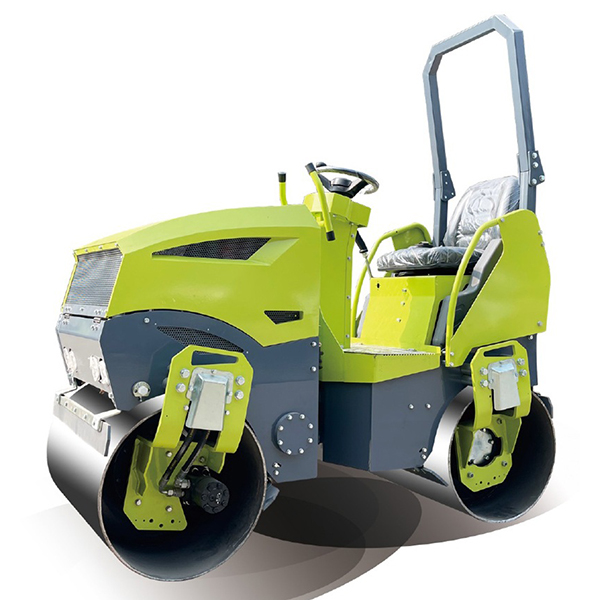

mini road roller with swing hinged steering B1500 1.5 ton
Model	B1500
Weight
Operating Weight(kg)	1500
Static line load(n/cm)	69.5, 68
Size
Working width(mm)	930
Overall length(mm)	1980, 1940
Overall height(mm)	1540, 2125
Outside the turning radius(mm)	2800
Drum width(mm)	800
Drum diameter(mm)	560
Wheelbase(mm)	1536
Drive
Engine brand	CHANGHAI	HONDA
Engine model	192F	GX390
Engine Type	Single cylinder vertical air cooling four-stroke diesel engine	Single cylinder vertical air cooling four-stroke gasoline engine
Number of cylinders	1
Output Power(kw)	8.1
Rotating speed(rpm)	3600
Electrical equipment(V)	12
Driving method	Variable displacement piston pump continuously variable two-wheel drive
Walking characteristics
Speed(km/h)	0 to 6
Theoretical climbing ability(%)	30
Brake
Service brake	Variable displacement piston pump
Turn
Steering method	Hydraulic steering
Steering system	Swing articulated
Vibration system
Vibrating drum	Front
Drive form	Hydraulic motor
Vibration frequency(hz)	65
Vibration amplitude(mm)	0.5
Exciting force(kn)	30
Sprinkler system
Form	Intermittent pressure spray
Capacity
Hydraulic oil capacity(L)	22
Fuel capacity(L)	5.5
Water tank capacity(L)	70

mini road roller with swing hinged steering B1500 1.5 ton

This 1.5-ton road roller features a compact structure and flexible operation, making it suitable for ground compaction work in confined spaces such as municipal roads, residential areas, and sidewalks. With strong power, stable performance, and high construction efficiency.

Description
Technical Parameters

Description

Equipped with famous brand power: quality assurance, superior performance
Eagle-eye body design: wide field of vision, beautiful and generous
Imported hydraulic variable pump and quantitative motor: stepless speed change, walking forward and backward
The control panel is fully functional: one-key operation
Front and rear lighting and warning lights: can be constructed at night
Ergonomic driving
The product has passed the CE certification: and the design of the Red Star Award
The steel wheel is equipped with an outline light: which is easy to operate, safe and efficient

Technical Parameters

mini road roller with swing hinged steering B1500 1.5 ton
Model	B1500
Weight
Operating Weight(kg)	1500
Static line load(n/cm)	69.5, 68
Size
Working width(mm)	930
Overall length(mm)	1980, 1940
Overall height(mm)	1540, 2125
Outside the turning radius(mm)	2800
Drum width(mm)	800
Drum diameter(mm)	560
Wheelbase(mm)	1536
Drive
Engine brand	CHANGHAI	HONDA
Engine model	192F	GX390
Engine Type	Single cylinder vertical air cooling four-stroke diesel engine	Single cylinder vertical air cooling four-stroke gasoline engine
Number of cylinders	1
Output Power(kw)	8.1
Rotating speed(rpm)	3600
Electrical equipment(V)	12
Driving method	Variable displacement piston pump continuously variable two-wheel drive
Walking characteristics
Speed(km/h)	0 to 6
Theoretical climbing ability(%)	30
Brake
Service brake	Variable displacement piston pump
Turn
Steering method	Hydraulic steering
Steering system	Swing articulated
Vibration system
Vibrating drum	Front
Drive form	Hydraulic motor
Vibration frequency(hz)	65
Vibration amplitude(mm)	0.5
Exciting force(kn)	30
Sprinkler system
Form	Intermittent pressure spray
Capacity
Hydraulic oil capacity(L)	22
Fuel capacity(L)	5.5
Water tank capacity(L)	70
