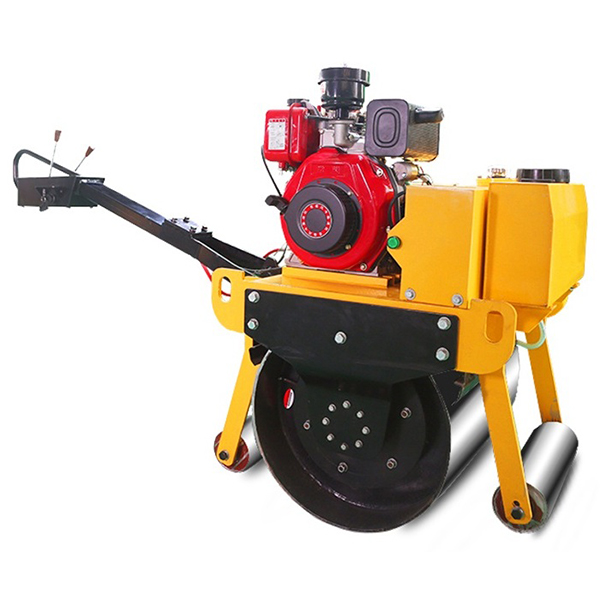

mini road roller 0.5 ton which is walk behind BH700

This 0.5-ton mini road roller is compact and highly maneuverable, making it ideal for ground compaction in narrow spaces and small projects. It is easy to operate and maintain, making it an excellent choice for gardens, sidewalks, and small repair works.

Description

CE EPA Certified 0.5 Ton Single Drum Walk-Behind Vibrating mini Road Roller

  • The machine is equipped with the brand power, brand-name quality assurance, superior performance, easy to start.
  • The machine is selected of international brand-name Hydraulic variable pump and quantitative mator, continuously variable, it can walk backward and forward.
  • It has Hydraulic steering, steering light and flexible.
  • It has completed control function, to fully control the machine running at any time.
  • It uses the Japanese-made Nsk(seiko)bearings , to ensure the machine’s performance.
  • It is installed of luxury seats, easy adjustment, comfortable work.
  • It has streamlined body design, more beautiful and generous.
  • The machine’s surface is treated by spray.
  • The product has passed CE certification.

According to your detail requirement, please find the road roller you really need.

  • Optional diesel engine or gasoline engine.
  • Single drum walk behind road rollers.
  • Double drum walk behind road rollers.
  • Ride-on small vibrating road roller.
  • Full hydraulic ride on road rollers.
  • Big drum road rollers with the cabin.
  • Static drum/sheep foot drum/rubber drum rollers.
  • Customized according to your requirements.
Technical Parameters
mini road roller 0.5 ton which is walk behind BH700
Model BH700 BH700C
WEIGHT
Weight(Kg) 550
Static line load(n/cm) 45
Size
Full Width 880 mm
Full length(with armrest flat) 2150 mm
Full height(armrest upright) 1870 mm
Package dimensions 1200 x 920 x 1920 mm
Drum width 700 mm
Drum diameter 530 mm
Start up Recoil hand pull Electric start
Drive
Engine brand HONDA GX270 CHANGCHAI, CHANGFA CF178
Engine type four-stroke, gasoline four-stroke, diesel
Number of cylinders 1
Output power (KW) 6.7 4.4
Rating speed(RPM) 3600 3600
Walking characteristics
Speed 0 to 4.5 km/h
Theoretical climbing ability(%) 30
Brake
Walking Way Two-way hydraulic chain drive
Vibration system
Vibration drum Single drum
Vibration frequency (Hz) 70
Vibration amplitude (mm) 0.6
Exciting force(KN) 25
Sprinkler system
form Gravity shower
Capacity
Fuel Capacity(L) 6.5 2.7
Lubricating oil volume(L) 1.1 1.1
Hydraulic oil capacity(L) 15 15
Water tank capacity (L) 20 20
