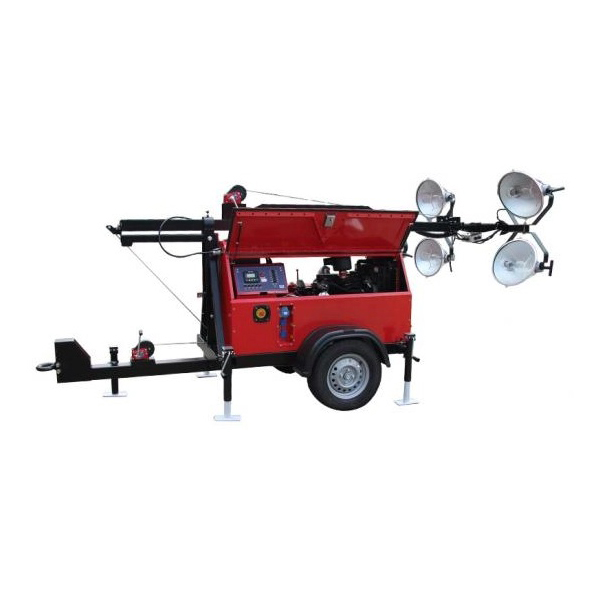

mobile diesel metal halide light tower with manual lifting

The lighting tower can illuminate an area of up to 7,396 square meters and has the ability to work continuously for nearly 3 days, making it suitable for a variety of scenarios such as remote lighting, outdoor construction, and emergency lighting. It is equipped with a manual lifting mast, which can be adjusted to 9 meters, and is equipped with a 360° rotating function, which facilitates the light demand from different angles.

Working principle of mobile diesel metal halide light tower:

The light tower is driven by a diesel engine, which provides electricity for the light tower through a generator. The generator generates single-phase electricity (50Hz) to supply metal halide lamps. The core lighting system of the lighthouse utilizes metal halide lamps, which react with metal halides through an electric current to produce an intense light output, providing efficient illumination. The diesel engine not only drives the lighting fixtures, but also supports other functions of the lighthouse, such as the control system and elevation operations.

The main features of the mobile diesel metal halide light tower:

1. Lifting and rotating light tower:
   The height of the light tower can be adjusted manually, and it can be lifted up to 9 meters (30 feet), and the lifting and lowering operation is completed by two manual winches.
   The lifting mast has a 360° rotation function, which is convenient for users to adjust the lighting angle.

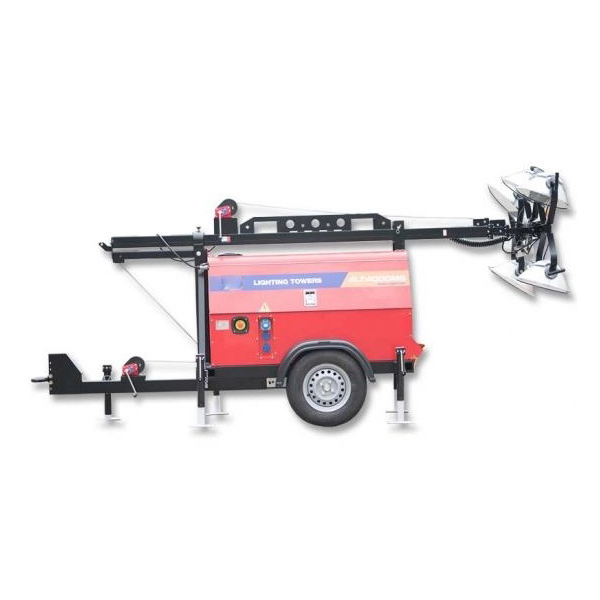

   The mast can be stowed horizontally for easy movement and storage.
2. Lighting system:
   4pcs 1000W metal halide lamps are used, the light output of each lamp is 19,000 lumens, and the total output power is 304,000 lumens, which can cover a wide area.
   The seat of each lamp can be rotated 90 degrees to provide flexible lighting direction.
   The metal halide lamps offer high luminous efficacy, long life (up to 10,000 hours) and low maintenance requirements.
3. Fuel & Range:
   Equipped with 110 liter fuel tank, it can support about 65 hours of continuous operation, suitable for long time outdoor application.
4. Control System:
   The lighthouse is equipped with a digital intelligent control system, which can automatically monitor and adjust the working status. The control system integrates data measurement, alarm and protection functions to ensure the safety and stability of the equipment during operation.
   Equipped with LCD display and microprocessor, it is able to accurately adjust parameters, set timed tasks and provide clear feedback on working status.
   Including emergency stop button, lamp switch, DC power switch and auxiliary power socket and other operation and protection functions.
5. Diesel Engine:
   Equipped with high-efficiency diesel engine of famous brand, providing strong power and adapting to long time high load operation.
   Highly suitable for lighting towers with low fuel consumption and compact size, capable of efficient and stable operation.
6. Structure and Durability:
   The cowling is made of 2mm thick CRCA material, which is wear-resistant, corrosion-resistant and impact-resistant, and is able to withstand harsh environmental conditions.
   The surface of the enclosure is powder coated to provide additional corrosion protection and is easy to clean and maintain.
   All metal components (such as door locks, hinges and fasteners) are made of ageing-resistant, corrosion-resistant stainless steel to ensure long-term use.
7. environmental adaptability:
   The device is equipped with 50 radiators, which can work stably in the ambient temperature range of -10°C to +50°C.
   Adaptable to different climatic conditions, able to play excellent lighting performance in extreme environments.
8. safety and maintainability:
   Equipped with emergency stop device to protect the operator and equipment safety.
   The equipment is designed for easy operation and maintenance, equipped with forklift bags and lifting eyes for easy transportation and lifting.
   Including water separator, maintenance-free battery, battery isolator and other features to enhance the reliability of the equipment and maintenance convenience.
9. Transportation and Storage:
   The lighthouse is equipped with a highway standard trailer chassis with a fully galvanized design to ensure stability during transportation and durability in long-term use.
   The size of the unit is optimized for easy storage in containers. Up to 4 units can be stored in a 20-foot container and up to 14 units can be stored in a 40-foot high cube container (40HQ).

APPLICATION FIELDS OF MOBILE DIESEL HALIDE LIGHT TOWER:

This mobile diesel metal halide light tower is widely used in construction sites, open-air activities, large-scale events, emergency rescue, remote lighting, and other places that require continuous high-brightness lighting. Its powerful lighting capacity and flexible design enable it to provide high quality lighting services in various environments.
