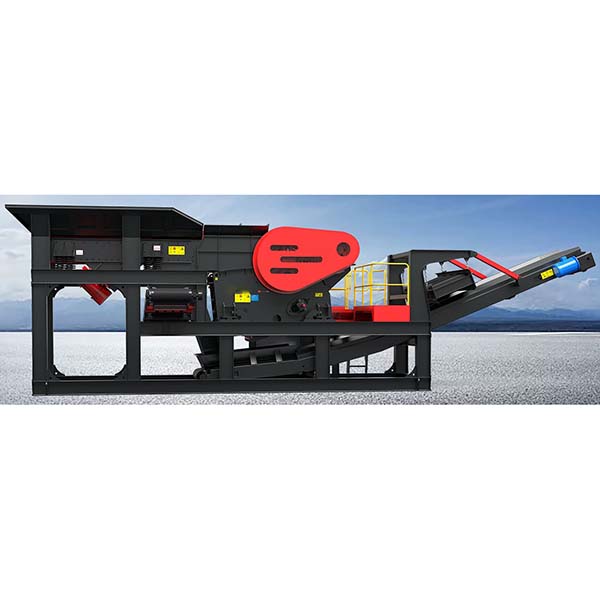

mobile jaw crusher station which is foundation-free

With the flexible structure design, the mobile jaw crusher station is applied to primary crushing of ores, and is suitable for workplaces with high requirements on crushing ratio and processing capacity.

Features of mobile jaw crusher station:

High-efficiency crushing performance: the deep cavity symmetric crushing chamber design ensures larger feed size and higher output, as well as stronger crushing capacity and higher crushing ratio.
Adapt to the harsh environment: Even in the extreme mining environment, the equipment still shows excellent stability and high efficiency, and can easily cope with the crushing needs of high hardness and low plasticity ores.
Heavy-duty feeder configuration: Equipped with a heavy-duty bar feeder specially designed for mobile jaw crusher station, it improves the uniformity of feed and ensures stable crushing operation.
Modular design: Adopting modular and integrated design, the layout of the equipment is more flexible and reasonable, and can be quickly adjusted and optimized according to the needs of the site, maximizing the saving of space and resources.
humanized design: the equipment is equipped with high-quality maintenance platform and open design, which is convenient for operators to maintain and repair, and ensure the long-term stable operation of the equipment.
Foundation-free installation: the equipment adopts frame structure layout, no need to make concrete foundation on site, which greatly saves installation time and cost.
rapid production: high degree of integration, the equipment can be quickly put into production after lifting, reducing the workload of pre-production preparations, and quickly achieve the production goals.
Convenient transportation: the equipment can work normally after unfolding, and it is easy to be transported after shrinking, which reduces the dismantling process and adapts to the domestic road transportation demand.

The working principle of mobile jaw crusher station:

Based on the traditional jaw crusher. Its core component is a jaw plate, which is driven by eccentric shaft to produce up and down movement between fixed and movable jaw plates. The material is evenly fed into the crushing chamber through the feeder, and with the compression and extrusion action of the jaw plate, the material is gradually crushed to the required particle size. The equipment is driven by electric motor during the working process and the discharge opening is adjusted by hydraulic system to control the product size. Due to the modular structure of the plant, the mobile jaw crusher station not only provides efficient crushing performance, but also has the flexibility to adjust the configuration according to different operational requirements.

Application areas of mobile jaw crusher station:

Mining: mobile jaw crusher station is widely used in coarse crushing operation of mining, especially suitable for crushing large ores, such as iron ore, copper ore, limestone and other high hardness ores.
Aggregate processing: In the construction industry, especially in the sand and gravel plant, mobile jaw crusher station is used to produce various specifications of aggregates required for construction, such as sand, gravel and so on.
Construction waste recycling: In the process of urban construction, the treatment of construction waste is an important work, and the mobile jaw crusher station can effectively deal with construction waste such as concrete, masonry and other construction waste, and generate recyclable recycled aggregates.
Highway and railroad construction: This equipment is suitable for crushed stone production in highway and railroad construction, which can provide stable aggregate supply for infrastructure construction.
Environmental protection industry: mobile jaw crusher station is also used in environmental protection field, especially in garbage treatment plant and waste resourcing industry for crushing garbage and waste materials, which meets the green environmental protection requirements.
