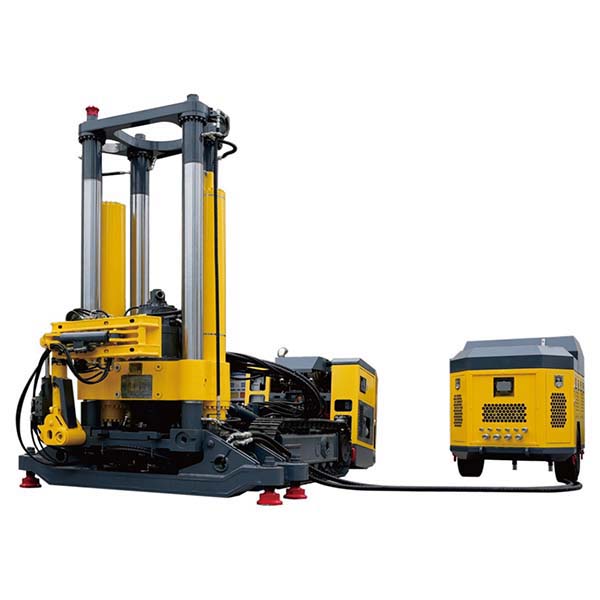

The Moderately Inclined Raise Boring Rig

The moderately inclined raise boring rig is a highly efficient drilling device specifically designed for the excavation of gently inclined ore bodies in mines. Featuring a modular and split-type structure, the rig is compact, flexible, and easy to maneuver, making it ideal for operations with small shaft diameters and depths, short construction cycles, and frequent site relocations. With its innovative hydraulic column stabilization and positioning system, the rig can be quickly and securely installed for operations under various complex terrain conditions, ensuring both safety and efficiency during raise boring.

Key Features of the Moderately Inclined Raise Boring Rig

• Modular Design: The entire rig adopts a split modular structure, making assembly and transportation convenient and well-suited for frequent relocation.
• Innovative Positioning System: Equipped with a hydraulic column stabilization and positioning technology, the rig eliminates the need for traditional concrete foundations and can be positioned in an extremely short time, significantly reducing preparation cycles.
• High Adaptability: The optimized and upgraded drilling tool system is capable of handling raise boring operations ranging from 15 to 90 degrees, meeting construction needs for different angles and geological conditions.
• Efficient Construction: The process is simplified, allowing the equipment to be put into use immediately upon arrival at the site. Compared to traditional methods, preparation time is reduced by 7–10 days, greatly improving overall efficiency and lowering labor and operational costs.
• Safety and Reliability: The secure hydraulic column positioning ensures safe operation in complex and inclined conditions.

Application Fields of the Moderately Inclined Raise Boring Rig

• Suitable for raise boring, ventilation, hoisting, and ore pass construction in gently inclined ore bodies of both metallic and non-metallic mines.
• Widely applicable to various underground mining projects, including raise drilling, trenching, and pilot hole construction at different angles.
• Especially fit for scenarios requiring frequent relocation, small shaft diameters and depths, and short construction cycles, enhancing the flexibility and cost-effectiveness of mining operations.
