multi-turn wave springs with no shim ends KM series

Multi-turn wave springs with shimless ends are characterized by the absence of support coils at both ends, but are composed of peak-to-valley multi-layer wave springs with a total number of layers greater than one.

Description

Multi-Turn Wave Springs with No Shim Ends are specialized springs designed for compact installations and weight-sensitive applications, offering superior elasticity and support in limited spaces. Each layer features a wave number such as 2.5, 3.5, or 4.5, with upper and lower layers contacting at crests and troughs, maximizing coil effectiveness and spring compactness.

Multi-turn wave springs with no shim ends

Key Features & Benefits

Shimless Design: Eliminates shims for a more compact and lightweight spring, reducing structural complexity and overall weight.
Multi-Coil Structure: Multiple coils in the spring offer enhanced elasticity, deformation capacity, and effective support for demanding operating conditions.
Efficient Coil Engagement: The effective number of coils equals the total number, with upper and lower layers in direct contact at crests and valleys for maximum support.
Material Selection: Made from high-strength steel or alloy materials to ensure durability and reliability under high loads and cyclic stress.
Vibration & Impact Cushioning: Excellent for cyclic loading and vibration damping, extending equipment life and reliability.

Applications

Aerospace systems requiring weight reduction and compact designs
Precision machinery with restricted mounting spaces
Hydraulic seals and high-end electric motors
Automotive and general mechanical equipment for impact and vibration cushioning

Multi-Turn Wave Springs with No Shim Ends are the optimal choice for critical environments where space and weight are at a premium. Their advanced design and high-performance materials ensure reliable, long-lasting elasticity and support for aerospace, precision engineering, and other demanding fields.

Technical Parameters1

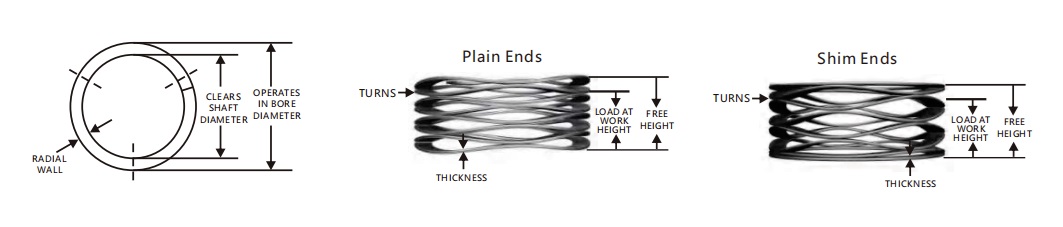

Item No.	Operates in Bore Diameter(mm)	Clears Shaft Diameter(mm)	Load(N)	Work Height(mm)	Free Height(mm)	Spring Rate(N/mm)
KM05-L1	5	3.5	5	1.14	1.84	7.14
KM05-L2	5	3.5	5	1.52	2.45	5.38
KM05-L3	5	3.5	5	1.91	3.06	4.35
M05-L4	5	3.5	5	2.26	3.68	3.52
KM05-L5	5	3.5	5	2.67	4.29	3.09
KM05-L6	5	3.5	5	3.02	4.9	2.66
KM05-L7	5	3.5	5	3.43	5.52	2.39
KM05-L8	5	3.5	5	4.14	6.74	1.92
KM05-L9	5	3.5	5	4.9	7.97	1.63
KM05-M1	5	3.5	10	1.14	1.89	13.33
KM05-M2	5	3.5	10	1.52	2.52	10
M05-M3	5	3.5	10	1.91	3.15	8.06
KM05-M4	5	3.5	10	2.26	3.78	6.58
KM05-M5	5	3.5	10	2.67	4.41	5.75
KM05-M6	5	3.5	10	3.02	5.04	4.95
KM05-M7	5	3.5	10	3.43	5.04	4.46
KM05-M8	5	3.5	10	4.14	6.93	3.58
KM05-M9	5	3.5	10	4.9	8.19	3.04
KM06-L1	6	4	6	0.61	1.52	6.59
KM06-L2	6	4	6	0.81	2.03	4.92
KM06-L3	6	4	6	1.02	2.54	3.95
KM06-L4	6	4	6	1.22	3.05	3.28
KM06-L5	6	4	6	1.42	3.56	2.8
KM06-L6	6	4	6	1.63	4.06	2.47
KM06-L7	6	4	6	1.83	4.57	2.19
KM06-L8	6	4	6	2.24	5.59	1.79
KM06-L9	6	4	6	2.64	6.6	1.52
KM06-M1	6	4	12	0.74	1.52	15.38
KM06-M2	6	4	12	0.97	2.03	11.32
KM06-M3	6	4	12	1.22	2.54	9.09
KM06-M4	6	4	12	1.47	3.05	7.59
KM06-M5	6	4	12	1.7	3.56	6.45
KM06-M6	6	4	12	1.96	4.06	5.71
KM06-M7	6	4	12	2.18	4.57	5.02
KM06-M8	6	4	12	2.69	5.59	4.14
KM06-M9	6	4	12	3.18	6.6	3.51
KM08-L1	8	5	15	1.7	2.82	13.39
KM08-L2	8	5	15	2.39	3.76	10.95
KM08-L3	8	5	15	2.74	4.7	7.65
KM08-L4	8	5	15	3.56	5.64	7.21
KM08-L5	8	5	15	4.01	6.58	5.84
KM08-L6	8	5	15	4.57	7.52	5.08
KM08-L7	8	5	15	5.26	8.46	4.69
M08-L8	8	5	15	6.35	10.34	3.76
KM08-L9	8	5	15	7.37	12.22	3.09
KM08-M1	8	5	30	1.78	2.82	28.85
KM08-M2	8	5	30	2.54	3.76	24.59
KM08-M3	8	5	30	3.05	4.7	18.18
KM08-M4	8	5	30	3.81	5.64	16.39
KM08-M5	8	5	30	4.32	6.58	13.27
KM08-M6	8	5	30	4.95	7.52	11.67
KM08-M7	8	5	30	5.59	8.46	10.45
KM08-M8	8	5	30	6.86	10.34	8.62
KM08-M9	8	5	30	7.87	12.22	6.9
KM10-L1	10	7	18	1.91	3.96	8.78
KM10-L2	10	7	18	2.54	5.28	6.57
KM10-L3	10	7	18	3.15	6.6	5.22
KM10-L4	10	7	18	3.78	7.92	4.35
KM10-L5	10	7	18	4.42	9.25	3.73
KM10-L6	10	7	18	5.05	10.57	3.26
KM10-L7	10	7	18	5.69	11.89	2.9
KM10-L8	10	7	18	6.32	13.21	2.61
KM10-L9	10	7	18	6.96	14.53	2.38
KM10-M1	10	7	35	2.03	3.96	18.13
KM10-M2	10	7	35	2.79	5.28	14.06
KM10-M3	10	7	35	3.56	6.6	11.51
KM10-M4	10	7	35	4.32	7.92	9.72
KM10-M5	10	7	35	5.08	9.25	8.39
KM10-M6	10	7	35	5.84	10.57	7.4
KM10-M7	10	7	35	6.6	11.89	6.62
KM10-M8	10	7	35	7.37	13.21	5.99
KM10-M9	10	7	35	8.13	14.53	5.47
KM12-L1	12	9	20	1.47	4.34	6.97
KM12-L2	12	9	20	1.98	5.79	5.25
KM12-L3	12	9	20	2.46	7.24	4.18
KM12-L4	12	9	20	2.95	8.69	3.48
KM12-L5	12	9	20	3.45	10.13	2.99
KM12-L6	12	9	20	3.94	11.58	2.62
KM12-L7	12	9	20	4.45	13.03	2.33
KM12-L8	12	9	20	4.93	14.48	2.09
KM12-L9	12	9	20	5.44	15.93	1.91
KM12-M1	12	8.5	40	2.36	4.34	20.2
KM12-M2	12	8.5	40	3.18	5.79	15.33
KM12-M3	12	8.5	40	3.96	7.24	12.2
KM12-M4	12	8.5	40	4.75	8.69	10.15
KM12-M5	12	8.5	40	5.54	10.13	8.71
KM12-M6	12	8.5	40	6.32	11.58	7.6
KM12-M7	12	8.5	40	7.11	13.03	6.76
KM12-M8	12	8.5	40	7.92	14.48	6.1
KM12-M9	12	8.5	40	8.71	15.93	5.54
KM12-H1	12	8.5	60	1.98	4.34	25.42
KM12-H2	12	8.5	60	2.64	5.79	19.05
KM12-H3	12	8.5	60	3.3	7.24	15.23
KM12-H4	12	8.5	60	3.99	8.69	12.77
KM12-H5	12	8.5	60	4.65	10.13	10.95
KM12-H6	12	8.5	60	5.31	11.58	9.57
KM12-H7	12	8.5	60	5.97	13.03	8.5
KM12-H8	12	8.5	60	6.63	14.48	7.64
KM12-H9	12	8.5	60	7.29	15.93	6.94
KM14-L1	14	10	22	2.18	4.95	7.94
KM14-L2	14	10	22	2.95	6.6	6.03
KM14-L3	14	10	22	3.71	8.26	4.84
KM14-L4	14	10	22	4.52	9.91	4.08
KM14-L5	14	10	22	5.33	11.56	3.53
KM14-L6	14	10	22	6.17	13.21	3.13
KM14-L7	14	10	22	7.01	14.86	2.8
KM14-L8	14	10	22	7.85	16.51	2.54
KM14-L9	14	10	22	8.71	18.16	2.33
KM14-M1	14	10	50	2.18	4.95	18.05
KM14-M2	14	10	50	2.95	6.6	13.7
KM14-M3	14	10	50	3.71	8.26	10.99
KM14-M4	14	10	50	4.52	9.91	9.28
KM14-M5	14	10	50	5.33	11.56	8.03
KM14-M6	14	10	50	6.17	13.21	7.1
KM14-M7	14	10	50	7.01	14.86	6.37
KM14-M8	14	10	50	7.85	16.51	5.77
KM14-M9	14	10	50	8.71	18.16	5.29
KM14-H1	14	9	80	3.15	4.95	44.44
KM14-H2	14	9	80	4.19	6.6	33.2
KM14-H3	14	9	80	5.26	8.26	26.67
KM14-H4	14	9	80	6.3	9.91	22.16
KM14-H5	14	9	80	7.34	11.56	18.96
KM14-H6	14	9	80	8.41	13.21	16.67
KM14-H7	14	9	80	9.45	14.86	14.79
KM14-H8	14	9	80	10.49	16.51	13.29
KM14-H9	14	9	80	11.56	18.16	12.12
KM15-L1	15	11	25	2.57	5.18	9.58
KM15-L2	15	11	25	3.43	6.91	7.18
KM15-L3	15	11	25	4.27	8.64	5.72
KM15-L4	15	11	25	5.13	10.36	4.78
KM15-L5	15	11	25	5.99	12.09	4.1
KM15-L6	15	11	25	6.83	13.82	3.58
KM15-L7	15	11	25	7.7	15.54	3.19
KM15-L8	15	11	25	8.53	17.27	2.86
KM15-L9	15	11	25	9.4	19	2.6
KM15-M1	15	10	50	3.43	5.18	28.57
KM15-M2	15	10	50	4.57	6.91	21.37
KM15-M3	15	10	50	5.72	8.64	17.12
KM15-M4	15	10	50	6.86	10.36	14.29
KM15-M5	15	10	50	8	12.09	12.22
KM15-M6	15	10	50	9.14	13.82	10.68
KM15-M7	15	10	50	10.29	15.54	9.52
KM15-M8	15	10	50	11.43	17.27	8.56
KM15-M9	15	10	50	12.57	19	7.78
KM15-H1	15	10	80	3.2	5.18	40.4
KM15-H2	15	10	80	4.19	6.91	29.41
KM15-H3	15	10	80	5.23	8.64	23.46
KM15-H4	15	10	80	6.27	10.36	19.56
KM15-H5	15	10	80	7.32	12.09	16.77
KM15-H6	15	10	80	8.36	13.82	14.65
KM15-H7	15	10	80	9.4	15.54	13.03
KM15-H8	15	10	80	10.46	17.27	11.75
KM15-H9	15	10	80	11.51	19	10.68
KM16-L1	16	11	25	2.11	5.41	7.58
KM16-L2	16	11	25	2.79	7.21	5.66
KM16-L3	16	11	25	3.51	9.02	4.54
KM16-L4	16	11	25	4.19	10.82	3.77
KM16-L5	16	11	25	4.9	12.62	3.24
KM16-L6	16	11	25	6.3	16.23	2.52
KM16-L7	16	11	25	7.7	19.84	2.06
KM16-L8	16	11	25	9.09	23.44	1.74
KM16-M1	16	11	55	3.63	5.41	30.9
KM16-M2	16	11	55	4.83	7.21	23.11
KM16-M3	16	11	55	6.05	9.02	18.52
KM16-M4	16	11	55	7.24	10.82	15.36
KM16-M5	16	11	55	8.46	12.62	13.22
KM16-M6	16	11	55	10.87	16.23	10.26
KM16-M7	16	11	55	13.28	19.84	8.38
KM16-M8	16	11	55	15.7	23.44	7.11
KM16-H1	16	11	90	3.3	5.41	42.65
KM16-H2	16	11	90	4.57	7.21	34.09
KM16-H3	16	11	90	5.59	9.02	26.24
KM16-H4	16	11	90	6.86	10.82	22.73
KM16-H5	16	11	90	7.87	12.62	18.95
KM16-H6	16	11	90	10.16	16.23	14.83
KM16-H7	16	11	90	12.45	19.84	12.18
KM16-H8	16	11	90	14.73	23.44	10.33
KM18-L1	18	13	30	3.63	5.72	14.35
KM18-L2	18	13	30	4.75	7.62	10.45
KM18-L3	18	13	30	5.94	9.53	8.36
KM18-L4	18	13	30	7.14	11.43	6.99
KM18-L5	18	13	30	8.31	13.34	5.96
KM18-L6	18	13	30	10.69	17.15	4.64
KM18-L7	18	13	30	14.25	22.86	3.48
KM18-M1	18	13	55	3.68	5.72	26.96
KM18-M2	18	13	55	4.98	7.62	20.83
KM18-M3	18	13	55	6.22	9.53	16.62
KM18-M4	18	13	55	7.47	11.43	13.89
KM18-M5	18	13	55	8.74	13.34	11.96
KM18-M6	18	13	55	11.23	17.15	9.29
KM18-M7	18	13	55	14.96	22.86	6.96
KM18-H1	18	13	90	3.84	5.72	47.87
KM18-H2	18	13	90	5.13	7.62	36.14
KM18-H3	18	13	90	6.4	9.53	28.75
KM18-H4	18	13	90	7.7	11.43	24.13
KM18-H5	18	13	90	8.97	13.34	20.59
KM18-H6	18	13	90	11.53	17.15	16.01
KM18-H7	18	13	90	15.37	22.86	12.02
KM20-L1	20	15	35	2.72	6.32	9.72
KM20-L2	20	15	35	3.61	8.43	7.26
KM20-L3	20	15	35	4.52	10.54	5.81
KM20-L4	20	15	35	5.41	12.65	4.83
KM20-L5	20	15	35	6.32	14.76	4.15
KM20-L6	20	15	35	8.13	18.97	3.23
KM20-L7	20	15	35	10.82	25.3	2.42
KM20-M1	20	14	70	3.05	6.32	21.41
KM20-M2	20	14	70	4.06	8.43	16.02
KM20-M3	20	14	70	5.08	10.54	12.82
KM20-M4	20	14	70	6.27	12.65	10.97
KM20-M5	20	14	70	7.32	14.76	9.41
KM20-M6	20	14	70	9.17	18.97	7.14
KM20-M7	20	14	70	12.22	25.3	5.35
KM20-H1	20	14	100	4.24	6.32	48.08
KM20-H2	20	14	100	5.66	8.43	36.1
KM20-H3	20	14	100	7.06	10.54	28.74
KM20-H4	20	14	100	8.48	12.65	23.98
KM20-H5	20	14	100	9.91	14.76	20.62
KM20-H6	20	14	100	12.73	18.97	16.03
KM20-H7	20	14	100	16.97	25.3	12
KM25-L1	25	19	50	2.06	6.63	10.94
KM25-L2	25	19	50	2.74	8.84	8.2
KM25-L3	25	19	50	3.43	11.05	6.56
KM25-L4	25	19	50	4.11	13.26	5.46
KM25-L5	25	19	50	4.8	15.47	4.69
KM25-L6	25	19	50	6.2	19.89	3.65
KM25-L7	25	19	50	8.26	26.52	2.74
KM25-M1	25	19	80	2.95	6.63	21.74
KM25-M2	25	19	80	3.94	8.84	16.33
KM25-M3	25	19	80	4.9	11.05	13.01
KM25-M4	25	19	80	5.89	13.26	10.85
KM25-M5	25	19	80	6.88	15.47	9.31
KM25-M6	25	19	80	8.84	19.89	7.24
KM25-M7	25	19	80	11.79	26.52	5.43
KM25-H1	25	19	110	4.04	6.63	42.47
KM25-H2	25	19	110	5.38	8.84	31.79

Technical Parameters2

Item No.	Operates in Bore Diameter(mm)	Clears Shaft Diameter(mm)	Load(N)	Work Height(mm)	Free Height(mm)	Spring Rate(N/mm)
KM25-H3	25	19	110	6.73	11.05	25.46
KM25-H4	25	19	110	8.08	13.26	21.24
KM25-H5	25	19	110	9.4	15.47	18.12
KM25-H6	25	19	110	12.12	19.89	14.16
KM25-H7	25	19	110	16.15	26.52	10.61
KM28-L1	28	22	50	3.76	7.24	14.37
KM28-L2	28	22	50	5	9.65	10.75
KM28-L3	28	22	50	6.27	12.07	8.62
KM28-L4	28	22	50	7.52	14.48	7.18
KM28-L5	28	22	50	8.79	16.89	6.17
KM28-L6	28	22	50	10.03	19.3	5.39
KM28-L7	28	22	50	11.28	21.72	4.79
KM28-L8	28	22	50	13.79	26.54	3.92
KM28-L9	28	22	50	16.31	31.37	3.32
KM28-M1	28	22	80	4.39	7.24	28.07
KM28-M2	28	22	80	5.84	9.65	21
KM28-M3	28	22	80	7.32	12.07	16.84
KM28-M4	28	22	80	8.79	14.48	14.06
KM28-M5	28	22	80	10.24	16.89	12.03
KM28-M6	28	22	80	11.71	19.3	10.54
KM28-M7	28	22	80	13.18	21.72	9.37
KM28-M8	28	22	80	16.1	26.54	7.66
KM28-M9	28	22	80	19.02	31.37	6.48
KM28-H1	28	22	130	4.57	7.24	48.69
KM28-H2	28	22	130	6.07	9.65	36.31
KM28-H3	28	22	130	7.59	12.07	29.02
KM28-H4	28	22	130	9.12	14.48	24.25
KM28-H5	28	22	130	10.64	16.89	20.8
KM28-H6	28	22	130	12.17	19.3	18.23
KM28-H7	28	22	130	13.69	21.72	16.19
KM28-H8	28	22	130	16.71	26.54	13.22
KM28-H9	28	22	130	19.76	31.37	11.2
KM30-L1	30	24	50	3.18	7.62	11.26
KM30-L2	30	24	50	4.22	10.16	8.42
KM30-L3	30	24	50	5.28	12.7	6.74
KM30-L4	30	24	50	6.32	15.24	5.61
KM30-L5	30	24	50	7.39	17.78	4.81
KM30-L6	30	24	50	8.43	20.32	4.21
KM30-L7	30	24	50	9.5	22.86	3.74
KM30-L8	30	24	50	11.61	27.94	3.06
KM30-L9	30	24	50	13.72	33.02	2.59
KM30-M1	30	24	90	3.51	7.62	21.9
KM30-M2	30	24	90	4.7	10.16	16.48
KM30-M3	30	24	90	5.87	12.7	13.18
KM30-M4	30	24	90	7.04	15.24	10.98
KM30-M5	30	24	90	8.2	17.78	9.39
KM30-M6	30	24	90	9.37	20.32	8.22
KM30-M7	30	24	90	10.54	22.86	7.31
KM30-M8	30	24	90	12.9	27.94	5.98
KM30-M9	30	24	90	15.24	33.02	5.06
KM30-H1	30	24	130	4.19	7.62	37.9
KM30-H2	30	24	130	5.59	10.16	28.45
KM30-H3	30	24	130	6.99	12.7	22.77
KM30-H4	30	24	130	8.38	15.24	18.95
KM30-H5	30	24	130	9.78	17.78	16.25
KM30-H6	30	24	130	11.18	20.32	14.22
KM30-H7	30	24	130	12.57	22.86	12.63
KM30-H8	30	24	130	15.37	27.94	10.34
KM30-H9	30	24	130	18.16	33.02	8.75
KM35-L1	35	27	70	3.94	8.38	15.77
KM35-L2	35	27	70	5.23	11.18	11.76
KM35-L3	35	27	70	6.55	13.97	9.43
KM35-L4	35	27	70	7.87	16.76	7.87
KM35-L5	35	27	70	9.17	19.56	6.74
KM35-L6	35	27	70	10.49	22.35	5.9
KM35-L7	35	27	70	11.81	25.15	5.25
KM35-L8	35	27	70	14.43	30.73	4.29
KM35-L9	35	27	70	17.04	36.32	3.63
KM35-M1	35	27	110	4.14	8.38	25.94
KM35-M2	35	27	110	5.51	11.18	19.4
KM35-M3	35	27	110	6.88	13.97	15.51
KM35-M4	35	27	110	8.26	16.76	12.94
KM35-M5	35	27	110	9.63	19.56	11.08
KM35-M6	35	27	110	11.02	22.35	9.71
KM35-M7	35	27	110	12.4	25.15	8.63
KM35-M8	35	27	110	15.14	30.73	7.06
KM35-M9	35	27	110	17.91	36.32	5.98
KM35-H1	35	27	160	4.04	8.38	36.87
KM35-H2	35	27	160	5.38	11.18	27.59
KM35-H3	35	27	160	6.73	13.97	22.1
KM35-H4	35	27	160	8.08	16.76	18.43
KM35-H5	35	27	160	9.42	19.56	15.78
KM35-H6	35	27	160	10.77	22.35	13.82
KM35-H7	35	27	160	12.12	25.15	12.28
KM35-H8	35	27	160	14.81	30.73	10.05
KM35-H9	35	27	160	17.5	36.32	8.5
KM40-L1	40	30	100	2.9	9.14	16.03
KM40-L2	40	30	100	3.86	12.19	12
KM40-L3	40	30	100	4.8	15.24	9.58
KM40-L4	40	30	100	5.77	18.29	7.99
KM40-L5	40	30	100	6.73	21.34	6.84
KM40-L6	40	30	100	7.7	24.38	6
KM40-L7	40	30	100	8.66	27.43	5.33
KM40-L8	40	30	100	10.59	33.53	4.36
KM40-L9	40	30	100	12.52	39.62	3.69
KM40-M1	40	30	150	5.44	9.14	40.54
KM40-M2	40	30	150	7.24	12.19	30.3
KM40-M3	40	30	150	9.04	15.24	24.19
KM40-M4	40	30	150	10.85	18.29	20.16
KM40-M5	40	30	150	12.65	21.34	17.26
KM40-M6	40	30	150	14.48	24.38	15.15
KM40-M7	40	30	150	16.28	27.43	13.45
KM40-M8	40	30	150	19.89	33.53	11
KM40-M9	40	30	150	23.5	39.62	9.31
KM40-H1	40	30	300	5.66	9.14	86.21
KM40-H2	40	30	300	7.54	12.19	64.52
KM40-H3	40	30	300	9.42	15.24	51.55
KM40-H4	40	30	300	11.33	18.29	43.1
KM40-H5	40	30	300	13.21	21.34	36.9
KM40-H6	40	30	300	15.09	24.38	32.29
KM40-H7	40	30	300	16.97	27.43	28.68
KM40-H8	40	30	300	20.75	33.53	23.47
KM40-H9	40	30	300	24.54	39.62	19.89
KM45-L1	45	35	110	3.38	9.91	16.85
KM45-L2	45	35	110	4.52	13.21	12.66
KM45-L3	45	35	110	5.64	16.51	10.12
KM45-L4	45	35	110	6.76	19.81	8.43
KM45-L5	45	35	110	7.9	23.11	7.23
KM45-L6	45	35	110	9.02	26.42	6.32
KM45-L7	45	35	110	10.16	29.72	5.62
KM45-L8	45	35	110	12.4	36.32	4.6
KM45-L9	45	35	110	14.66	42.93	3.89
KM45-M1	45	35	225	5.33	9.91	49.13
KM45-M2	45	35	225	6.99	13.21	36.17
KM45-M3	45	35	225	9.14	16.51	30.53
KM45-M4	45	35	225	10.8	19.81	24.97
KM45-M5	45	35	225	12.7	23.11	21.61
KM45-M6	45	35	225	14.48	26.42	18.84
KM45-M7	45	35	225	16.26	29.72	16.72
KM45-M8	45	35	225	19.81	36.32	13.63
KM45-M9	45	35	225	23.37	42.93	11.5
KM45-H1	45	35	400	6.43	9.91	114.94
KM45-H2	45	35	400	8.38	13.21	82.82
KM45-H3	45	35	400	11.2	16.51	75.33
KM45-H4	45	35	400	12.95	19.81	58.31
KM45-H5	45	35	400	15.37	23.11	51.68
KM45-H6	45	35	400	17.27	26.42	43.72
KM45-H7	45	35	400	19.68	29.72	39.88
KM45-H8	45	35	400	24.26	36.32	33.17
KM45-H9	45	35	400	28.45	42.93	27.62
KM50-L1	50	40	110	4.83	10.29	20.15
KM50-L2	50	40	110	6.1	13.72	14.44
KM50-L3	50	40	110	7.87	17.15	11.85
KM50-L4	50	40	110	9.4	20.57	9.85
KM50-L5	50	40	110	11.3	24	8.66
KM50-L6	50	40	110	12.7	27.43	7.47
KM50-L7	50	40	110	14.99	30.86	6.93
KM50-L8	50	40	110	18.16	37.72	5.62
KM50-L9	50	40	110	21.34	44.58	4.73
KM50-L10	50	40	110	24.64	51.44	4.1
KM50-M1	50	40	225	4.62	10.29	39.68
KM50-M2	50	40	225	6.35	13.72	30.53
KM50-M3	50	40	225	7.49	17.15	23.29
KM50-M4	50	40	225	8.89	20.57	19.26
KM50-M5	50	40	225	10.54	24	16.72
KM50-M6	50	40	225	11.89	27.43	14.48
KM50-M7	50	40	225	13.59	30.86	13.03
KM50-M8	50	40	225	16.71	37.72	10.71
KM50-M9	50	40	225	19.61	44.58	9.01
KM50-M10	50	40	225	22.48	51.44	7.77
KM50-H1	50	40	400	5.92	10.29	91.53
KM50-H2	50	40	400	7.8	13.72	67.57
KM50-H3	50	40	400	10.16	17.15	57.22
KM50-H4	50	40	400	11.79	20.57	45.56
KM50-H5	50	40	400	14.15	24	40.61
KM50-H6	50	40	400	15.62	27.43	33.87
KM50-H7	50	40	400	17.91	30.86	30.89
KM50-H8	50	40	400	21.54	37.72	24.72
KM50-H9	50	40	400	25.65	44.58	21.13
KM50-H10	50	40	400	29.21	51.44	17.99
KM55-L1	55	45	125	5.59	11.05	22.89
KM55-L2	55	45	125	7.72	14.73	17.83
KM55-L3	55	45	125	9.68	18.41	14.3
KM55-L4	55	45	125	11.48	22.1	11.77
KM55-L5	55	45	125	13.92	25.78	10.54
KM55-L6	55	45	125	15.52	29.46	8.97
KM55-L7	55	45	125	18.41	33.15	8.49
KM55-L8	55	45	125	21.67	40.51	6.63
KM55-L9	55	45	125	25.65	47.88	5.62
KM55-L10	55	45	125	29.77	55.25	4.91
KM55-M1	55	45	250	3.1	11.05	31.45
KM55-M2	55	45	250	4.11	14.73	23.54
KM55-M3	55	45	250	5.16	18.41	18.85
KM55-M4	55	45	250	6.2	22.1	15.72
KM55-M5	55	45	250	7.21	25.78	13.46
KM55-M6	55	45	250	8.26	29.46	11.79
KM55-M7	55	45	250	9.27	33.15	10.47
KM55-M8	55	45	250	11.33	40.51	8.57
KM55-M9	55	45	250	13.41	47.88	7.25
KM55-M10	55	45	250	15.47	55.25	6.28
KM55-H1	55	45	400	5.31	11.05	69.69
KM55-H2	55	45	400	7.24	14.73	53.4
KM55-H3	55	45	400	9.09	18.41	42.87
KM55-H4	55	45	400	10.64	22.1	34.9
KM55-H5	55	45	400	12.24	25.78	29.54
KM55-H6	55	45	400	14.1	29.46	26.04
KM55-H7	55	45	400	15.82	33.15	23.08
KM55-H8	55	45	400	19.3	40.51	18.86
KM55-H9	55	45	400	23.11	47.88	16.15
KM55-H10	55	45	400	26.54	55.25	13.93
KM60-L1	60	50	135	5.59	11.43	23.12
KM60-L2	60	50	135	7.47	15.24	17.37
KM60-L3	60	50	135	9.32	19.05	13.87
KM60-L4	60	50	135	11.2	22.86	11.58
KM60-L5	60	50	135	13.06	26.67	9.92
KM60-L6	60	50	135	14.94	30.48	8.69
KM60-L7	60	50	135	16.79	34.29	7.71
KM60-L8	60	50	135	20.52	41.91	6.31
KM60-L9	60	50	135	24.26	49.53	5.34
KM60-L10	60	50	135	27.99	57.15	4.63
KM60-M1	60	50	275	6.65	11.43	57.53
KM60-M2	60	50	275	8.86	15.24	43.1
KM60-M3	60	50	275	11.07	19.05	34.46
KM60-M4	60	50	275	13.28	22.86	28.71
KM60-M5	60	50	275	15.49	26.67	24.6
KM60-M6	60	50	275	17.7	30.48	21.52
KM60-M7	60	50	275	19.94	34.29	19.16
KM60-M8	60	50	275	24.36	41.91	15.67
KM60-M9	60	50	275	28.78	49.53	13.25
KM60-M10	60	50	275	33.22	57.15	11.49
KM60-H1	60	50	450	7.75	11.43	122.28
KM60-H2	60	50	450	10.31	15.24	91.28
KM60-H3	60	50	450	12.9	19.05	73.17
KM60-H4	60	50	450	15.47	22.86	60.89
KM60-H5	60	50	450	18.06	26.67	52.26
KM60-H6	60	50	450	20.62	30.48	45.64
KM60-H7	60	50	450	23.22	34.29	40.65
KM60-H8	60	50	450	28.37	41.91	33.23
KM60-H9	60	50	450	33.53	49.53	28.13
KM60-H10	60	50	450	38.68	57.15	24.36
