multi-turn wave springs without shim ends K series

Multi-Turn Wave Springs Without Shim Ends are advanced spring components designed for compact installation and weight-sensitive environments. Featuring a peak-to-trough multi-layer wave structure with no support coils at either end, these springs maximize elasticity and support in limited spaces. The effective number of coils equals the total number of coils, as upper and lower layers are in direct contact at the peaks and valleys, creating a more compact and efficient spring.

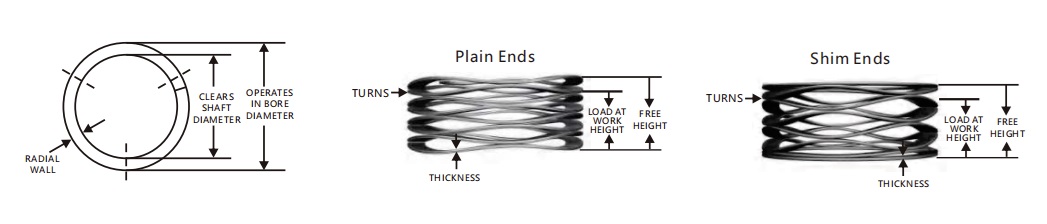

Multi-turn wave springs without shim ends

Key Features & Benefits

• Shimless Design: The absence of support coils at the ends allows for a more compact and lightweight spring, reducing structural complexity.
• Multi-Coil Structure: Multiple wave layers provide enhanced elasticity and deformation, adapting to a wide range of operational conditions.
• Maximum Coil Effectiveness: Upper and lower layers contact at peaks and valleys, resulting in full utilization of the spring’s coils for greater support and elastic force.
• Material Selection: Made from high-strength steel or alloy materials, ensuring reliability and durability under high loads and cyclic stress.
• Vibration & Impact Cushioning: Excellent performance for cyclic loading and vibration damping, ideal for dynamic mechanical environments.

Applications

• Aerospace systems requiring compact, lightweight springs
• Precision machinery with limited installation space
• Hydraulic seals and high-end electric motors
• Automotive and general mechanical equipment for impact and vibration absorption

Multi-Turn Wave Springs Without Shim Ends are the optimal solution for weight-restricted, compact spaces in aerospace, precision engineering, and other demanding industries. Their innovative design and high-performance materials ensure reliable, long-lasting elasticity and support.
