multi-turn wave spring with shim ends KS series

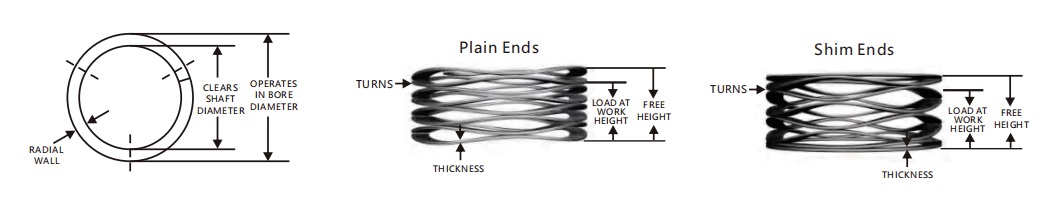

Multi-turn wave springs with shimmed ends have a flat ring at each end to act as a support ring, and are available in peak to valley.

Description

Multi-Turn Wave Springs with Shim Ends feature a specialized multi-coil structure designed for stable elasticity ratios and precise load control. The top and bottom layers contact at the crests and valleys, with the effective number of coils being two fewer than the total number. Shim ends provide increased contact surface, ensuring optimal structural stability and uniform load distribution, while minimizing localized stress concentrations.

Multi-turn wave spring with shim ends

Key Features & Benefits

Structural Stability: Shim ends increase contact area for enhanced stability and more uniform load distribution.
Precise Load Control: The load is proportional to deflection, ensuring accurate response under various operating conditions.
Vibration Damping: Effectively cushions shocks and vibrations, ideal for high-frequency and large movement applications.
Multi-Coil Design: Multiple coils provide superior elasticity, deformation ability, and high load capacity.
Durability: Manufactured from high-strength materials such as alloy steel for improved fatigue life and long-term reliability.

Applications

Automobile suspension systems
Mechanical equipment
Electronic products
Other high-performance and high-reliability scenarios

Multi-Turn Wave Springs with Shim Ends are the preferred solution for demanding applications requiring stable elasticity, precise load control, and effective vibration damping. Their advanced design and robust materials deliver reliable performance and extended service life, making them indispensable in automotive, industrial, and electronic assemblies.

Technical Parameters1

Item No.	Operates in Bore Diameter(mm)	Clears Shaft Diameter(mm)	Load(N)	Work Height(mm)	Free Height(mm)	Spring Rate(N/mm)
KS018-L1	4.78	3.18	4.45	0.89	1.91	4.38
KS018-L2	4.78	3.18	4.45	1.17	2.54	3.24
KS018-L3	4.78	3.18	4.45	1.45	3.18	2.57
KS018-L4	4.78	3.18	4.45	1.73	3.81	2.14
KS018-L5	4.78	3.18	4.45	2.01	4.45	1.82
KS018-L6	4.78	3.18	4.45	2.29	5.08	1.59
KS018-L7	4.78	3.18	4.45	2.57	5.74	1.4
KS018-L8	4.78	3.18	4.45	3.12	7.01	1.14
KS018-L9	4.78	3.18	4.45	3.68	8.28	0.96
KS018-M1	4.78	3.18	9.78	1.19	2.26	15
KS018-M2	4.78	3.18	9.78	1.6	3.02	6.88
KS018-M3	4.78	3.18	9.78	2.01	3.78	5.5
KS018-M4	4.78	3.18	9.78	2.41	4.55	4.59
KS018-M5	4.78	3.18	9.78	2.82	5.31	3.92
KS018-M6	4.78	3.18	9.78	3.23	6.07	3.43
KS018-M7	4.78	3.18	9.78	3.63	6.81	3.08
KS018-M8	4.78	3.18	9.78	4.42	8.33	2.5
KS018-M9	4.78	3.18	9.78	5.16	9.86	2.5
KS021-L1	5.56	3.56	6.67	1.02	2.01	6.74
KS021-L2	5.56	3.56	6.67	1.35	2.67	5.04
KS021-L3	5.56	3.56	6.67	1.68	3.33	4.04
KS021-L4	5.56	3.56	6.67	2.03	3.99	3.41
KS021-L5	5.56	3.56	6.67	2.34	4.65	2.89
KS021-L6	5.56	3.56	6.67	2.69	5.31	2.56
KS021-L7	5.56	3.56	6.67	3.05	5.99	2.26
KS021-L8	5.56	3.56	6.67	3.71	7.32	1.86
KS021-L9	5.56	3.56	6.67	4.34	8.64	1.56
KS021-M1	5.56	3.56	20	1.3	2.03	27.16
KS021-M2	5.56	3.56	20	1.73	2.72	20.2
KS021-M3	5.56	3.56	20	2.16	3.38	16.42
KS021-M4	5.56	3.56	20	2.57	4.06	13.35
KS021-M5	5.56	3.56	20	3	4.75	11.41
KS021-M6	5.56	3.56	20	3.43	5.44	9.98
KS021-M7	5.56	3.56	20	3.86	6.1	8.94
KS021-M8	5.56	3.56	20	4.75	7.47	7.37
KS021-M9	5.56	3.56	20	5.51	8.81	6.06
KS025-L1	6.35	3.81	8.89	0.84	1.91	8.4
KS025-L2	6.35	3.81	8.89	1.27	2.54	7
KS025-L3	6.35	3.81	8.89	1.52	3.18	5.425
KS025-L4	6.35	3.81	8.89	1.91	3.81	4.725
KS025-L5	6.35	3.81	8.89	2.16	4.45	3.85
KS025-L6	6.35	3.81	8.89	2.41	5.08	3.325
KS025-L7	6.35	3.81	8.89	3.05	5.72	3.325
KS025-L8	6.35	3.81	8.89	3.56	6.99	2.625
KS025-L9	6.35	3.81	8.89	4.32	8.26	2.275
KS025-M1	6.35	3.81	22.23	0.94	1.91	23.1
KS025-M2	6.35	3.81	22.23	1.22	2.54	16.8
KS025-M3	6.35	3.81	22.23	1.65	3.18	14.525
KS025-M4	6.35	3.81	22.23	1.91	3.81	11.725
KS025-M5	6.35	3.81	22.23	2.29	4.45	10.325
KS025-M6	6.35	3.81	22.23	2.54	5.08	8.75
KS025-M7	6.35	3.81	22.23	3.05	5.72	8.4
KS025-M8	6.35	3.81	22.23	3.76	6.99	6.825
KS025-M9	6.35	3.81	22.23	4.45	8.26	5.775
KS031-L1	7.92	5.08	13.34	1.78	2.9	11.9
KS031-L2	7.92	5.08	13.34	2.44	3.86	9.45
KS031-L3	7.92	5.08	13.34	3	4.83	7.35
KS031-L4	7.92	5.08	13.34	3.68	5.79	6.3
KS031-L5	7.92	5.08	13.34	4.19	6.76	5.25
KS031-L6	7.92	5.08	13.34	4.95	7.72	4.9
KS031-L7	7.92	5.08	13.34	5.46	8.69	4.2
KS031-L8	7.92	5.08	13.34	6.65	10.62	3.325
KS031-L9	7.92	5.08	13.34	7.85	12.55	2.8
KS031-M1	7.92	5.08	26.67	1.83	2.9	25.025
KS031-M2	7.92	5.08	26.67	2.44	3.86	18.725
KS031-M3	7.92	5.08	26.67	3.12	4.83	15.75
KS031-M4	7.92	5.08	26.67	3.66	5.79	12.425
KS031-M5	7.92	5.08	26.67	4.47	6.76	11.725
KS031-M6	7.92	5.08	26.67	5	7.72	9.8
KS031-M7	7.92	5.08	26.67	5.77	8.69	9.1
KS031-M8	7.92	5.08	26.67	7.06	10.62	7.525
KS031-M9	7.92	5.08	26.67	8.53	12.55	6.65
KS037-L1	9.53	6.35	17.78	1.57	3.81	7.875
KS037-L2	9.53	6.35	17.78	2.49	5.08	6.825
KS037-L3	9.53	6.35	17.78	2.74	6.35	4.9
KS037-L4	9.53	6.35	17.78	3.43	7.62	4.2
KS037-L5	9.53	6.35	17.78	3.81	8.89	3.5
KS037-L6	9.53	6.35	17.78	4.67	10.16	3.325
KS037-L7	9.53	6.35	17.78	4.95	11.43	2.8
KS037-L8	9.53	6.35	17.78	5.79	12.7	2.625
KS037-L9	9.53	6.35	17.78	6.1	13.97	2.275
KS037-M1	9.53	6.35	31.12	2.06	3.81	17.675
KS037-M2	9.53	6.35	31.12	3.02	5.08	15.05
KS037-M3	9.53	6.35	31.12	3.68	6.35	11.725
KS037-M4	9.53	6.35	31.12	4.57	7.62	10.15
KS037-M5	9.53	6.35	31.12	5.13	8.89	8.225
KS037-M6	9.53	6.35	31.12	6.1	10.16	7.7
KS037-M7	9.53	6.35	31.12	6.65	11.43	6.475
KS037-M8	9.53	6.35	31.12	7.57	12.7	6.125
KS037-M9	9.53	6.35	31.12	8.31	13.97	5.425
KS043-L1	11.1	7.14	17.78	1.6	4.19	6.825
KS043-L2	11.1	7.14	17.78	2.36	5.59	5.425
KS043-L3	11.1	7.14	17.78	2.77	6.99	4.2
KS043-L4	11.1	7.14	17.78	3.63	8.38	3.675
KS043-L5	11.1	7.14	17.78	4.06	9.78	3.15
KS043-L6	11.1	7.14	17.78	4.95	11.18	2.8
KS043-L7	11.1	7.14	17.78	5.33	12.57	2.45
KS043-L8	11.1	7.14	17.78	6.1	13.97	2.275
KS043-L9	11.1	7.14	17.78	6.6	15.37	2.1
KS043-M1	11.1	7.14	35.56	2.08	4.19	16.8
KS043-M2	11.1	7.14	35.56	2.92	5.59	13.3
KS043-M3	11.1	7.14	35.56	3.61	6.99	10.5
KS043-M4	11.1	7.14	35.56	4.55	8.38	9.275
KS043-M5	11.1	7.14	35.56	5.03	9.78	7.525
KS043-M6	11.1	7.14	35.56	5.87	11.18	6.65
KS043-M7	11.1	7.14	35.56	6.48	12.57	5.775
KS043-M8	11.1	7.14	35.56	7.37	13.97	5.425
KS043-M9	11.1	7.14	35.56	8.1	15.37	4.9
KS050-L1	12.7	7.92	22.23	1.57	4.57	7.35
KS050-L2	12.7	7.92	22.23	2.29	6.1	5.775
KS050-L3	12.7	7.92	22.23	2.72	7.62	4.55
KS050-L4	12.7	7.92	22.23	3.45	9.14	3.85
KS050-L5	12.7	7.92	22.23	3.81	10.67	3.325
KS050-L6	12.7	7.92	22.23	4.57	12.19	2.975
KS050-L7	12.7	7.92	22.23	4.95	13.72	2.45
KS050-L8	12.7	7.92	22.23	5.59	15.24	2.275
KS050-L9	12.7	7.92	22.23	6.1	16.76	2.1
KS050-M1	12.7	7.92	44.45	1.65	4.57	15.225
KS050-M2	12.7	7.92	44.45	2.34	6.1	11.9
KS050-M3	12.7	7.92	44.45	2.9	7.62	9.45
KS050-M4	12.7	7.92	44.45	3.73	9.14	8.225
KS050-M5	12.7	7.92	44.45	4.11	10.67	6.825
KS050-M6	12.7	7.92	44.45	4.98	12.19	6.125
KS050-M7	12.7	7.92	44.45	5.26	13.72	5.25
KS050-M8	12.7	7.92	44.45	6.25	15.24	4.9
KS050-M9	12.7	7.92	44.45	6.71	16.76	4.375
KS050-H1	12.7	7.92	66.68	1.91	4.57	25.025
KS050-H2	12.7	7.92	66.68	2.79	6.1	20.125
KS050-H3	12.7	7.92	66.68	3.45	7.62	15.925
KS050-H4	12.7	7.92	66.68	4.24	9.14	13.65
KS050-H5	12.7	7.92	66.68	4.62	10.67	11.025
KS050-H6	12.7	7.92	66.68	5.49	12.19	9.975
KS050-H7	12.7	7.92	66.68	6.1	13.72	8.75
KS050-H8	12.7	7.92	66.68	7.11	15.24	8.225
KS050-H9	12.7	7.92	66.68	7.92	16.76	7.525
KS056-L1	14.27	9.53	22.23	2.03	4.95	7.525
KS056-L2	14.27	9.53	22.23	3.18	6.6	6.475
KS056-L3	14.27	9.53	22.23	3.43	8.26	4.55
KS056-L4	14.27	9.53	22.23	4.57	9.91	4.2
KS056-L5	14.27	9.53	22.23	4.83	11.56	3.325
KS056-L6	14.27	9.53	22.23	5.84	13.21	2.975
KS056-L7	14.27	9.53	22.23	6.6	14.86	2.625
KS056-L8	14.27	9.53	22.23	7.24	16.51	2.45
KS056-L9	14.27	9.53	22.23	8	18.16	2.275
KS056-M1	14.27	9.53	48.9	2.18	4.95	17.675
KS056-M2	14.27	9.53	48.9	3.12	6.6	14
KS056-M3	14.27	9.53	48.9	3.68	8.26	10.675
KS056-M4	14.27	9.53	48.9	4.75	9.91	9.45
KS056-M5	14.27	9.53	48.9	5.31	11.56	7.875
KS056-M6	14.27	9.53	48.9	6.43	13.21	7.175
KS056-M7	14.27	9.53	48.9	6.93	14.86	6.125
KS056-M8	14.27	9.53	48.9	8.08	16.51	5.775
KS056-M9	14.27	9.53	48.9	8.71	18.16	5.25
KS056-H1	14.27	9.53	80.02	2.36	4.95	30.8
KS056-H2	14.27	9.53	80.02	3.45	6.6	25.375
KS056-H3	14.27	9.53	80.02	4.19	8.26	19.775
KS056-H4	14.27	9.53	80.02	5.38	9.91	17.675
KS056-H5	14.27	9.53	80.02	6.22	11.56	15.05
KS056-H6	14.27	9.53	80.02	7.16	13.21	13.3
KS056-H7	14.27	9.53	80.02	8.2	14.86	12.075
KS056-H8	14.27	9.53	80.02	9.14	16.51	10.85
KS056-H9	14.27	9.53	80.02	10.36	18.16	10.325
KS062-L1	15.88	11.43	24.15	1.7	4.57	8.4
KS062-L2	15.88	11.43	25	2	6.1	6.125
KS062-L3	15.88	11.43	26.67	2.16	7.62	4.9
KS062-L4	15.88	11.43	26.67	2.69	9.14	4.2
KS062-L5	15.88	11.43	26.67	3.25	10.67	3.675
KS062-L6	15.88	11.43	26.67	4.19	13.72	2.8
KS062-L7	15.88	11.43	26.67	5.13	16.76	2.275
KS062-L8	15.88	11.43	26.67	6.05	19.81	1.925
KS062-M1	15.88	11.43	53.34	2.64	4.57	27.65
KS062-M2	15.88	11.43	53.34	3.3	6.1	19.075
KS062-M3	15.88	11.43	53.34	4.45	7.62	16.8
KS062-M4	15.88	11.43	53.34	5.23	9.14	13.65
KS062-M5	15.88	11.43	53.34	6.25	10.67	12.075
KS062-M6	15.88	11.43	53.34	8.05	13.72	9.45
KS062-M7	15.88	11.43	53.34	9.8	16.76	7.7
KS062-M8	15.88	11.43	53.34	11.53	19.81	6.475
KS062-H1	15.88	11.43	88.91	2.59	4.57	44.8
KS062-H2	15.88	11.43	88.91	3.43	6.1	33.25
KS062-H3	15.88	11.43	88.91	4.45	7.62	28
KS062-H4	15.88	11.43	88.91	5.21	9.14	22.575
KS062-H5	15.88	11.43	88.91	6.22	10.67	19.95
KS062-H6	15.88	11.43	88.91	8	13.72	15.575
KS062-H7	15.88	11.43	88.91	9.91	16.76	12.95
KS062-H8	15.88	11.43	88.91	11.81	19.81	11.025
KS075-L1	19.05	13.97	31.12	3.61	6.35	11.375
KS075-L2	19.05	13.97	31.12	4.75	8.46	8.4
KS075-L3	19.05	13.97	31.12	6.25	10.59	7.175
KS075-L4	19.05	13.97	31.12	7.24	12.7	5.775
KS075-L5	19.05	13.97	31.12	8.84	14.81	5.25
KS075-L6	19.05	13.97	31.12	11.33	19.05	4.025
KS075-L7	19.05	13.97	31.12	14.73	25.4	2.975
KS075-M1	19.05	13.97	57.79	4.04	6.35	25.025
KS075-M2	19.05	13.97	57.79	5.16	8.46	17.5
KS075-M3	19.05	13.97	57.79	6.86	10.59	15.4
KS075-M4	19.05	13.97	57.79	7.98	12.7	12.25
KS075-M5	19.05	13.97	57.79	9.68	14.81	11.2
KS075-M6	19.05	13.97	57.79	12.42	19.05	8.75
KS075-M7	19.05	13.97	57.79	16.48	25.4	6.475
KS075-H1	19.05	13.97	97.8	4.29	6.35	47.6
KS075-H2	19.05	13.97	97.8	5.46	8.46	32.55
KS075-H3	19.05	13.97	97.8	7.39	10.59	30.625
KS075-H4	19.05	13.97	97.8	8.51	12.7	23.275
KS075-H5	19.05	13.97	97.8	10.29	14.81	21.7
KS075-H6	19.05	13.97	97.8	13.36	19.05	17.15
KS075-H7	19.05	13.97	97.8	17.75	25.4	12.775
KS087-L1	22.23	15.24	53.34	2.97	6.35	15.75
KS087-L2	22.23	15.24	53.34	4.01	8.46	12.075
KS087-L3	22.23	15.24	53.34	5.26	10.59	9.975
KS087-L4	22.23	15.24	53.34	6.15	12.7	8.225
KS087-L5	22.23	15.24	53.34	7.29	14.81	7.175
KS087-L6	22.23	15.24	53.34	9.6	19.05	5.6
KS087-L7	22.23	15.24	53.34	12.65	25.4	4.2
KS087-M1	22.23	15.24	80.02	3.15	6.35	25.9
KS087-M2	22.23	15.24	80.02	4.17	8.46	18.9
KS087-M3	22.23	15.24	80.02	5.44	10.59	15.575
KS087-M4	22.23	15.24	80.02	6.4	12.7	13.3
KS087-M5	22.23	15.24	80.02	7.52	14.81	11.55
KS087-M6	22.23	15.24	80.02	9.78	19.05	8.75
KS087-M7	22.23	15.24	80.02	12.93	25.4	6.65
KS087-H1	22.23	15.24	111.13	4.22	6.35	52.15
KS087-H2	22.23	15.24	111.13	5.44	8.46	36.75
KS087-H3	22.23	15.24	111.13	7.06	10.59	31.5
KS087-H4	22.23	15.24	111.13	8.31	12.7	25.375
KS087-H5	22.23	15.24	111.13	10.03	14.81	23.275
KS087-H6	22.23	15.24	111.13	12.95	19.05	18.2
KS087-H7	22.23	15.24	111.13	17.02	25.4	13.65
KS100-L1	25.4	18.54	53.34	2.13	6.35	12.6
KS100-L2	25.4	18.54	53.34	2.74	8.46	9.275
KS100-L3	25.4	18.54	53.34	3.68	10.59	7.7
KS100-L4	25.4	18.54	53.34	4.19	12.7	6.3
KS100-L5	25.4	18.54	53.34	5.11	14.81	5.425
KS100-L6	25.4	18.54	53.34	6.55	19.05	4.2
KS100-L7	25.4	18.54	53.34	8.69	25.4	3.15

Technical Parameters2

Item No.	Operates in Bore Diameter(mm)	Clears Shaft Diameter(mm)	Load(N)	Work Height(mm)	Free Height(mm)	Spring Rate(N/mm)
KS100-L8	25.4	18.54	53.34	11.3	31.75	2.625
KS100-L9	25.4	18.54	53.34	13.18	38.1	2.1
KS100-L10	25.4	18.54	53.34	16.08	44.45	1.925
KS100-L11	25.4	18.54	53.34	18.03	50.8	1.575
KS100-M1	25.4	18.54	80.02	2.21	6.35	19.25
KS100-M2	25.4	18.54	80.02	2.87	8.46	14.35
KS100-M3	25.4	18.54	80.02	3.76	10.59	11.725
KS100-M4	25.4	18.54	80.02	4.45	12.7	9.625
KS100-M5	25.4	18.54	80.02	5.38	14.81	8.575
KS100-M6	25.4	18.54	80.02	7.01	19.05	6.65
KS100-M7	25.4	18.54	80.02	9.14	25.4	4.9
KS100-M8	25.4	18.54	80.02	11.48	31.75	4.025
KS100-M9	25.4	18.54	80.02	13.94	38.1	3.325
KS100-M10	25.4	18.54	80.02	16.51	44.45	2.8
KS100-M11	25.4	18.54	80.02	18.29	50.8	2.45
KS100-H1	25.4	18.54	111.13	3.33	6.35	36.75
KS100-H2	25.4	18.54	111.13	4.42	8.46	27.475
KS100-H3	25.4	18.54	111.13	5.77	10.59	23.1
KS100-H4	25.4	18.54	111.13	6.76	12.7	18.725
KS100-H5	25.4	18.54	111.13	8.1	14.81	16.625
KS100-H6	25.4	18.54	111.13	10.31	19.05	12.775
KS100-H7	25.4	18.54	111.13	13.74	25.4	9.45
KS100-H8	25.4	18.54	111.13	17.48	31.75	7.875
KS100-H9	25.4	18.54	111.13	20.65	38.1	6.3
KS100-H10	25.4	18.54	111.13	24.31	44.45	5.6
KS100-H11	25.4	18.54	111.13	27.51	50.8	4.725
KS112-L1	28.58	21.59	53.34	3.71	7.62	13.65
KS112-L2	28.58	21.59	53.34	4.72	10.16	9.8
KS112-L3	28.58	21.59	53.34	6.35	12.7	8.4
KS112-L4	28.58	21.59	53.34	7.49	15.24	6.825
KS112-L5	28.58	21.59	53.34	8.74	17.78	5.95
KS112-L6	28.58	21.59	53.34	9.96	20.32	5.075
KS112-L7	28.58	21.59	53.34	12.4	25.4	4.025
KS112-L8	28.58	21.59	53.34	16.74	33.02	3.325
KS112-L9	28.58	21.59	53.34	20.5	40.64	2.625
KS112-L10	28.58	21.59	53.34	25.83	50.8	2.1
KS112-M1	28.58	21.59	88.91	4.06	7.62	25.025
KS112-M2	28.58	21.59	88.91	5.13	10.16	17.675
KS112-M3	28.58	21.59	88.91	6.86	12.7	15.225
KS112-M4	28.58	21.59	88.91	8.08	15.24	12.425
KS112-M5	28.58	21.59	88.91	9.68	17.78	11.025
KS112-M6	28.58	21.59	88.91	10.85	20.32	9.45
KS112-M7	28.58	21.59	88.91	13.61	25.4	7.525
KS112-M8	28.58	21.59	88.91	17.98	33.02	5.95
KS112-M9	28.58	21.59	88.91	21.87	40.64	4.725
KS112-M10	28.58	21.59	88.91	27.64	50.8	3.85
KS112-H1	28.58	21.59	133.36	4.52	7.62	43.05
KS112-H2	28.58	21.59	133.36	5.82	10.16	30.625
KS112-H3	28.58	21.59	133.36	7.7	12.7	26.6
KS112-H4	28.58	21.59	133.36	8.89	15.24	21
KS112-H5	28.58	21.59	133.36	10.69	17.78	18.9
KS112-H6	28.58	21.59	133.36	11.94	20.32	15.925
KS112-H7	28.58	21.59	133.36	15.06	25.4	12.95
KS112-H8	28.58	21.59	133.36	19.99	33.02	10.15
KS112-H9	28.58	21.59	133.36	24.28	40.64	8.225
KS112-H10	28.58	21.59	133.36	30.53	50.8	6.65
KS125-L1	31.75	25.4	53.34	2.13	7.62	9.8
KS125-L2	31.75	25.4	53.34	2.87	10.16	7.35
KS125-L3	31.75	25.4	53.34	3.78	12.7	5.95
KS125-L4	31.75	25.4	53.34	4.37	15.24	4.9
KS125-L5	31.75	25.4	53.34	5.26	17.78	4.2
KS125-L6	31.75	25.4	53.34	5.77	20.32	3.675
KS125-L7	31.75	25.4	53.34	7.65	25.4	2.975
KS125-L8	31.75	25.4	53.34	10.03	33.02	2.275
KS125-L9	31.75	25.4	53.34	11.86	40.64	1.925
KS125-L10	31.75	25.4	53.34	15.01	50.8	1.575
KS125-M1	31.75	25.4	88.91	3.15	7.62	19.95
KS125-M2	31.75	25.4	88.91	4.19	10.16	14.875
KS125-M3	31.75	25.4	88.91	5.46	12.7	12.25
KS125-M4	31.75	25.4	88.91	6.43	15.24	10.15
KS125-M5	31.75	25.4	88.91	7.7	17.78	8.75
KS125-M6	31.75	25.4	88.91	8.66	20.32	7.7
KS125-M7	31.75	25.4	88.91	10.85	25.4	6.125
KS125-M8	31.75	25.4	88.91	14.66	33.02	4.9
KS125-M9	31.75	25.4	88.91	17.58	40.64	3.85
KS125-M10	31.75	25.4	88.91	22	50.8	3.15
KS125-H1	31.75	25.4	133.36	4.01	7.62	36.75
KS125-H2	31.75	25.4	133.36	5.33	10.16	27.65
KS125-H3	31.75	25.4	133.36	6.91	12.7	23.1
KS125-H4	31.75	25.4	133.36	8.13	15.24	18.725
KS125-H5	31.75	25.4	133.36	9.75	17.78	16.625
KS125-H6	31.75	25.4	133.36	11	20.32	14.35
KS125-H7	31.75	25.4	133.36	13.67	25.4	11.375
KS125-H8	31.75	25.4	133.36	18.21	33.02	8.925
KS125-H9	31.75	25.4	133.36	22.3	40.64	7.35
KS125-H10	31.75	25.4	133.36	28.02	50.8	5.775
KS137-L1	34.93	26.16	66.68	1.91	7.62	11.725
KS137-L2	34.93	26.16	66.68	2.51	10.16	8.75
KS137-L3	34.93	26.16	66.68	3.28	12.7	7
KS137-L4	34.93	26.16	66.68	3.94	15.24	5.95
KS137-L5	34.93	26.16	66.68	4.55	17.78	5.075
KS137-L6	34.93	26.16	66.68	5.23	20.32	4.375
KS137-L7	34.93	26.16	66.68	6.5	25.4	3.5
KS137-L8	34.93	26.16	66.68	8.66	33.02	2.8
KS137-L9	34.93	26.16	66.68	10.77	40.64	2.275
KS137-L10	34.93	26.16	66.68	13.46	50.8	1.75
KS137-M1	34.93	26.16	111.13	3.61	7.62	27.65
KS137-M2	34.93	26.16	111.13	4.72	10.16	20.475
KS137-M3	34.93	26.16	111.13	6.1	12.7	16.8
KS137-M4	34.93	26.16	111.13	7.14	15.24	13.65
KS137-M5	34.93	26.16	111.13	8.64	17.78	12.075
KS137-M6	34.93	26.16	111.13	9.75	20.32	10.5
KS137-M7	34.93	26.16	111.13	12.34	25.4	8.575
KS137-M8	34.93	26.16	111.13	16.05	33.02	6.475
KS137-M9	34.93	26.16	111.13	20.02	40.64	5.425
KS137-M10	34.93	26.16	111.13	24.94	50.8	4.375
KS137-H1	34.93	26.16	155.58	3.78	7.62	40.6
KS137-H2	34.93	26.16	155.58	4.8	10.16	29.05
KS137-H3	34.93	26.16	155.58	6.27	12.7	24.15
KS137-H4	34.93	26.16	155.58	7.29	15.24	19.6
KS137-H5	34.93	26.16	155.58	8.71	17.78	17.15
KS137-H6	34.93	26.16	155.58	9.91	20.32	14.875
KS137-H7	34.93	26.16	155.58	12.45	25.4	12.075
KS137-H8	34.93	26.16	155.58	16.41	33.02	9.45
KS137-H9	34.93	26.16	155.58	20.14	40.64	7.525
KS137-H10	34.93	26.16	155.58	25.4	50.8	6.125
KS150-L1	38.1	28.96	88.91	3.28	7.62	20.475
KS150-L2	38.1	28.96	88.91	4.17	10.16	14.875
KS150-L3	38.1	28.96	88.91	5.41	12.7	12.25
KS150-L4	38.1	28.96	88.91	6.27	15.24	9.975
KS150-L5	38.1	28.96	88.91	7.65	17.78	8.75
KS150-L6	38.1	28.96	88.91	8.56	20.32	7.525
KS150-L7	38.1	28.96	88.91	10.92	25.4	6.125
KS150-L8	38.1	28.96	88.91	14.35	33.02	4.725
KS150-L9	38.1	28.96	88.91	17.63	40.64	3.85
KS150-L10	38.1	28.96	88.91	22	50.8	3.15
KS150-M1	38.1	28.96	155.58	3.1	7.62	34.475
KS150-M2	38.1	28.96	155.58	4.01	10.16	25.375
KS150-M3	38.1	28.96	155.58	5.23	12.7	20.825
KS150-M4	38.1	28.96	155.58	6.12	15.24	16.975
KS150-M5	38.1	28.96	155.58	7.39	17.78	15.05
KS150-M6	38.1	28.96	155.58	8.23	20.32	12.95
KS150-M7	38.1	28.96	155.58	10.39	25.4	10.325
KS150-M8	38.1	28.96	155.58	13.72	33.02	8.05
KS150-M9	38.1	28.96	155.58	16.69	40.64	6.475
KS150-M10	38.1	28.96	155.58	21.21	50.8	5.25
KS150-H1	38.1	28.96	266.72	4.22	7.62	78.4
KS150-H2	38.1	28.96	266.72	5.49	10.16	57.05
KS150-H3	38.1	28.96	266.72	7.06	12.7	47.25
KS150-H4	38.1	28.96	266.72	8.36	15.24	38.675
KS150-H5	38.1	28.96	266.72	9.91	17.78	33.95
KS150-H6	38.1	28.96	266.72	11.25	20.32	29.4
KS150-H7	38.1	28.96	266.72	14.1	25.4	23.625
KS150-H8	38.1	28.96	266.72	18.44	33.02	18.375
KS150-H9	38.1	28.96	266.72	22.61	40.64	14.875
KS150-H10	38.1	28.96	266.72	28.42	50.8	11.9
KS175-L1	44.45	34.04	111.13	3.94	9.53	19.95
KS175-L2	44.45	34.04	111.13	5.08	12.7	14.525
KS175-L3	44.45	34.04	111.13	6.73	15.88	12.075
KS175-L4	44.45	34.04	111.13	7.87	19.05	9.975
KS175-L5	44.45	34.04	111.13	9.32	22.1	8.75
KS175-L6	44.45	34.04	111.13	10.54	25.4	7.525
KS175-L7	44.45	34.04	111.13	13.28	31.75	5.95
KS175-L8	44.45	34.04	111.13	16.21	38.1	5.075
KS175-L9	44.45	34.04	111.13	18.72	44.45	4.375
KS175-L10	44.45	34.04	111.13	21.44	50.8	3.85
KS175-M1	44.45	34.04	222.26	4.78	9.53	46.725
KS175-M2	44.45	34.04	222.26	6.2	12.7	34.125
KS175-M3	44.45	34.04	222.26	8	15.88	28.175
KS175-M4	44.45	34.04	222.26	9.5	19.05	23.275
KS175-M5	44.45	34.04	222.26	11.48	22.1	21
KS175-M6	44.45	34.04	222.26	12.83	25.4	17.675
KS175-M7	44.45	34.04	222.26	15.98	31.75	14.175
KS175-M8	44.45	34.04	222.26	19.51	38.1	11.9
KS175-M9	44.45	34.04	222.26	22.83	44.45	10.325
KS175-M10	44.45	34.04	222.26	26.06	50.8	8.925
KS175-H1	44.45	34.04	400.08	5.89	9.53	110.075
KS175-H2	44.45	34.04	400.08	7.98	12.7	84.7
KS175-H3	44.45	34.04	400.08	10.39	15.88	72.975
KS175-H4	44.45	34.04	400.08	12.24	19.05	58.8
KS175-H5	44.45	34.04	400.08	14.66	22.1	53.725
KS175-H6	44.45	34.04	400.08	16.54	25.4	45.15
KS175-H7	44.45	34.04	400.08	20.65	31.75	36.05
KS175-H8	44.45	34.04	400.08	24.89	38.1	30.275
KS175-H9	44.45	34.04	400.08	29.13	44.45	26.075
KS175-H10	44.45	34.04	400.08	33.45	50.8	23.1
KS200-L1	50.8	40.64	103.2	2.9	9.53	15.575
KS200-L2	50.8	40.64	104.1	3.5	12.7	11.55
KS200-L3	50.8	40.64	111.13	4.01	15.88	9.45
KS200-L4	50.8	40.64	111.13	4.55	19.05	7.7
KS200-L5	50.8	40.64	111.13	5.51	22.1	6.65
KS200-L6	50.8	40.64	111.13	6.17	25.4	5.775
KS200-L7	50.8	40.64	111.13	7.77	31.75	4.55
KS200-L8	50.8	40.64	111.13	9.27	38.1	3.85
KS200-L9	50.8	40.64	111.13	11	44.45	3.325
KS200-L10	50.8	40.64	111.13	12.45	50.8	2.975
KS200-M1	50.8	40.64	222.26	3.56	9.53	37.275
KS200-M2	50.8	40.64	222.26	4.67	12.7	27.65
KS200-M3	50.8	40.64	222.26	6.22	15.88	23.1
KS200-M4	50.8	40.64	222.26	7.06	19.05	18.55
KS200-M5	50.8	40.64	222.26	8.76	22.1	16.625
KS200-M6	50.8	40.64	222.26	10.03	25.4	14.525
KS200-M7	50.8	40.64	222.26	12.65	31.75	11.55
KS200-M8	50.8	40.64	222.26	15.06	38.1	9.625
KS200-M9	50.8	40.64	222.26	17.63	44.45	8.225
KS200-M10	50.8	40.64	222.26	20.32	50.8	7.35
KS200-H1	50.8	40.64	400.08	5	9.53	88.55
KS200-H2	50.8	40.64	400.08	6.55	12.7	65.1
KS200-H3	50.8	40.64	400.08	8.43	15.88	53.725
KS200-H4	50.8	40.64	400.08	9.88	19.05	43.575
KS200-H5	50.8	40.64	400.08	11.81	22.1	38.85
KS200-H6	50.8	40.64	400.08	13.34	25.4	33.075
KS200-H7	50.8	40.64	400.08	16.79	31.75	26.775
KS200-H8	50.8	40.64	400.08	19.84	38.1	21.875
KS200-H9	50.8	40.64	400.08	23.9	44.45	19.425
KS200-H10	50.8	40.64	400.08	27.15	50.8	16.975
