oil free scroll vacuum pump

oil free scroll vacuum pump for the aerospace industry

Oil-free scroll vacuum pump is a kind of high-efficiency, low-noise, fully oil-free vacuum pump, widely used in places requiring oil-free environment. It generates vacuum through the relative motion of the scroll disk and has stable performance and reliability.

Contact Us
Description

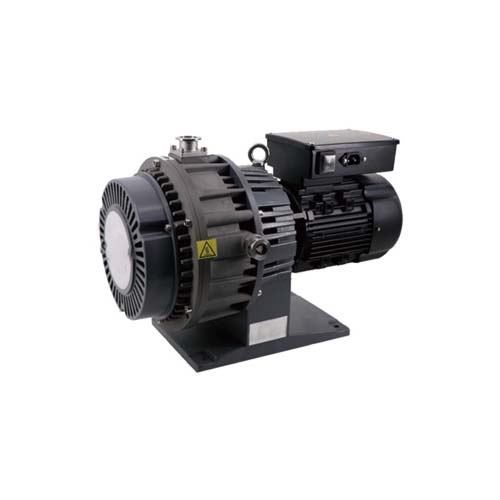

The oil-free scroll vacuum pump is a highly efficient, compact, and clean vacuum solution, widely used across industries where strict oil-free requirements and high vacuum performance are essential. Its advanced design—comprising a pump head, motor, and machine base—ensures reliable performance with minimal maintenance.

Working Principle

The pump operates via the relative rotation of a movable and a fixed scroll disk, forming a crescent-shaped compression chamber. As the chamber volume decreases, gas is drawn in, compressed, and discharged through the exhaust port. The scroll disks do not contact each other, eliminating friction loss and ensuring quiet, efficient operation. The unique involute spiral design enables continuous suction and compression for consistent vacuum performance.

Main Features

  1. All oil-free: No oil return or oil spray, making it ideal for environments with strict oil requirements and preventing oil/gas contamination.
  2. High vacuum capability: Achieves ultimate vacuum up to 1 Pa, suitable for various vacuum needs.
  3. Quiet operation: Non-contact scroll design significantly reduces noise and vibration for quieter work environments.
  4. Energy-saving & high efficiency: Delivers high pumping rates with low power consumption for reduced energy costs.
  5. Frequent start/stop: Can start and stop frequently between atmospheric and vacuum states, adapting to dynamic operational requirements.
  6. Compact design: Small, easy-to-install pump body saves valuable workspace.

Technical Parameters

  • Power: 0.55 to 1.5 kW
  • Pumping rate: 3.6 to 59.8 m³/h
  • Pressure: 0.1, 0.13 MPa

Performance Advantages

  1. High pumping speed: Models available from 4 m³/h up to 604 m³/h for different application sizes.
  2. Ultimate high vacuum: Achieves up to 1 Pa vacuum to meet stringent requirements.
  3. Low noise & vibration: Vortex design ensures smooth, quiet operation—ideal for noise-sensitive environments.
  4. Compact & lightweight: Space-saving and easy to install or relocate.
  5. Oil-free operation: No lubricating oil needed, eliminating the risk of oil pollution and simplifying maintenance.

Application Areas

  • Material processing: Vacuum heat treatment, vacuum drying, and more.
  • Photovoltaic industry: Vacuum technology for photovoltaic equipment manufacturing.
  • Food processing: Food packaging, vacuum encapsulation, and related uses.
  • Pharmaceutical & medical: Pharmaceutical production, vacuum sterilization, and medical applications.
  • Energy industry: Used in power plants, oil, and natural gas vacuum systems.
  • Aerospace: High-precision vacuum testing and manufacturing processes.
  • Inspection & analysis: Laboratory material testing and vacuum experiments.
  • Semiconductor manufacturing: Essential for vacuum processes in semiconductor production.
