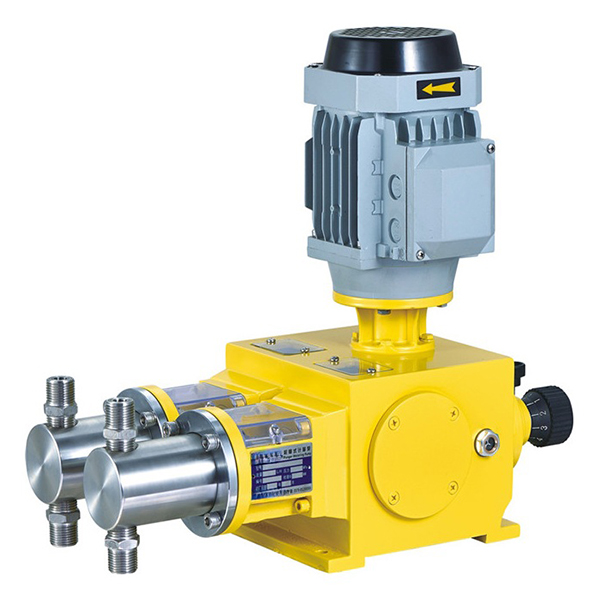

plunger metering pump with crankshaft adjustment mechanism

Advantages of plunger metering pump:

Ceramic plunger: The pump adopts high hardness ceramic plunger or ceramic spraying plunger, offering excellent corrosion resistance for harsh working conditions. Its smooth surface and high hardness deliver a service life over three times longer than traditional polished or electroplated plungers, suitable for long-term, high-load scenarios.
High-quality packing seal: Uses PTFE base material packing seal components, featuring corrosion resistance, self-lubrication, and high-pressure load capacity. Combined with the standard ceramic plunger, this significantly improves pump service life, reduces maintenance frequency, and enhances overall economic efficiency.
High load-bearing crankshaft adjustment mechanism: The pump features a high precision and stability stroke adjustment mechanism. Compared to traditional adjustment methods, the new crankshaft design delivers higher transmission efficiency, stronger load-bearing capacity, and more precise adjustment, ensuring long-term stable operation.
Energy-saving and cost-effective: The parallel design of the main drive shaft and regulating mechanism increases transmission efficiency, reduces energy consumption, and extends service life. This cost-effective design greatly reduces maintenance and operating costs.

Technical Parameters:

Flow range: 5 to 300L/H
Maximum pressure: 40MPa
Plunger material: ceramic; Valve ball material: ceramic, SUS stainless steel
Pump head material: 304, 316 (options: duplex steel, Alloy C-276, 904, titanium, PVDF, zirconium, etc.)
Motor: 380V, 3PH, 50HZ (options: 110-480V, single-phase, 60HZ, frequency conversion, explosion-proof, etc.)

plunger metering pump Technical features:

Flexible plunger size: Diameter from D6mm to D200mm, adapting to different flow requirements and supporting high-pressure applications.
Wide flow rate adjustment: Freely adjustable from 10% to 100%, metering accuracy up to ±1%. Pressure range up to 50MPa.
Flow regulation and control: Stroke length adjustment for accurate control. With frequency converter motor, supports motor frequency adjustment and remote control, as well as digital controller for on-site or remote monitoring.
Custom features: Available with thermal insulation pump head (steam, hot water, electric heating), parallel configurations for conveying different liquids, flow rates, and pressures.
Simple structure and cost-effective: Easy to maintain, highly cost-effective compared to similar products.
Suitable for high-viscosity media: Handles high-viscosity media, not recommended for corrosive slurries or hazardous chemicals.
Packing seal and maintenance: Packing seal assembly is core, with self-pressure locking and high-pressure capacity. Regular checking and adjustment of packing preload is required to maintain sealing.
Safety protection: No built-in safety relief device; install a safety valve at the outlet pipe for safe operation.

Applications:

Plunger metering pumps are widely used in various industrial fields requiring high precision, high pressure, and high viscosity transportation, including:

Chemical industry
Oil and gas
Electric power
Pharmaceutical
Metallurgy
Paper making
