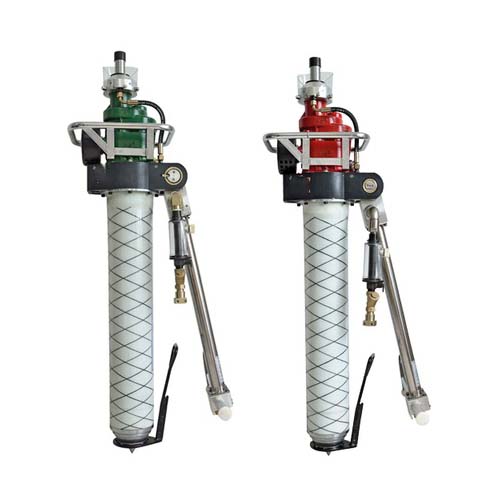

Pneumatic Anchor Drilling Rig

The pneumatic anchor drilling rig is a highly efficient drilling device powered by compressed air, specifically designed for support operations in coal mine roadways and rock formations of medium hardness. It is capable of drilling anchor bolt and cable holes, as well as mixing, installing, and fastening resin cartridge anchor bolts. With this equipment, anchor bolt installation and initial pre-tightening can be completed in one step without the need for additional tools.

Main Features of the Pneumatic Anchor Drilling Rig

Compact structure and light weight, easy to carry and operate, suitable for work in confined spaces.
Equipped with a high-performance pneumatic motor and smooth gear transmission, offering strong power output, quiet operation, and intrinsic safety against explosions.
High torque and fast rotation speed satisfy the requirements of efficient drilling and rapid installation.
Simple daily maintenance, low failure rate, and outstanding durability, making it suitable for long-term continuous operation.

Application Fields

The pneumatic anchor drilling rig is widely used in coal mine roadways, tunnel support, and anchor bolt/cable construction in rock roadways. It is especially suitable for underground environments with high explosion-proof requirements and limited working space, effectively improving the efficiency and safety of anchor bolt installation.

pneumatic anchor drilling rig for tunneling and mining

Item

Unit

TB-120-2.7

TB-130-2.8

TB-130-3.2

TB-130-3.6

TB-130-4.2

Working Air Pressure

Mpa

0.4-0.63

Rated Rotation Speed

r/min

220

206

240

265

310

Rated Torque

N.m

120

130

Stall Torque

N.m

210

220

260

220

280

No-load Rotation Speed

r/min

≥560

≥540

≥580

≥720

Maximum Output Power

2.7

2.8

3.2

3.6

4.2

Air Consumption

cubic meters per minute

4.4

4.5

5.0

6.5

Maximum Thrust

7.9

Flushing Water Pressure

Mpa

0.6-1.2

Noise

dB(A)

≤95

Drill Tail Connection Size

S=19, 22

Anchor Drilling Rig Model Number

Type A

Type B

Type C

Note: Other heights of drilling rigs can be customized according to the height of the coal mine roadway.

Maximum Height of Complete Machine

2457±50

3057±50

3657±50

Minimum Height of Complete Machine

1126±50

1276±50

1426±50

Weight

The pneumatic anchor drilling rig is powered by compressed air and specially designed for rock bolting support and rock reinforcement in underground projects such as tunnels, mines, and roadways. It features a compact structure, easy operation, intrinsic safety, and strong adaptability.

Description
Technical Parameters

Description

Technical Parameters

pneumatic anchor drilling rig for tunneling and mining
Item	Unit	TB-120-2.7	TB-130-2.8		TB-130-3.2		TB-130-3.6		TB-130-4.2
Working Air Pressure	Mpa	0.4-0.63	0.4-0.63		0.4-0.63		0.4-0.63		0.4-0.63
Rated Rotation Speed	r/min	220	206		240		265		310
Rated Torque	N.m	120	130		130		130		130
Stall Torque	N.m	210	220		260		220		280
No-load Rotation Speed	r/min	≥560	≥560		≥540		≥580		≥720
Maximum Output Power	kW	2.7	2.8		3.2		3.6		4.2
Air Consumption	cubic meters per minute	4.4	4.5		5.0		5.0		6.5
Maximum Thrust	kN	8	8		8		8		7.9
Flushing Water Pressure	Mpa	0.6-1.2	0.6-1.2		0.6-1.2		0.6-1.2		0.6-1.2
Noise	dB(A)	≤95	≤95		≤95		≤95		≤95
Drill Tail Connection Size	mm	S=19, 22	S=19, 22		S=19, 22		S=19, 22		S=19, 22
Anchor Drilling Rig Model Number		Type A		Type B		Type C		Note: Other heights of drilling rigs can be customized according to the height of the coal mine roadway.
Maximum Height of Complete Machine	mm	2457±50		3057±50		3657±50
Minimum Height of Complete Machine	mm	1126±50		1276±50		1426±50
Weight	Kg	47		50		57
