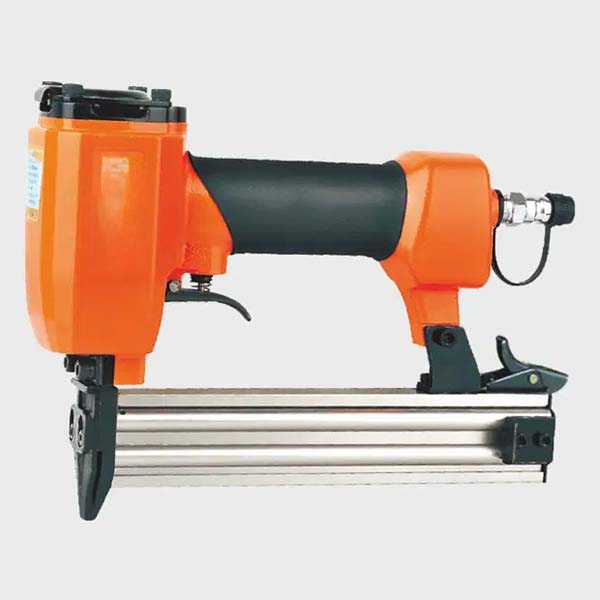

pneumatic brad nailer

pneumatic brad nailer for fixing of decorative plywood

Pneumatic brad nailer is a widely used in the decoration, furniture manufacturing and other industries, mainly used for fast and accurate nailing.

Contact Us
Description

Through compressed air drive, the straight brad nailer can greatly improve work efficiency, and reduce fatigue and errors from manual operation.

Technical parameters of pneumatic brad nailer:

  • Order No.: FN30
  • Weight: 1.25kg
  • Dimensions: 64x165x240mm
  • Number of nails that can be loaded: 100
  • Use of air pressure: 4 to 7kg/cm²
  • Diameter of the air tube to be used: 6mm

Characteristics of the pneumatic brad nailer:

  1. Light weight: Weighing only 1.25kg, making it suitable for long periods of operation without fatigue.

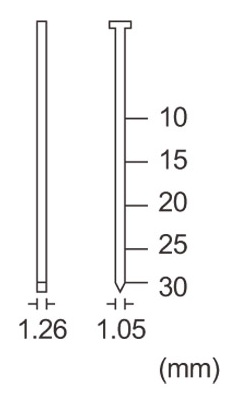

    pneumatic brad nailer

  2. Compact design: Dimensions of 64x165x240mm, compact and easy to maneuver and store.
  3. Large-capacity nail compartment: Up to 100 nails can be loaded at one time, reducing frequent nail loading and improving efficiency.
  4. Moderate air pressure requirements: Uses air pressure ranging from 4 to 7kg/cm², suitable for most construction sites and workshop systems.
  5. Standard air tube diameter: Uses 6mm air tube, compatible with a variety of pneumatic equipment.

Working principle of pneumatic brad nailer:

The pneumatic brad nailer is powered by compressed air. Air pressure is transmitted through the air tube to the inside of the tool, pushing the piston to move quickly. The movement of the piston drives the nails in the brad nailer to be propelled and shot into the material. Pneumatic brad nailers work efficiently and accurately, driving nails into the target material rapidly and avoiding the inefficiency of manual nailing. The air pressure can be adjusted to suit different types of materials and job requirements.

Application areas of pneumatic brad nailer:

  1. Decoration industry: Used in plywood and strip board mounting, quickly completing wall decoration, furniture, and wood product fixation.
  2. Furniture manufacturing: Effective for wood assembly and rattan furniture production, providing efficient and accurate nailing to ensure product firmness.
  3. Woodworking workshop: Suitable for all kinds of wood fixing operations; in mass production, it significantly improves efficiency and quality.
  4. Other precision processing industry: Also used for plastic processing, light industrial product splicing, and other precision jobs.
