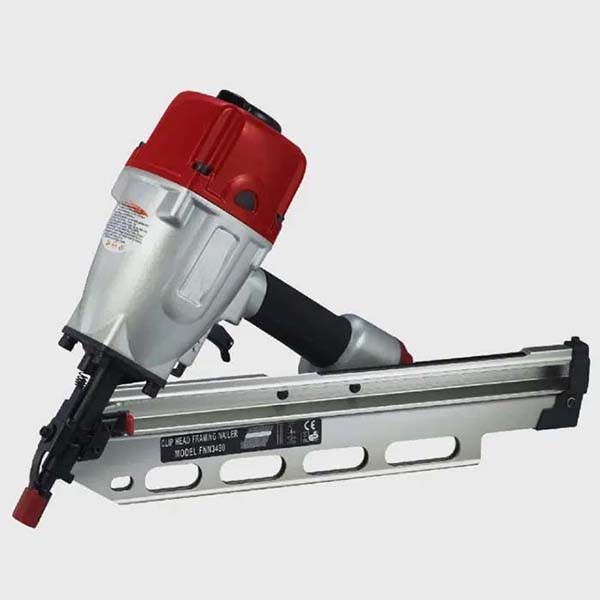

pneumatic angled brad nailer for wood furniture production

Compared with the traditional manual nail hammer, the pneumatic angled brad nailer can complete a large number of nail shooting operations in a short period of time, ensuring that the depth and angle of each nail is consistent and improving the quality of the project.

Technical parameters of the pneumatic angled brad nailer:

• Order No.: FN3490
• Weight: 3.8kg
• Dimensions: 525x162x340mm
• Number of nails to be loaded: 90
• Air pressure to be used: 5 to 7.5kg/cm²

Features of pneumatic angled brad nailer:

1. 360° rotating exhaust cover:
   Adjustable exhaust system allows you to freely direct airflow as needed, reducing dust and keeping the work environment clean and comfortable.



2. Double insurance firing device:
   Double insurance mechanism prevents accidental contact or firing, improving operational safety, especially in high-frequency environments.
3. Knock type continuous firing switch:
   Allows continuous rapid nail shooting, reducing single-trigger delay and improving construction speed.
4. Aluminum alloy die-casting shell:
   Body is made of high-strength aluminum alloy for durability and reduced weight, minimizing operator fatigue during long use.
5. Hard oxidized cartridge:
   Surface is hard oxidized for wear resistance, reduced dust accumulation, and smoother nail feeding, thus extending service life.
6. Top loading nails:
   Top-loading design allows for quick nail changes, reducing downtime and improving work efficiency.

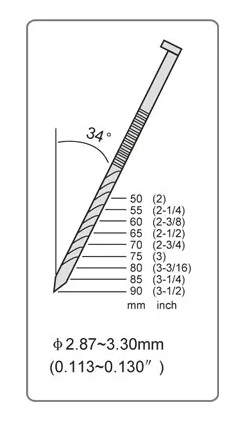

7. For 34 degree paper row nails:
   Compatible with 34° angled paper collated nails, ensuring accurate alignment and shooting angle for stable connections in various construction scenarios.

Working Principle of pneumatic angled brad nailer:

The pneumatic angled brad nailer operates using a pneumatic system for fast and efficient nail shooting:

1. Pneumatic drive: An air compressor provides high-pressure gas to keep the nailer’s storage cylinder pressurized and ready.
2. Trigger and nail firing: When the front end contacts the wood and the trigger is pulled, the safety is released and high-pressure gas pushes the piston, driving the firing pin and rapidly shooting the nail into the wood.
3. Automatic reset: After releasing the trigger, the exhaust system discharges excess gas, the piston resets via spring action, and the tool is ready for the next nail.

This efficient process enables high-volume nail shooting in a short time, boosting productivity and ensuring consistent nail placement.

Application areas of pneumatic angled brad nailer:

1. Large wooden packaging box manufacturing: Ideal for making pallets and freight boxes, quickly nailing boards to enhance structure and durability during transport.
2. Wooden furniture manufacturing: Provides strong nailing for furniture splicing and frame fixing, resulting in tight connections and improved stability.
3. House wooden structure building: Used in wooden house and frame construction to fix beams and supports, enhancing structural impact resistance and efficiency.
4. Wooden fence and fence installation: Ensures tight board fixation for outdoor fences, improving strength and prolonging service life.
