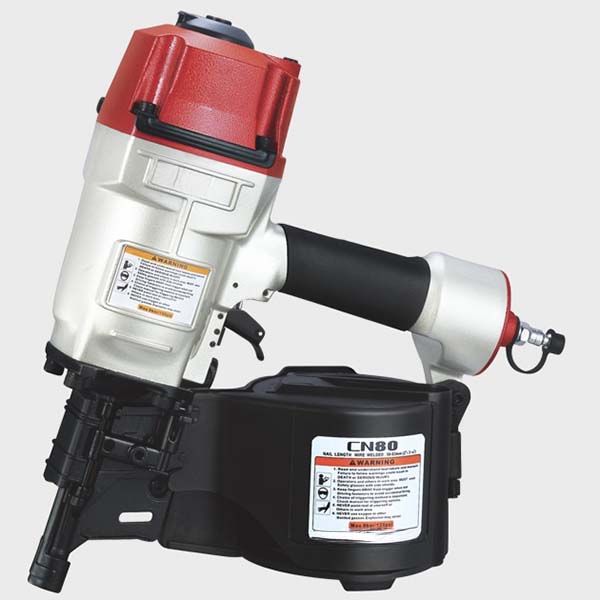

pneumatic siding coil nailer for outdoor wooden structures

The pneumatic siding coil nailer is a pneumatic tool designed to efficiently fasten wood or composite panels.
The nailer is not only widely used in pallet manufacturing, export crate assembly, crate nailing and wood framing fixing, but also in the construction industry for siding installation, wood facade reinforcement, and roof lining laying. With its efficient, accurate and stable nailing performance, it significantly improves production efficiency and construction quality, and is an indispensable professional tool for the woodworking and construction industries.

Technical parameters of pneumatic siding coil nailer

• Order No.: CN80
• Weight: 3.73kg
• Size: 145x347x348mm
• Number of nails: 300 pcs
• Air pressure: 6 to 8kg/cm²
• Tube diameter: 8mm

Features of pneumatic siding coil nailer

1. Large-capacity roll nails loading: Support roll nails supply system, can load hundreds of nails at a time, reduce frequent replenishment, improve the efficiency of continuous operation.



2. High-strength fixing: Suitable for hardwood, plywood, composite boards, PVC panels and other materials, to ensure that the nailing is stable and not easy to loosen.
3. Fast-paced construction: With a single shot and continuous mode, to adapt to different construction needs, to achieve rapid batch nailing, improve production speed.
4. Adjustable nail depth: Through the adjustment device to control the depth of the nail to adapt to different thickness of the material, to ensure the fixing effect.
5. Lightweight design: The use of strong but lightweight metal alloy body to reduce operational fatigue and improve operational comfort.
6. Safety protection function: With anti-empty strike protection to prevent false triggering when there is no nail, while increasing the safety locking device to reduce the risk of accidental operation.
7. Strong durability: Internal use of high-quality pistons, cylinders and firing pin components, suitable for long-time high-intensity operations, reduce maintenance costs.

The working principle of pneumatic siding coil nailer

1. Connect compressed air: Through the air pipe connected to the air compressor, providing a stable high-pressure air source.
2. Trigger: After pressing the trigger, the high-pressure gas quickly enters the cylinder and pushes the piston forward.
3. Impact Nail: The piston drives the firing pin to impact the nail at high speed and nail it into the wood or other materials.
4. Automatic Nail Feeding: The coil nailing system automatically feeds the next nail to ensure consistent, high-speed operation.
5. Reset standby: After releasing the trigger, the air pressure in the cylinder is released and the piston returns to its position, waiting for the next operation.

This cycle process can be completed in a short period of time, so that the nailer can maintain high speed and high precision nailing efficiency in a high load operating environment.

Application areas of pneumatic siding coil nailer

1. Pallet manufacturing: For rapid assembly of industrial transportation pallets to ensure durability and enhance load capacity.
2. Export crates: Wooden crates nailed in line with international transportation standards, to ensure the safe transportation of goods.
3. Crate fixing: Packaging needs of agriculture, food, chemical and other industries, providing strong nailing solutions.
4. Wood framing erection: Widely used in building construction, woodworking furniture manufacturing, fencing and trellis erection.
5. Siding installation: Used for fast fixing of wood siding, PVC decorative panels, composite walls and other materials to improve construction efficiency.
6. Construction and decoration: For roof lining, exterior wall sealing, floor laying, wood structure reinforcement and other projects.
7. Outdoor wood structure: Suitable for outdoor projects such as gazebos, decks, garden fences, wood decks and other outdoor projects to ensure stability and durability.
