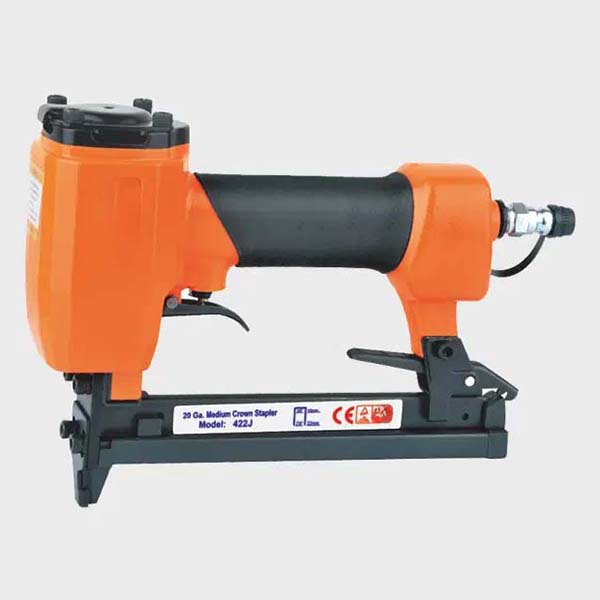

pneumatic staple gun

pneumatic staple gun for the home decorating industry

With its lightweight design and powerful pneumatic drive system, the pneumatic staple gun provides reliable and precise nailing in a fast production environment, and is widely used in sofa and chairs, fixing of leather and fabric, ceiling decorations, and nailing of the outer layer of wooden boxes.

Contact Us
Description

Pneumatic staple guns are designed to ensure comfort and flexibility when working and have become a must-have tool in many industries.

Technical Data of the Pneumatic Staple Gun

  • Order No.: 422J
  • Weight: 1.3kg
  • Dimensions: 64x165x240mm
  • Number of nails: 100
  • Air pressure: 4 to 7kg/cm²
  • Tube diameter: 6mm

Features of Pneumatic Staple Gun

  1. Compact and lightweight: The weight of the tool is only 1.3kg, the size of 64x165x240mm, with a very compact and lightweight design, convenient for the operator to use for a long time without feeling fatigue.

    pneumatic staple gun

  2. Efficient Pneumatic Drive: The pneumatic staple gun utilizes an air pressure range of 4 to 7kg/cm², which can provide enough power to complete fast nailing tasks. The compressed air pushes the internal piston and nailing mechanism to ensure the accuracy of each nailing.
  3. Large-capacity nail bin: 100 nails can be loaded at a time, which reduces the need for frequent nail replacement operations and improves work efficiency, suitable for mass production environments.
  4. Accurate nailing: Pneumatic staple gun with good control, nails can be uniformly and accurately nailed into the target material, will not cause material damage or excessive nailing, to ensure that the nailing effect.

The Working Principle of Pneumatic Staple Gun

  1. After triggering the trigger, compressed air flows into the pneumatic system, pushing the internal piston to move.
  2. The piston pushes the nails to fire quickly through the barrel and accurately nail into the target material such as wood, leather or fabric through the muzzle.
  3. The high pressure work of the pneumatic system ensures that each nailing session has enough impact to easily drive into harder materials such as boards and frames.
  4. After each nailing session, the pneumatic system automatically resets itself, ready for the next nailing job.

This system allows the pneumatic staple gun to demonstrate excellent stability and efficiency in a high-frequency use work environment.

Application Areas of Pneumatic Staple Gun

  1. Furniture manufacturing: In the production process of sofas, chairs and other furniture, pneumatic staple gun is widely used in the fabric and leather nailing, to help quickly fix the fabric and core, to ensure that the finished product is beautiful and solid.
  2. Decorative industry: Pneumatic staple gun is also commonly used in the ceiling and bookboard decorative installation. It can efficiently fix the decorative materials to the wooden frame and reduce the damage to the materials, improve the working efficiency and finish quality.
  3. Wooden box production: In the wooden box manufacturing process, pneumatic staple gun can be used for the outer layer of bookboard nailing, to ensure that the box shell is stable, can withstand the transportation process of heavy pressure and collision.
  4. Light industrial and DIY projects: For large-scale woodworking projects or home DIY projects that require efficient nailing, pneumatic staple guns provide a fast and high-precision solution that is especially suitable for woodworking enthusiasts or home studio use.
